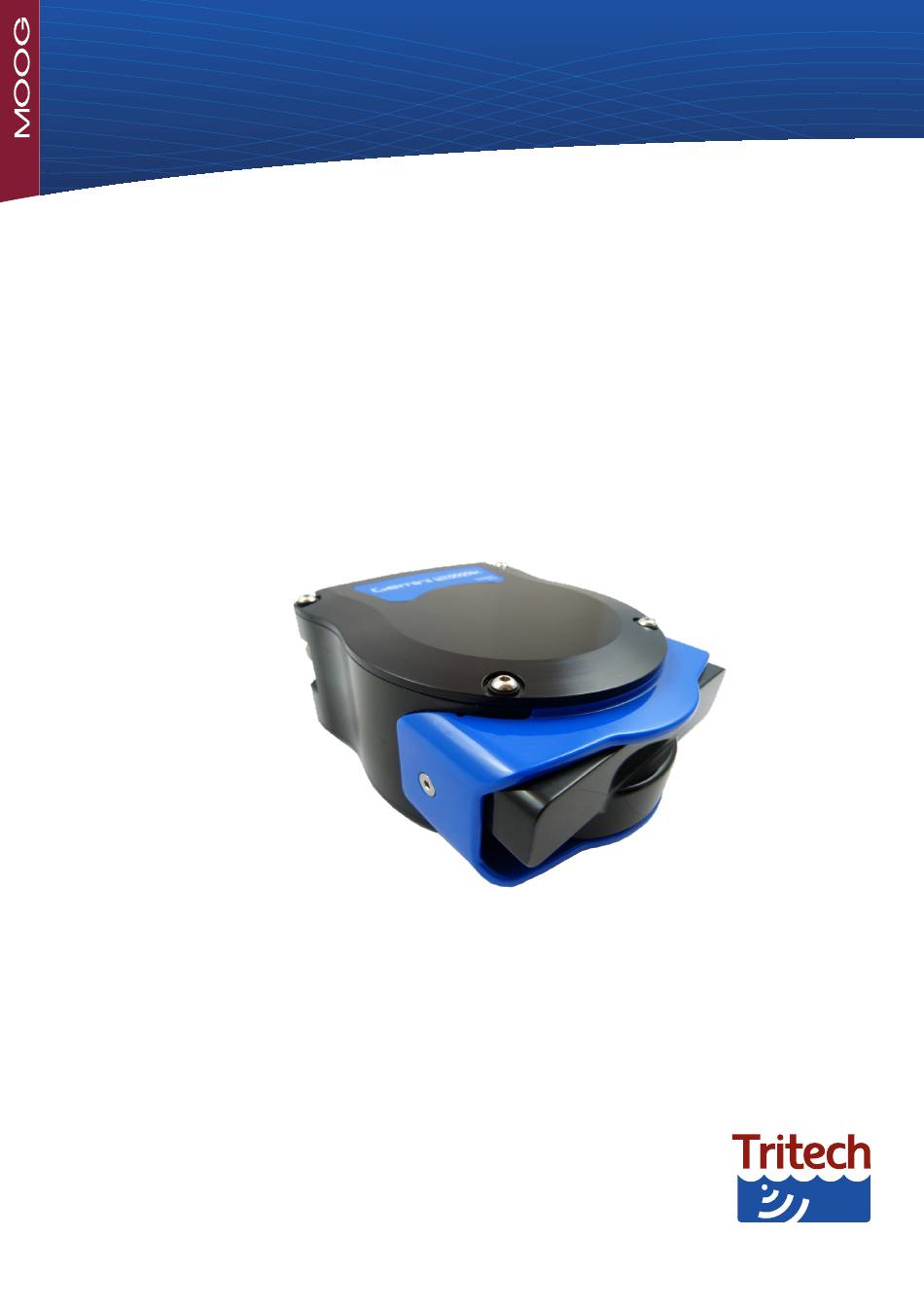

- Page 1 Gemini 1200ik Dual Frequency Multibeam Sonar Product Manual Document No-0746-SOM-00002-02 A Moog Inc. Company Outstanding Performance in Underwater Technology...
- Page 2 This page has deliberately been left blank.
- Page 3 Westhill, Aberdeenshire AB32 6JL, UK Telephone +44(0)1224 744 111 Email tritech-support@moog.com Website www.moog.com./tritech Prior to contacting Tritech International Ltd please ensure that the following information is available: The Serial Numbers of the product and any Tritech International Ltd equipment connected directly or indirectly to it...
- Page 4 Warning Symbols Throughout this manual the following symbols may be used where applicable to denote any particular hazards or areas which should be given special attention: Note This symbol highlights anything which would be of particular interest to the reader or provides extra information outside of the current topic. Important When this is shown there is potential to cause harm to the device due to static discharge.
-
Page 5: Table Of Contents
Table of Contents Contents Introduction Technical Specifications ............ 2 Installation Hardware Installation ............4 Mounting Options ..............4 Diver Mask & Helmet Mounting Option ....5 Diver Mount Display (DMD) ........... 5 Electrical Installation Power Supply Requirements.......... 6 Electrical Connections ............6 Connector Maintenance Guidelines ...... -
Page 6: Introduction

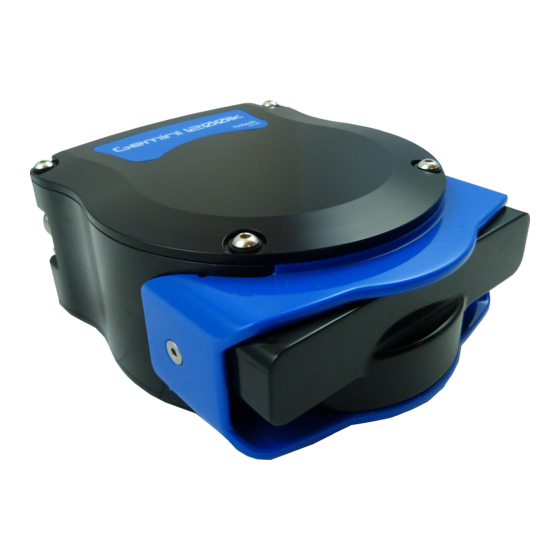

1. Introduction The Gemini 1200ik is a dual frequency 2D imaging sonar offering the opportunity to choose the benefit of either longer acoustic ranges or higher resolution imagery between the Lower & Higher frequency channels. It is a multibeam sonar, offering a 120° field of view on both the Low frequency and High frequency channels with update rates of up to 65Hz (30Hz typical - range dependant) giving rapid feedback to the user. -
Page 7: Technical Specifications
Technical Specifications Physical Specifications Gemini 1200ik Depth rating 350m Weight in air 1.46kg Weight in water 0.50kg Operating Temperature -10°c to 35°C Storage Temperature -20°C to 50°C 0746-SOM-00002 - 02 © Tritech International Ltd. - Page 8 Acoustic Specifications Operating frequency 720kHz 1200kHz Angular resolution 1.0° acoustic, 0.25° effective 0.6° acoustic, 0.12° effective Range 0.1 m – 120 m 0.1 m – 50 m Number of beams 1024 Horizontal Beam Aperture 120° Fwd 65° or 120° Vertical Beam Aperture 20°...
-
Page 9: Installation
2. Installation Hardware Installation The sonar is typically mounted with the receiver element on the top. The transmit and receive elements are arranged such that they are angled at ± 10° about the horizontal axis which should be taken into account when mounting the Sonar. -
Page 10: Diver Mask & Helmet Mounting Option
Diver Mask & Helmet Mounting Option The 1200ik can also be mounted on a variety of diver helmets and masks with the use of our sonar mounting kits which are available for purchase. Examples of some of those covered are: Kirby Morgan, Gorski, OTS &... -
Page 11: Electrical Installation
3. Electrical Installation Power Supply Requirements The sonar requires a regulated and smoothed DC power supply between 19V and 74V. Power is normally supplied via the vehicle while in service or can be supplied via an external PSU as part of a deck test kit. WARNING Power should only be supplied to the Gemini through the MAIN port. -
Page 12: Connector Maintenance Guidelines
Connector Maintenance Guidelines Mating surfaces should be lubricated with 3M Silicone Spray or equivalent, DO NOT GREASE. Connectors must be lubricated on a regular basis. Clean plugs and receptacles with soap and fresh water. If using alcohol or IPA to clean out the connector take care that it does not come into contact with any other part of the sonar. -
Page 13: Genesis Comms Setup
4. Genesis Comms Setup The Genesis software package from Tritech allows the control, configuration and display of Tritech imaging and survey sensor data from within a single software environment. The Following section will guide you through the process of setting up your system to communicate with your chosen devices. Main GUI window Devices are automatically added into Genesis as they are connected to the system via the Ethernet or Tritech... - Page 14 This page has deliberately been left blank.
