AMX MET-ECOM-D Installation Manual

Overview

The MET-ECOM-D Metreau Entry Communicator with Display (FG2180-05-cc) can be
placed at entry points of homes, condos and hotels to provide audio/video
communications with anyone at a door or gate - all over IP. Any AMX Modero
intercom-enabled touch panel can interface with the Metreau Entry Communicator and
allow residents to open doors, gates and more.

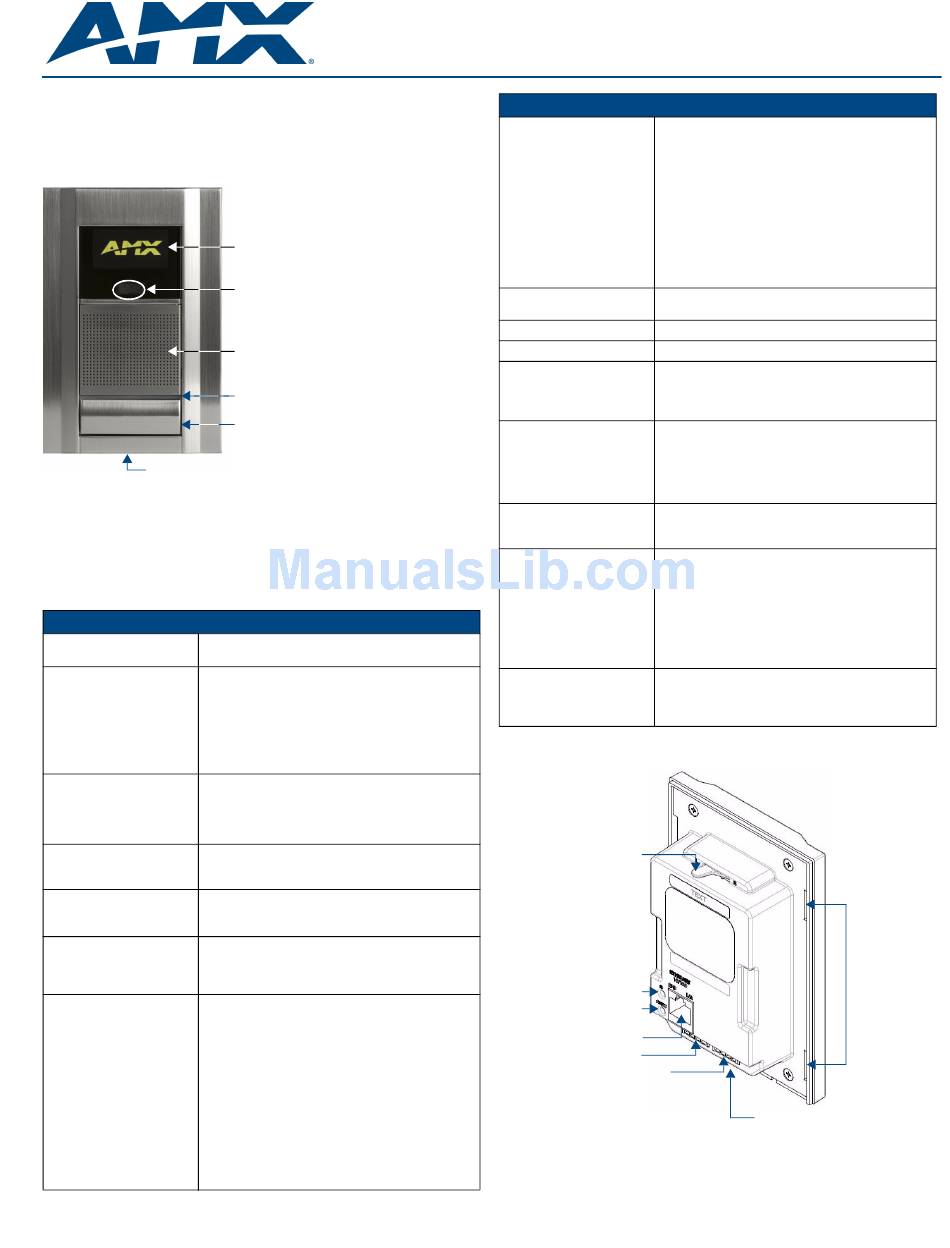

Microphone

FIG. 1

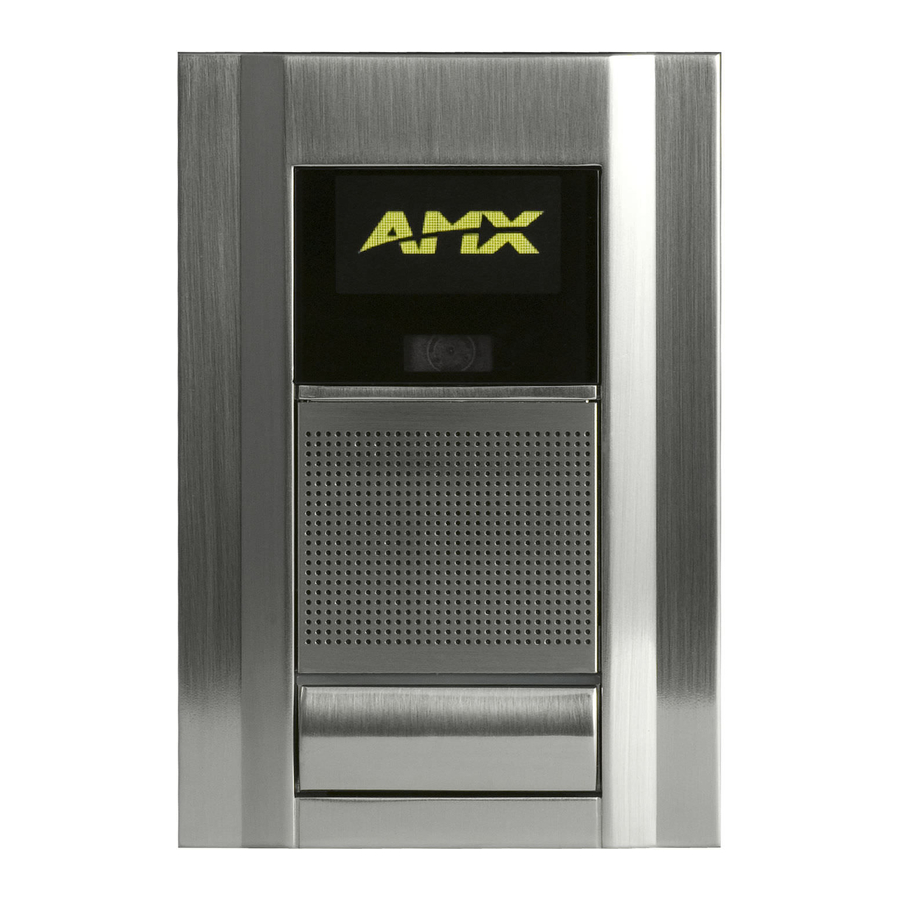

MET-ECOM-D Metreau Entry Communicator with Display
Refer to the Metreau Entry Communicators Operation/Reference Guide (available
online at www.amx.com) for additional installation details and instructions on
positioning the integrated video camera, using the Configuration Manager, using the
full-duplex intercom, and NetLinx Programming information.
Note: The MET-ECOM-D is intended for installation in interior or protected
environments.

Product Specifications

MET-ECOM-D Specifications
Power: • PoE powered – no local Power Supply needed
• IEEE 802.3af Compliant

Front Panel Components:

• OLED Display

• Integrated Color Video Camera

• Speaker

• Dual Color LED Status Bar: (Yellow/ Red) can be used
to provide feedback, to attract attention for action, or as
general indicator.
• Pushbutton (Doorbell)
• Microphone
OLED Display: • 4-bit Gray Scale
• 1.6" Diagonal Display
• 180° Viewing Angle
• 2000:1 Contrast Ratio
• Unit stores up to 50 .bmp images
Integrated Color Video • QVGA 320 x 240
Camera: • Supports Motion JPEG (MJPEG) and H.263 codecs.
• Viewing Angle: 42°
Speaker: • 8 Ohm, 2W
• 80dB SPL (sound pressure level at 1 meter)
• Meets G.711 sound standard
Microphone: • -40 dB sensitivity, built-in echo cancellation (telephone
quality)
• Full duplex communication
• VoIP Telephony

Rear Panel Components:

• Camera Viewing Angle Adjustment
• Ethernet Port - 10/100 Ethernet with PoE. LEDs show
communication activity, connection status, speeds, and
mode information:
SPD (speed) - Green LED lights On when the
connection speed is 100 Mbps and turns Off when the
speed is 10 Mbps.
L/A (link/activity) - Orange LED lights On when the
Ethernet cables are connected and terminated
correctly, and blinks when receiving Ethernet data
packets.
• ID/Reset pushbutton: Push to set the NetLinx ID
(Device only) assignment for the device. Push and
hold for at least 10 seconds to reset to factory default
settings.
MET-ECOM-D
OLED display
Video Camera
Speaker
Dual Color LED Status Bar (Yellow / Red)
Pushbutton (Doorbell)
Metreau ™ Entry Communicator with Display
MET-ECOM-D Specifications (Cont.)
Rear Panel Components • Status LED: Green LED provides an indication of both
(Cont.): the system status and communication status with the
target Master. 1 blink every 5 seconds indicates there
is currently active communication between the
Metreau unit and a target Master.
• 2 Multi-Purpose I/Os (5V): 2-channel binary I/O ports
for contact closure with each input being capable of
voltage sensing. Input format is software selectable
with interactive power sensing for IR ports.
• 2 Low Voltage Relays (1A contact): 2-channel single-
pole single throw relay ports with each relay being
independently controlled and supporting up to 2
independent external relay devices.
Dimensions (HWD): • 5.364" x 3.594" x 1.559"
(13.62 cm x 9.13 cm x 3.96 cm)
Weight: 0.90 lbs (0.408 kg)
Operating Environment: 32° - 104° F (0° - 40° C)
Mounting: The MET-ECOM-D is installed in several ways:
• 4 screws for hard surface mounting
• 2 expansion clips for pressure mounting
• Using the optional Surface Mount Box
Colors Available: • Black MET-ECOM-BK (FG2180-05-BK)
• White MET-ECOM-WH (FG2180-05-WH)
• Polished Brass MET-ECOM-PB (FG2180-05-PB)
• Antique Brass MET-ECOM-AB (FG2180-05-AB)
• Stainless Steel MET-ECOM-SS (FG2180-05-SS)
• Brushed Pewter MET-ECOM-BP (FG2180-05-BP)
Included Accessories: • Installation Kit (FG039-12) - includes front mount
flange, 4 installation screws (#4-40 x 3.12), 2 Phoenix
connectors (female, 3.5mm) and a Ferrite clip.
Other AMX Equipment: • PS-POE-AF Power-over-Ethernet (PoE) power supply
(FG423-80)
• NXA-ENET24 Managed Ethernet Switch
(FG2178-60)
• NXA-ENET24PoE Managed Ethernet Switch, Power
Over Ethernet (FG2178-61)
• Conduit Box Assembly ( FG039-12)
• SMB-MET-ECOMS-B/P Surface Mount Box - Black or
Primed for painting (FG039-14-B/P)
Certifications: • FCC Class B
• CE
• IEC60950
• RoHS
Rear Panel Components
FIG. 2 shows the location of the rear panel components for the MET-ECOM-D.
Camera Viewing
Angle Adjustment
ID/Reset pushbutton
STATUS (green LED)
Ethernet Connection
2 Multi-Purpose I/Os (5V)
2 Low Voltage Relays (1A Contact)
FIG. 2
Metreau Entry Communicator (rear panel)
Installation Guide
Mounting Slots
(2 on each side)
Mounting Clip
