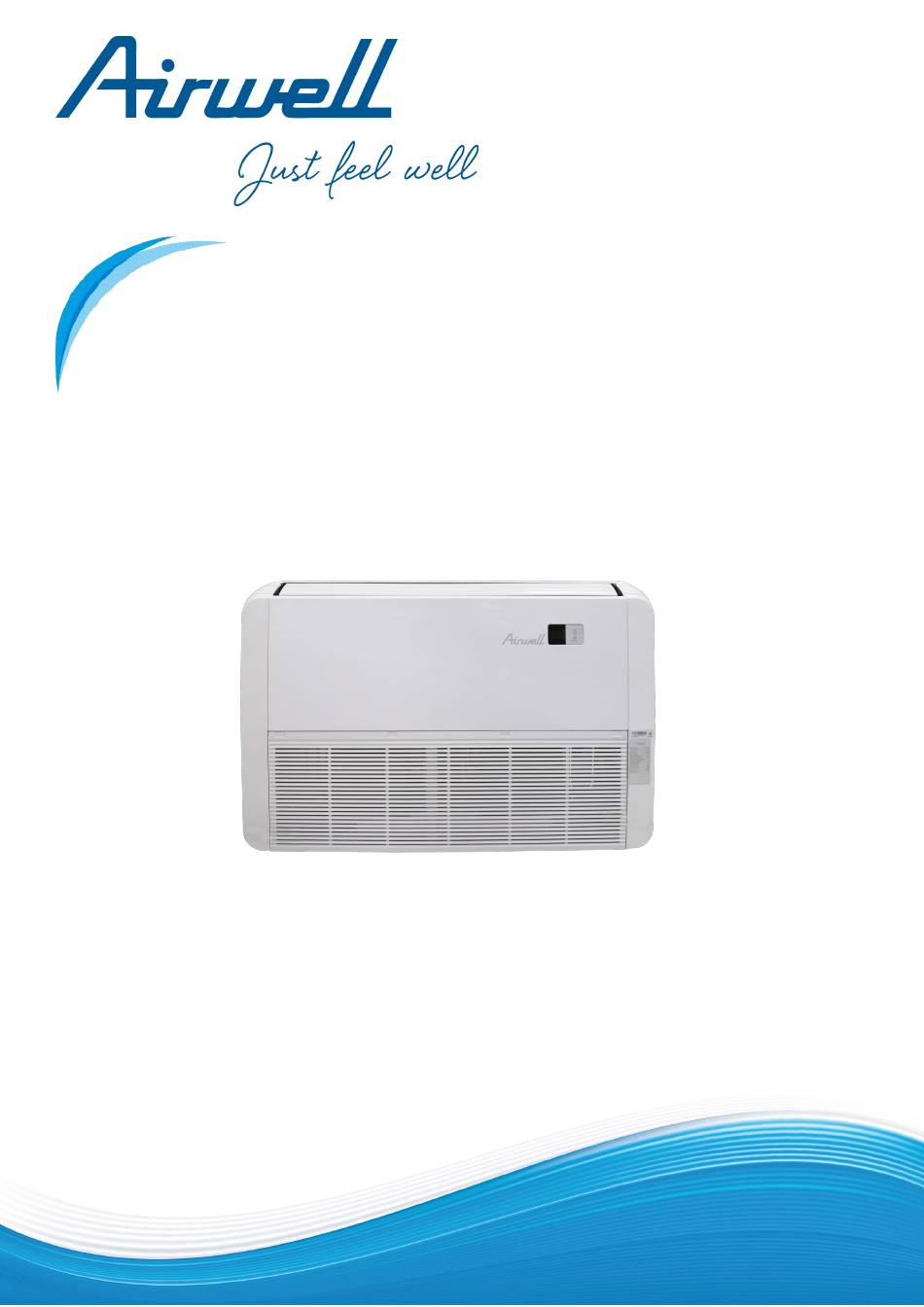

- Page 1 Service Manual FWDB Low temperature floor ceiling English IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. 20.AW.FWDB.18-24.SM.EN.10.05...
-
Page 2: Table Of Contents
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz CONTENT Part1. General Information....................1 1 Model Names of Indoor/Outdoor Units................. 2 2 External Appearance......................3 2 Features..........................5 Part2. Indoor Unit........................6 Floor & Ceiling........................6 1 Features..........................7 2 Specifications........................10 3 Dimensions........................12 4 Service Space......................... -
Page 3: Part1. General Information
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz R32 50Hz Floor ceiling series Part1. General Information 1.Model Names of Indoor/Outdoor Units............2 2.External Appearance..................3 3.Features......................5... -
Page 4: Model Names Of Indoor/Outdoor Units
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 1. Model Names of Indoor/Outdoor Units 1.1 Indoor Units Dimension Net/Gross Model name Power supply (W×H×D) (mm) weight(kg) AW-FWDB018-N91 1050×675×235 26.5/31 220~240V-1Ph-50Hz AW-FWDB024-N91 1050×675×235 26.5/31 220~240V-1Ph-50Hz 1.2 Outdoor Units Dimension Net/Gross Model name Power supply (W×H×D) (mm) -
Page 5: External Appearance

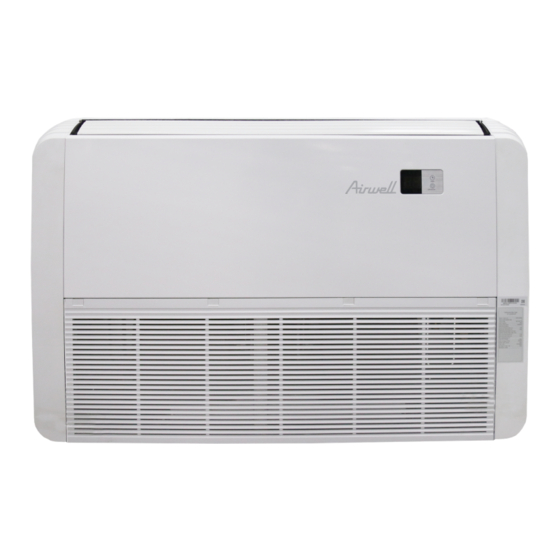

FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 2. External Appearance 2.1 Indoor unit Floor & Ceiling... - Page 6 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 2.2 Outdoor unit AW-YMDB018-H91 AW-YMDB024-H91...
-
Page 7: Features
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 3. Features 4.1 Wide operation range, -15 for cooling and -15 for heating. 4.2Excellent in efficiency, SCOP higher than 4.0, meet the EU’s new energy efficiency standards. 4.3 High quality coils The coil is constructed of advanced inner grooved copper tube and aluminum fins. 4.4 Low operation sound level: Well-known stable and quiet running DC fan motor. -
Page 8: Part2. Indoor Unit
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz Part2. Indoor Unit Floor & Ceiling 1.Features......................7 2.Specifications....................10 3.Dimensions....................12 4.Service Space..................... 13 5.Wiring Diagrams..................14 6.Capacity Table..................... 15 7.Electric Characteristics................18 8. Exploded View....................19 9.Accessories....................21 10.The Specification of Power..............22 11.Field Wiring....................23 12.Troubleshooting.................. -
Page 9: Features
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 1 Features 1. Flexible installation, ceiling suspended and floor standing. 2. Adopting centrifugal fans, higher ESP and longer air flow distance. 3. Two way auto-swing function, built-in two louver step motors, vertical and horizontal air-flow adjustment. - Page 10 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 5. Digital tube display standard. 6. High efficiency DC fan motor, low noise and more comfortable. 7. New upper and lower buckle type wheel case, the upper plastic wheel case can be removed alone, which is convenient adjust the wheel motor. 8.
- Page 11 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 10. Self-diagnostic function and multi protection; Auto-restart function. 11. Standard for wireless controller.
-
Page 12: Specifications
FFWDB Low temperature floor ceiling-Technical Manual R32-50Hz 2 Specifications Model AW-FWDB018-N91 AW-FWDB024-N91 Indoor power supply V/Ph/Hz 220~240/1/50 220~240/1/50 Capacity 2.0-5.3-5.6 2.9-7.0-8.0 SEER Cooling Energy efficiency class kWh/annum Year Consumption Capacity 2.2-5.3-5.8 3.3-7.7-8.5 SCOP Heating Energy efficiency class Year Consumption kWh/annum... - Page 13 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz Operation temp °C 16～32 16～32 -15～50 cooling °C -15～50 Ambient temp -15～30 -15～30 heating °C Application area 20-35 28-50 Notes: 1. Nominal cooling capacities are based on the following conditions: Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 5m (horizontal) 2.
-
Page 14: Dimensions
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 3 Dimensions AW-FWDB018-N91, AW-FWDB024-N91 Model(kBtu/h) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) 1050 18～24... -
Page 15: Service Space
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 4 Service Space... -
Page 16: Wiring Diagrams
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 5 Wiring Diagrams 5.1 AW-FWDB018-N91, AW-FWDB024-N91... -
Page 17: Capacity Table
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 6. Capacity Table Cooling 6.1 AW-FWDB018-N91 MODEL AW-FWDB018-N91 COOLING OUTDOOR TEMPERATURE DRY Indoor Conditions 21ºC 25ºC 30ºC 35ºC 40ºC 45ºC 49ºC Total capacity kW 5.09 5.06 5.03 4.99 4.95 4.91 4.88 21ºC D 15ºC W... - Page 18 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 6.2 AW-FWDB024-N91...
- Page 19 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz Heating 6.3 AW-FWDB018-N91 MODEL AW-FWDB018-N91 HEATING OUTDOOR CONDITIONS Indoor Conditions 24ºC D 15ºC D 7ºC D 3ºC D -5ºC D -7ºC D -14ºC D 18ºC W 14ºC W 6ºC W 2ºC W -6ºC W -8ºC W...
-
Page 20: Electric Characteristics
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 7 Electric Characteristics Indoor Units Indoor Fan Motor Model Voltage Min. Max. AW-FWDB018-N91 220-240V 0.075 AW-FWDB024-N91 220-240V 0.075... -
Page 21: Exploded View
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 8. Exploded View 8.1 AW-FWDB018-N91, AW-FWDB024-N91 Part Name Part Name Left cover 19.1.2 Evaporator output pipe assembly Stepper motor (horizontal) 19.1.3 Evaporator input pipe assembly Bushing Horizontal swing leaf active rod Left panel assembly... - Page 22 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 19.1 Evaporator pre-welded components Installation lifting ears 19.1.1 Evaporator components Temperature sensor group...
-
Page 23: Accessories
RFWDB Low temperature floor ceiling-Technical Manual R32-50Hz 9 Accessories Name Shape Quantity Installation fittings 1. Hanging arm 2. Wired Remote 3. Remote controller holder (optional) Controller 5. Mounting screw (ST2.9×10-C-H) 6. Alkaline dry batteries (AM4) 7. Installation & operation Others instruction manual... -
Page 24: The Specification Of Power
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 10 The Specification of Power Model AW-FWDB018-N91 AW-FWDB024-N91 Indoor power V/Ph/Hz 220~240/1/50 supply Outdoor power V/Ph/Hz 220~240/1/50 supply Power Supply Method From outdoor unit Outdoor unit Power Supply 3×14AWG 3×14AWG Wire Indoor unit Power Supply 4×16AWG... -
Page 25: Field Wiring
RFWDB Low temperature floor ceiling-Technical Manual R32-50Hz 11 Field Wiring Applies to (220-240V/50Hz) 3.5kW, 5.3kW, 7.1kW... -
Page 26: Troubleshooting
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 12 Troubleshooting 12.1 Indoor unit (digital display) LED Display Display Error Description Time light flash Room temperature T1 sensor error Defrost, run, protection light flash Evaporator temperature T2 sensor error Defrost light flash Evaporator outlet temperature T2B sensor error Protection light flash Water full filled error... - Page 27 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 12.2 Wired controller Description Indoor unit capacity HP Indoor unit capacity demand (Reserved) Indoor unit capacity demand after T4 amendment (Reserved) Indoor unit capacity demand after T2 amendment (Reserved) Room temperature T1 value Middle of evaporator temperature T2 value Outlet of evaporator temperature T2B value Condenser temperature T3 value...
-
Page 28: Part 3 Outdoor Units
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz Part 3 Outdoor Units 1.Specifications....................27 2.Dimensions....................29 3.Service Space..................... 29 4.Wiring Diagrams..................30 5.Electric Characteristics................32 6.Operation Limits..................33 7.Sound Levels....................34 8.Exploded View.....................35 9.Troubleshooting...................39... -
Page 29: Specification
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 1 Specifications Model AW-YMDB018-H91 AW-YMDB024-H91 Outdoor power supply V/Ph/Hz 220~240/1/50 220~240/1/50 Power input 300-1495-3220 340-2093-3900 Cooling Current input 1.3-6.5-14 1.5-9.1-17 Power input 250-1380-3335 305-1863-3500 Heating Current input 1.1-6.0-14.5 1.3-8.1-15.2 Max. power input 3680 4000 Max. - Page 30 RFWDB Low temperature floor ceiling-Technical Manual R32-50Hz Signal wiring 4×1.5 4×1.5 Liquid side/Gas side Φ6.35/Φ12.7 Φ9.52/Φ15.88 Refrigerant piping Max. pipe length 15(30) 20(50) Max. high drop 8(20) 10(25) Cooling °C -15~50 -15~50 Ambient temp. Heating °C -15~30 -15~30...
-
Page 31: Dimensions
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 2 Dimensions 2.1 AW-YMDB018-H91, AW-YMDB024-H91 3 Service Space... -
Page 32: Wiring Diagrams
RFWDB Low temperature floor ceiling-Technical Manual R32-50Hz 4 Wiring Diagrams 4.1 AW-YMDB018-H91 (Reserved) - Page 33 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 4.2 AW-YMDB024-H91...
-
Page 34: Electric Characteristics
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 5 Electric Characteristics Outdoor Unit Model Outdoor motor Voltage Min. Max. (kW) AW-YMDB018-H91 220~240V 0.034 AW-YMDB024-H91 220~240V 0.075... -
Page 35: Operation Limits
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 6 Operation Limits Outdoor temperature(℃) Room temperature(℃) Operation mode Cooling operation -15～50 16~32 Heating operation -15～30 16~32... -
Page 36: Sound Levels
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 7. Sound Levels 18kBtu/h-24kBtu/h Microphone Microphone Rear side Front side 1.2 m (body height +1 )/2 m Model Power level dB(A) Pressure level AW-YMDB018-H91 AW-YMDB024-H91 Note: Sound level is measured at a point 1 m in front of the unit, at a height of (Unit body height +1)/2 m. -
Page 37: Exploded View
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 8. Exploded Views 8.1 AW-YMDB018-H91... - Page 38 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz Part Name Part Name Outdoor chassis assy Cut-off valve-C-DN10(T) Inverter compressor Stop valve cover 4-way valve assy Right clapboard parts 4-way valve Big handle 4-way valve coil Electronic control mounting plate Condenser assy Outdoor main PCB Condenser Separating board...
- Page 39 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 8.2 AW-YMDB024-H91...
- Page 40 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz Part Name Part Name Throttle valve assembly 12.4 Outdoor display board Electronic expansion valve assembly Terminal block mounting plate Electronic expansion valve coil Middle separating board Electronic expansion valve Reactor 4-way valve assy Waterproof cover 4-way valve Top cover assembly...
-
Page 41: Troubleshooting
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 9 Troubleshooting 9.1 18K outdoor unit Error code display Error Error Description Description code code Communication fault between IDU Current protection and ODU Bus voltage protection Zero cross detection fault of IDU Low temperature dehumidication fault stall fault of indoor fan T2B (indoor coil outlet temp.) sensor High and low temp. - Page 42 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz Spot check table Running frequency Target frequency Unit A T1 Unit A T2 IDU A fan speed IDU A T2B IDU A EXV opening degree Capacity demand of IDU A Amended total capacity demand Unit B T1 Unit B T2 Unit B T2B...
- Page 43 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 9.2 24K outdoor unit Error code display Code Failure or protection definition Code Failure or protection definition IPM modules protection Comm. failure between outdoor unit and indoor unit T4 temperature sensor failure Anti-freeze protection T5 temperature sensor failure Outdoor fan motor stall Evaporator high temperature protection...
-
Page 44: Part 4 Installation
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz Part 4 Installation 1.Precaution on Installation................43 2.Vacuum Dry and Leakage Checking............44 3.Additional Refrigerant Charge..............46 4.Water Drainage................... 47 5.Insulation Work....................50 6.Test Operation..................... 52... -
Page 45: Precaution On Installation
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 1. Precaution on Installation 1.1. Measure the necessary length of the connecting pipe, and make it by the following way. a. Connect the indoor unit at first, then the outdoor unit. Bend the tubing in proper way. Do not harm them. CAUTIONS: ... -
Page 46: Vacuum Dry And Leakage Checking
RFWDB Low temperature floor ceiling-Technical Manual R32-50Hz 2 Vacuum Dry and Leakage Checking 2.1 Vacuum Dry: use vacuum pump to change the moisture (liquid) into steam (gas) in the pipe and discharge it out of the pipe to make the pipe dry. Under one atmospheric pressure, the boiling point of water(steam temperature) is 100℃. - Page 47 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz Special vacuum dry procedure ②. This vacuum dry method is used in the following conditions: There’s moisture when flushing the refrigerant pipe. Rainwater may enter into the pipe. Vacuum dry for the first time ······ 2h pumping ③.
-
Page 48: Additional Refrigerant Charge
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 3 Additional Refrigerant Charge Caution ● Refrigerant cannot be charged until field wiring has been completed. ● Refrigerant may only be charged after performing the leak test and the vacuum pumping. ● When charging a system, care shall be taken that its maximum permissible charge is never exceeded, in view of the danger of liquid hammer. -
Page 49: Water Drainage
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 4 Water Drainage 4.1Gradient and Supporting 4.1.1 Keep the drainpipe sloping downwards at a gradient of at least 1/100. Keep the drainpipe as short as possible and eliminate the air bubble. 4.1.2 The horizontal drainpipe should be short. When the pipe is too long, a prop stand must be installed to keep the gradient of 1/100 and prevent bending. - Page 50 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 4.3 Upwards drainage (drain pump) For Four-way cassette (compact) For Round-way cassette 4.4 Convergent drainage 4.4.1. The number of indoor units should be as small as possible to prevent the traverse main pipe overlong.
- Page 51 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 4.5 Drainage test 4.5.1Drainage without drain pump After finishing drainpipe installation, pour some water into the water receiver plate to check if the water flows smoothly. 4.5.2 Drainage with drain pump ① Poke the Water Level Switch, remove the cover, use water pipe to pour 2000ml water into the water receipt plate through the water inlet.
-
Page 52: Insulation Work
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 5 Insulation Work 5.1Insulation material and thickness 5.1.1. Insulation material Insulation material should adopt the material which is able to endure the pipe’s temperature: no less than 70℃ in the high-pressure side, no less than 120℃ in the low-pressure side(For the cooling type machine, no requirements at the low-pressure side.) Example: Heat pump type----Heat-resistant Polyethylene foam (withstand above ... - Page 53 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz For construction convenience, before laying pipes, use insulation material to insulate the pipes to be deal with, at the same time, at two ends of the pipe, remain some length not to be insulated, in order to be welded and check the leakage after laying the pipes.
-
Page 54: Test Operation
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 6. Test Operation (1) The test operation must be carried out after the entire installation has been completed. (2) Please confirm the following points before the test operation. The indoor unit and outdoor unit are installed properly. ... -
Page 55: Part 5 Controller
RFWDB Low temperature floor ceiling-Technical Manual R32-50Hz Part 5 Controller 1.Wired Controller................... -
Page 56: Wired Controller
FWDB Low temperature floor ceiling-Technical Manual R32-50Hz 1 Wired Controller Telecommande filaire RCW23... - Page 57 FWDB Low temperature floor ceiling-Technical Manual R32-50Hz...
- Page 58 Consult with the sales agency or manufacturer for details. ATTENTION : Le design et les données techniques sont donnés à titre indicatif et peuvent être modifiés sans préavis. AIRWELL RESIDENTIAL SAS 10,Rue du Fort de Saint Cyr, 78180 Montigny le Bretonneux - France www.airwell.com...
