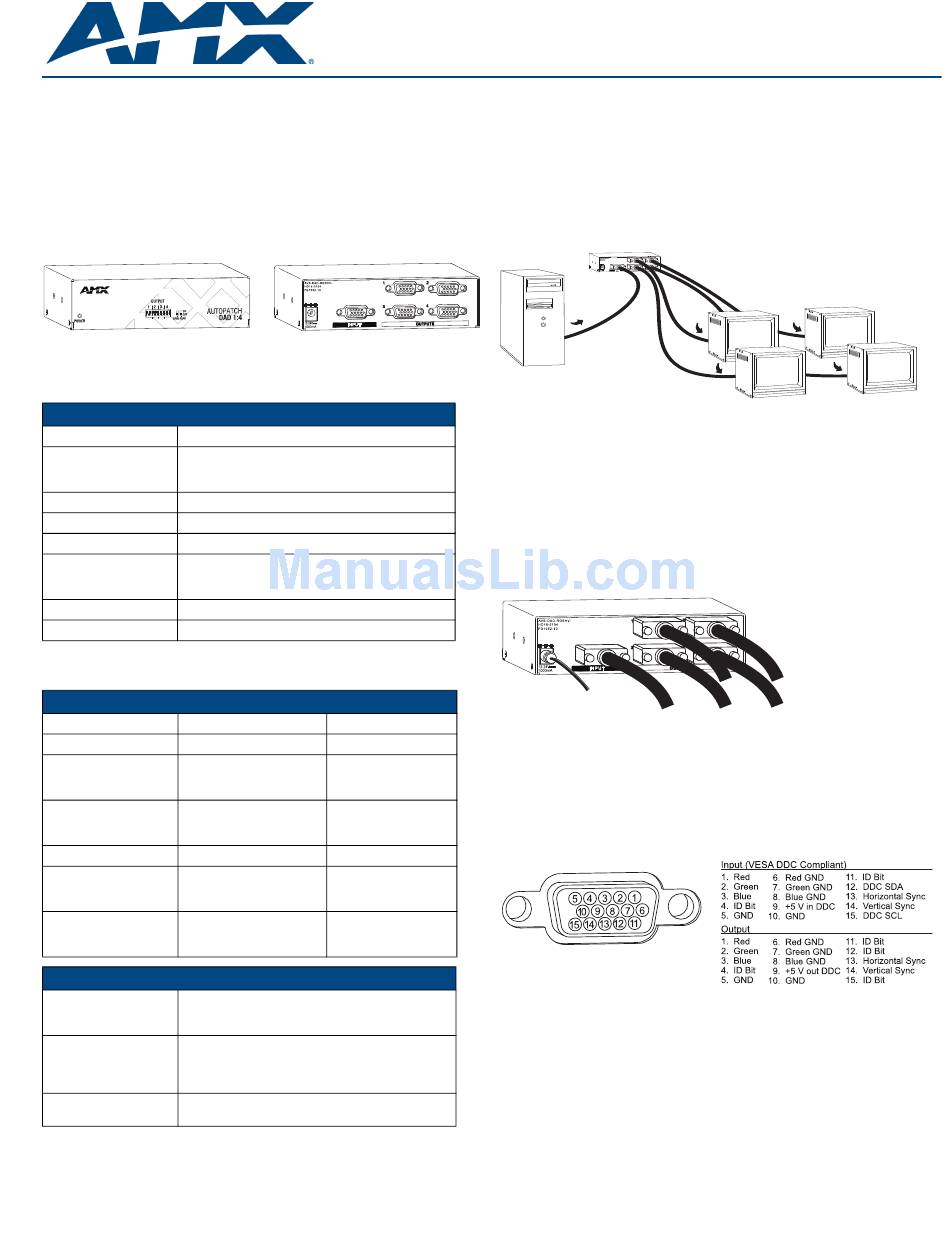

AMX HD-15 Quick Start Manual

Overview
The RGBHV (HD-15) DAD (Distribution Amplifier Driver) Module has one HD-15 input
connector and four HD-15 output connectors for 1:4 distribution of RGBHV analog
signals. The single RGBHV input is distributed to four outputs over standard cable
runs of up to 100 ft. (30.48 m) over VGA cable and up to 250 ft. (76.2 m) using
break-out cable to coax with no additional equipment required.
The input connector is typically cabled to a computer with a VGA graphics card, while
the output connectors are cabled to four display devices (monitors, projectors, etc.).
Each output can be independently adjusted for gain and peaking to ensure the proper
amount of compensation is provided for each cable run. This guide contains complete
information for this product.
FIG. 1
RGBHV (HD-15) 1:4 DAD Module FG1052-10
Product Specifications
General Specifications
Approvals Pending
Power*
Consumption (max.) +12 VDC to +24 VDC, 1 A
Consumption (typical) +12 VDC, 600 mA
Power Connector 2.1 mm DC power jack
Operational Temperature 32° to 110° F (0° to 43° C)
Humidity 0 to 90% non-condensing
Dimensions 5.15 in. (13.08 cm) depth
5.80 in. (14.73 cm) width
1.66 in. (4.22 cm) height without feet
Weight Approximately 1.5 lbs. (0.7 kg)
Connector Type HD-15
* RGBHV (HD-15) DAD Modules use a power supply that is provided with the unit.
RGBHV Signal Specifications
Frequency Response
Signal to Noise Ratio Vin = 0.7 V, 100% IRE
Input Level
Input (max.)
Output (max.)
Input Impedance
Input
Output
Return Loss
Sync Level
Input (max.)
Output (max.)
Sync Impedance
Input
Output
Gain & Peaking** Specifications
Gain
OFF Unity
ON +0.75 dB
Peaking
OFF No peaking
ON 8 dB @ 150 MHz
8 dB @ 300 MHz
Cable Length (max.) VGA cable: 100 ft. (30.48 m)
Break-out cable to coax: 250 ft. (76.2 m)
** Gain and peaking are independent switches that allow the user to turn on or off the
gain and peaking.
AutoPatch RGBHV (HD-15) DAD Module
Installation
Mounting Options
Desktop
V Style Rack Mounting
these versatile modules (contact your AMX representative).
Typical Setup
Source Device
(PC with VGA graphics card)
FIG. 2
Attaching Cables
Optional breakout cables are available for the module; see reverse page.
To attach connectors:
1.
2.
± 3dB, 450 MHz or better
FIG. 3
>65 dB
3.
4.
± 1.75 V
± 1.75 V
Note: The power indicator LED is on the module's front.
75 ohms
HD-15 Module Connector Pinout
75 ohms
-45 dB @ 5 MHz
0 V to +5 V
0 V to +5 V
510 ohms
50 ohms
FIG. 4
Note: 55 mA supplied on output pin 9; power draw not to exceed 50 mA per port.
Quick Start Guide
– Attach the rubber feet (included) to the bottom of the module.
– Mounting brackets and rack trays are also available for
1:4 DAD Module
Typical system setup using 1:4 DAD
Fasten HD-15 connectors onto HD-15 receptacles on the module (FIG. 3).
Plug the desktop power supply into the power jack on the module and into an
AC external power source.
From
To destinations
source
Power
Attach HD-15 input & output connectors and power
Apply power to the source and destination devices.
Adjust DIP switches on front if necessary (FIG. 5 on reverse).
HD-15 input & output module connector pinouts
Destination Devices
HD-15
