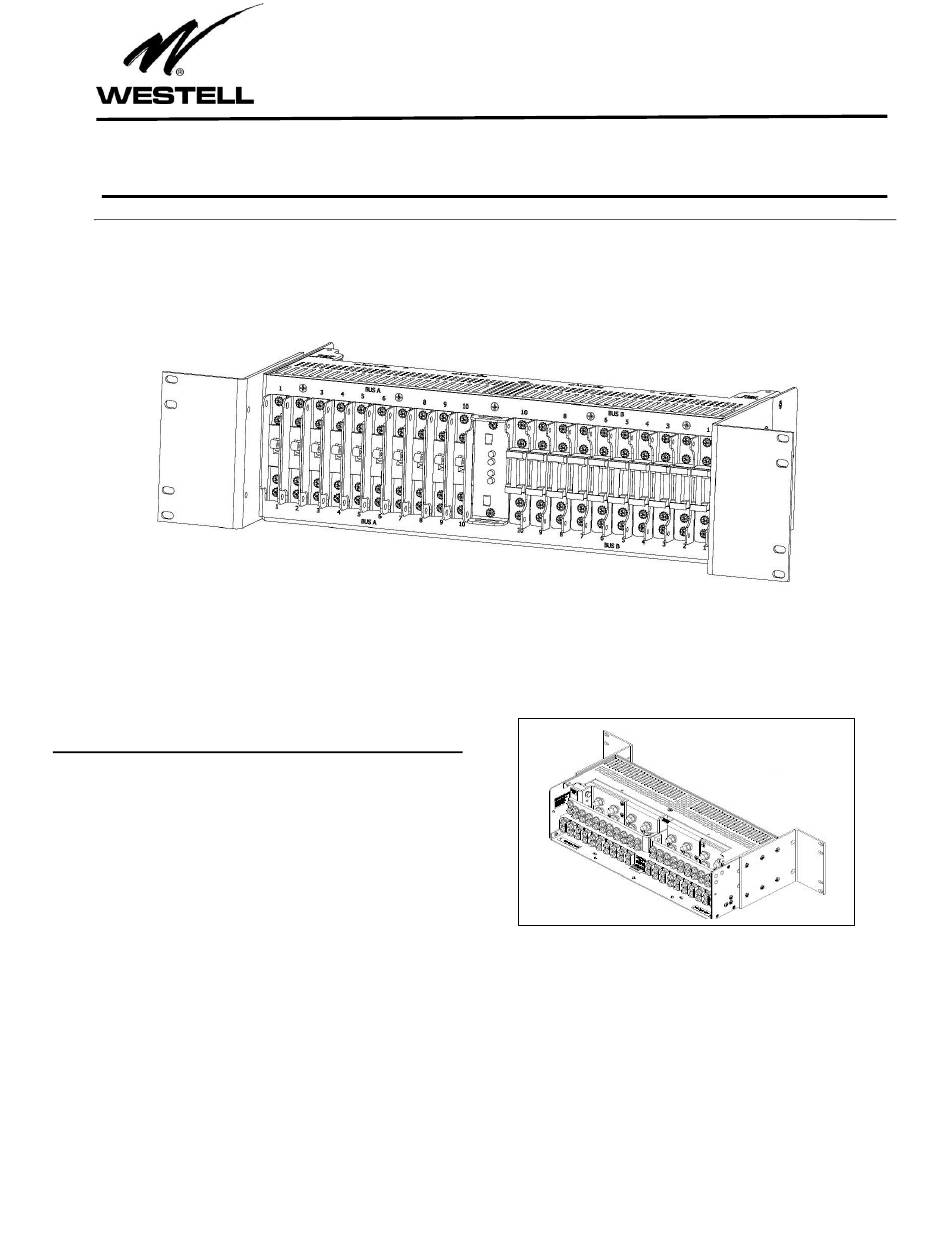

Westell A90-DCP10X10 High Current Universal Fuse and
CONTENTS
FEATURES ......................................................................... 1
1. GENERAL DESCRIPTION ............................................ 1-2
2. APPLICATION............................................................... 2
3. CIRCUIT DESCRIPTION ............................................... 2
4. INSTALLATION ............................................................. 2-4
5. SPECIFICATIONS ......................................................... 4
6. TECHNICAL SERVICES ............................................... 5
7. WARRANTY AND REPAIRS ........................................ 5
8. SCHEMATIC ................................................................. 6
FEATURES
Compatible with +24V, +48V, -24V or -48V dc input
voltages (battery voltages)
Pluggable panel accepts bullet Breakers, TFD
Fuseholders (TLS or TPS fuses), and TPC
Fuseholders
2 busses per panel (600 Amps/bus maximum)
125A max Fuse rating per position (100A load current)
Normal and Alarm LEDs for Bus A and Bus B indicate
power or fuse failure
__________________________________________________________________________________
Page 1 of 6
Breaker Panel
PAGE #s
Two sets of "Form C" relay contacts extend alarm
Replaceable alarm card
Brackets supplied for both 19" and 23" racks, with
High current 3/8" stud inputs (two sets of 3/8" studs
High current 1/4" stud outputs (1/4"studs on 5/8"
UL Safety Listed ANSI/UL 60950-1 and CAN/CSA
Section A90-DCP10X10
030-101868 Rev A, September 2015

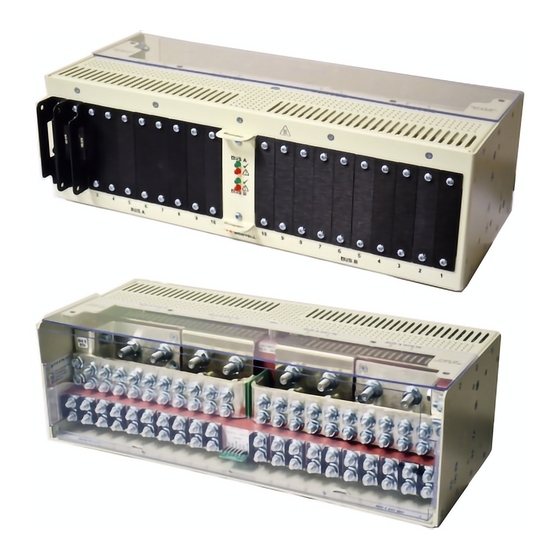

Rear view
conditions for each bus
flush and offset mounting options
on 1" centers) for up to 600A/Input
centers) for up to 100Amps/Output
C22.2 No. 60950-1
Equipment Issue A
1509IARA
Advertisement
Table of Contents
Related Manuals for Westell A90-DCP10X10
Summary of Contents for Westell A90-DCP10X10
-
Page 1: Table Of Contents
Section A90-DCP10X10 Equipment Issue A 030-101868 Rev A, September 2015 Westell A90-DCP10X10 High Current Universal Fuse and Breaker Panel CONTENTS PAGE #s Rear view FEATURES ................. 1 1. GENERAL DESCRIPTION ..........1-2 2. APPLICATION............... 2 3. CIRCUIT DESCRIPTION ..........2 4. -
Page 2: General Description
Each position is 2.2. The A90-DCP10X10 is suitable for installation as part of available for installer connection at the rear of the panel. A a Common Bonding Network (CBN). As well, this product is... - Page 3 Section A90-DCP10X10 030-101868 Rev A terminals in accordance to the National Electrical Code, ANSI/NFPA, and Canadian Electrical code. Hook up the input cables to the input terminals (“BAT” & “RTN” for each bus). Each high current input terminal can accept 2 - two-hole compression (3/8”...
-
Page 4: Specifications
Section A90-DCP10X10 030-101868 Rev A than 80% of their rating (100A max for a 125A fuse, 80A max for 4.10. If you wish to verify the fuse alarm circuit, you can insert a 100A breaker). Fuses and breakers are not included with this a blown fuse into one of the fuse positions. -
Page 5: Technical Services
7. WARRANTY & REPAIRS 7.1 Westell warrants this product to be free of defects at the Replacements will be shipped in the fastest manner time of shipment. Westell also warrants this product to be consistent with the urgency of the situation. Westell will... -
Page 6: Schematic
Section A90-DCP10X10 030-101868 Rev A ________________________________________________________________________________ Page 6 of 6 1509IARA...
