FR1118-P10

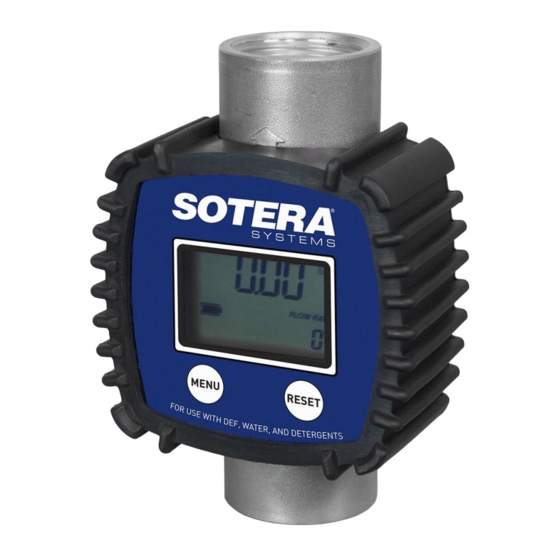

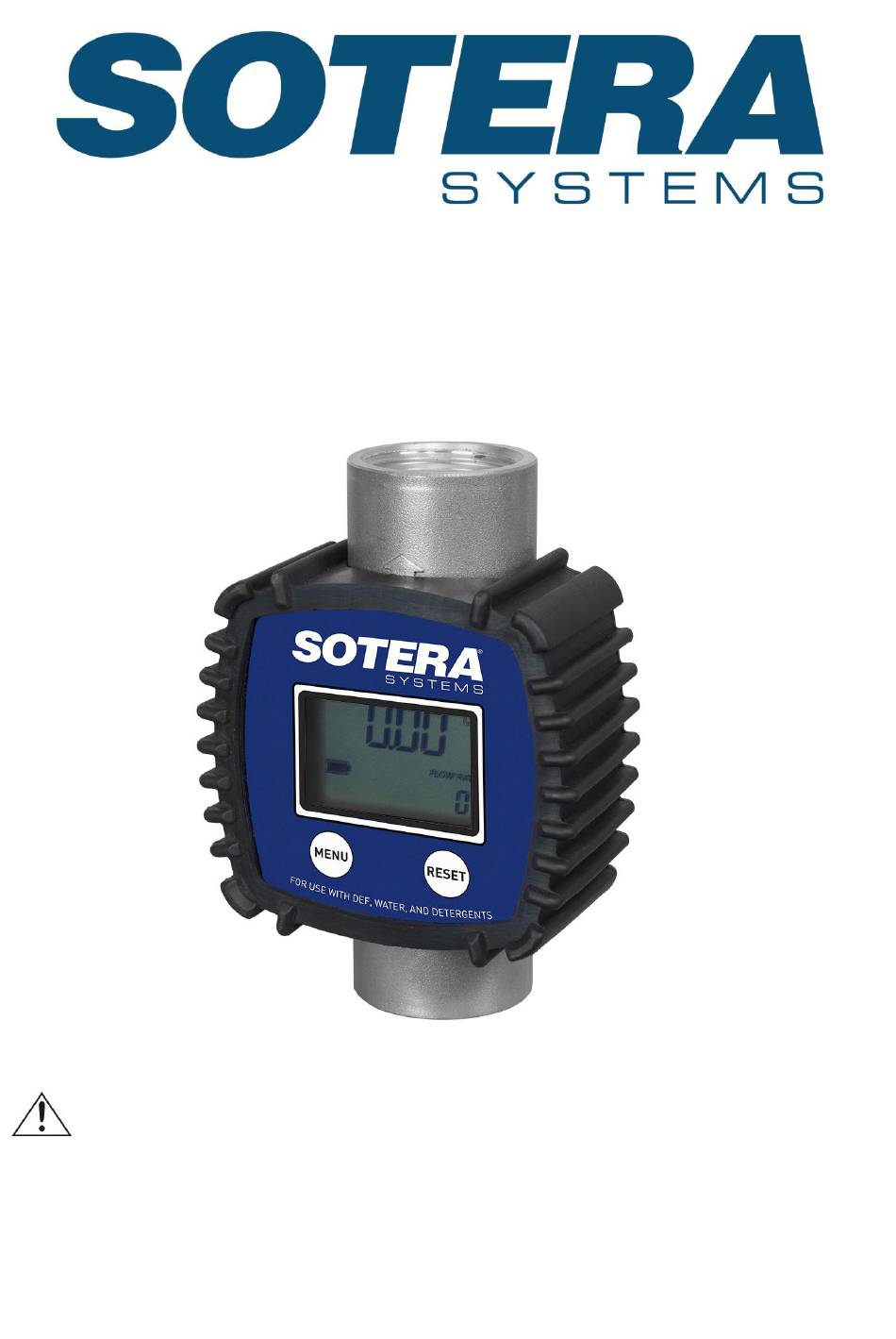

User's Manual
WARNING
Read carefully and understand all INSTRUCTIONS before operating.
Failure to follow the safety rules and other basic safety precautions may result
in serious personal injury. Save these instructions in a safe place and on hand
so that they can be read when required.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR1118-P10 and is the answer not in the manual?

Questions and answers

Related Manuals for Sotera FR1118-P10

Summary of Contents for Sotera FR1118-P10

  • Page 1 FR1118-P10 User’s Manual WARNING Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required.
  • Page 2 1. INTRODUCTION 1.1 Technical Data 1.1.1 The turbine digital meter is designed for use with the following low viscosity fluids: Diesel Exhaust Fluid Water (NOT for human consumption) WARNING! Use of other fluids may cause inaccurate readings and can damage the meter! 1.1.2 Flow Rate: 3-26 GPM, flow rates outside of this range may have reduced accuracy.
  • Page 3 3.1 BUTTON USAGE, CALIBRATION AND MEASUREMENT UNIT CHANGE  Reset the present total (See Fig. 2) When the meter is in standby mode, press the RESET key. The display shows all the segments at once. The meter resets to display “0” on the resettable register. Fig.
  • Page 4 Carefully follow the procedure indicated below. FORMULA Proper correction factor = current correction factor× (actual value / display value) Example: Actual value 20.75 Display value 18.96 Current correction factor 1.000 Proper correction factor 1.000×(20.75/18.96)=1.000×1.094=1.094 Wait for the meter to go into standby (blank screen). With the meter in stand-by mode, reset the resettable total by pressing the “RESET”...
  • Page 5 Wait for the meter to go to standby. Reset the register. Start dispensing into a calibration can. Stop dispensing when 5 gallons of volume is reached. Read the amount displayed vs. the actual amount dispensed into the calibration can. The volume that is displayed on the LCD is the Display Value, not the Actual Value.
  • Page 6 4. Troubleshooting Problem Possible Cause Corrective Action LCD: no indication Bad battery contacts Check battery contacts With reference to paragraph 3.3 & 3.4, Wrong Correction Factor Imprecise check the Correction Factor measurement The meter works below Increase the flow rate until acceptable flow rate has been achieved (3 –...
