MCXD user guiDe
Copyright © 2020 Green-GO

Advertisement

loading
Need help?

Need help?

Do you have a question about the MCXD and is the answer not in the manual?

Questions and answers

Summary of Contents for Green-Go MCXD

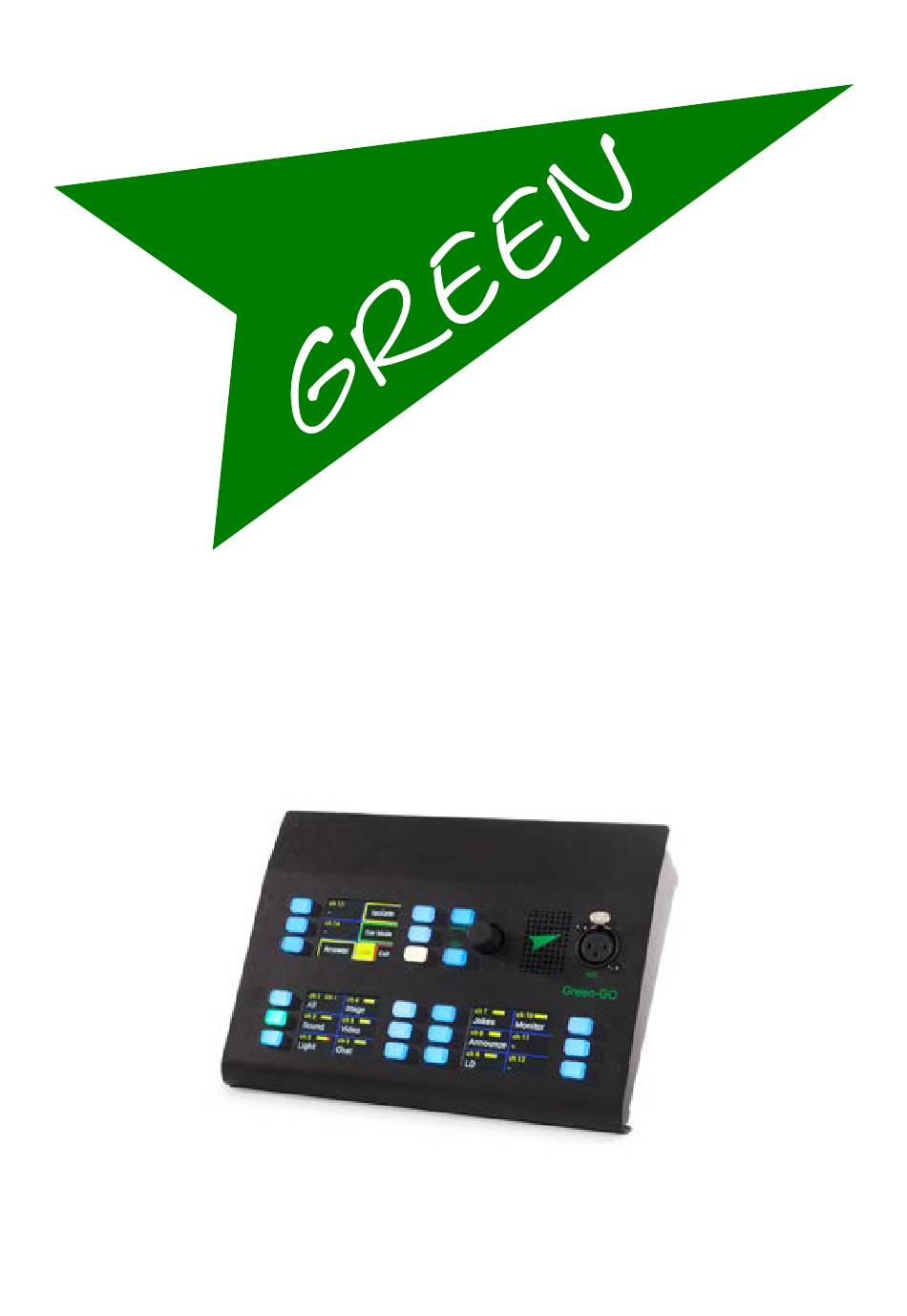

  • Page 1 MCXD user guiDe Copyright © 2020 Green-GO...
  • Page 2: Table Of Contents

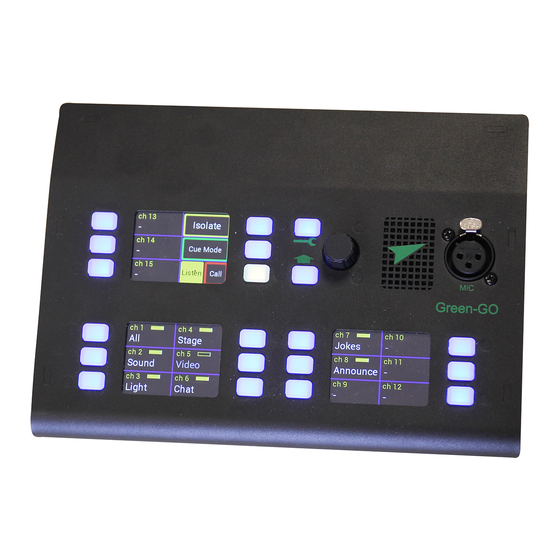

    GGO-MCXD The Multichannel Deskstation gives you easy direct access to all desired stations on the Green-GO network through an interface with 3 TFT touchscreens and 20 Pushbuttons. Apart from the standard functions like Talk, Listen and Call, the deskstation can, amongst other things, send cues, connect to remote Green-GO networks, interface with GPIO, add external audio to the Green-GO network and output audio from the Green-GO network.
  • Page 3: Overview

    Used for external control interfacing. Line Out: Outputs the main audio or a groups audio to an external component or system. Line In: Audio input for integrating external audio as a group in the Green-GO system. Headset connector: For connecting a headset. LAN 1: For connecting to network devices.
  • Page 4: The Main Interface

    MCXD user guiDe The Main Interface Channel Push buttons ch 13 Setup Pushbutto n Isolate ch 14 Pushknob Sound Cue Mode ch 15 Shift Pushbutton Listen Call Light ch 1 ch 4 ch 7 ch 10 Stage Stage ch 2...
  • Page 5: Basic Functions Explained

    – Red /white flashing: Incoming Alert received on the channel. Basic Functions Explained – Audio Profile It is possible to create an Audio Profile in the Green-GO Control software containing the Desk- station settings. The profile is contained in the configuration file and can be loaded on to any Deskstation. – Configuration fileThe configuration file is a system configuration file containing information about Users, Groups and their interaction. For a beltpack to communicate with the other Green-GO devices on the net- work, they need to have an identical configuration file loaded. The configuration file can be loaded/cloned from another device, the Factory default file can be chosen or a custom config file can be created in the Green-GO Control software. – Clone config The configuration file can be cloned from another Green-GO device on the network that con- tains the desired file. – Connections By setting the connection type the Deskstation can work in different setups. It can be a Master unit controlling extensions, it can be connected to a remote site via a bridge or it can operate in normal setup.
  • Page 6 MCXD user guiDe – scroll to select the desired Configuration file. The Factory default configuration file can be found at the end of the list. – Click ’Enter’ to load the Configuration file. Assign channels – You can assign Users or Groups to any of 32 available channels. – Enter the Setup menu. Scroll to ’Channel Assignment’ and click ’Enter’ . – Scroll to the channel you want to assign a Group or User to and click ’Enter’ Scroll to ID and click ’Enter’ .
  • Page 7 MCXD user guiDe Now your presets will look like this: - 1st preset: IN: Front Mic – Mic Pwr: On - Thld: -35dB - 2nd preset: IN: Headset – Bias: Off – Thld: -20dB So in short, select the preset to edit, make your changes and they will automatically be saved. Exit the menu to select the desired Audio Input..
  • Page 8 MCXD user guiDe Listen /Listen Mode When Listen is selected, which is done by either pressing on it on the TFT Touchscreen or by using the associated Listen/Call toggle pushbutton, it is possible to Mute/Un-mute and adjust the individual channel volume. See above: ’Adjust the Volume and Mute’...
  • Page 9: Gpio

    – start the software – click Scan to search for the MCXD on the network – Next select the MCXD or multiple MCXD’s and click on Update. – This will open a file selection window, browse to select the firmware for the device and click on Open, the updating of the firmware now starts. – After the update is successful, the device will reboot.
  • Page 10: Reference

    MCXD user guiDe Conditions that can be used as triggers are: – Active: When Activity occurs on any channel or a specific channel as set in the setup menu. Call: A Call re- ceived on any channel or a specific channel as set in the setup menu – Cue Receive: When receiving a Cue either a Hold, Attention, Go or either one of two; e.g. Hold/Att or Att/Go it will trigger either continuously or as a pulse/blinking.
  • Page 11 Cues can be sent from multichannel stations like the MCXD or an MCX. Cue’s can be sent to Users or Groups. The cues can be sent as either a direct GO cue or as a Standby/Attention Cue + a GO cue. For more information see the ’How To’ section.
  • Page 12 MCXD user guiDe Latch (also used in connection with Momentary) A latch press will toggle the current talk state. A simple button-press to enable and another button-press to disable. Listen Mode If in Listen mode the user has the option to listen to/mute a channel. If the Channel Pushbutton has been set to Talk/Call/Cue it is necessary to be in Listen Mode to allow the Channel Pushbutton to work as a Talk button.
  • Page 13: The Setup Menu

    MCXD user guiDe Set User - When starting to use a beltpack or other station, you can choose which User profile to use. The User profile has been set up in the Configuration File. In the Factory Default Configuration file you can find Users like Stagemanager, FOH, Monitor, Director etc. Choose the one that fits best. SideT Side Tone is the users own voice. A volume can be set for how high the users own voice should be in his/her own speakers/ headset. This can be done in the Setup Menu: Audio settings/SideT Talk - Is to enable your microphone audio to be transmitted to an assigned channel.
  • Page 14 MCXD user guiDe – Connection: Choose Normal operation, Master+extensions setup, Remote connection and the settings. – Clone Config: Clone a Configuration File from another Green-GO device or load the Factory Default – Device Options: Options specifically for your device’s interface. – Network: Choose between dynamic or manual network configuration – Info: Information about your Deskstation and where you can choose to reset your Deskstation settings. The Setup Menu Tree –...
  • Page 15 MCXD user guiDe – Audio Settings – Exit//Go back – Load Profile//Load an audio profile from the configuration file or choose the default. – Exit//Go Back – SideT: SideTone //Set the volume for how high the user should hear himself – Default: 0dB Range: MUTE - 0dB – Auto/AutoGain: //Set the dynamic amplification to avoid distortion – Default: Medium Range: Slow - Off If set to ‘Off’ the MaxG, Max Gain, option is replaced with Gain –...
  • Page 16 MCXD user guiDe – Default: Off Range: Off, Channel 1, Channel 2…….Channel 32 – Cue Mode: //Set the response on Cue signals – Default: Normal – Range: – Ignore//Do nothing – Auto Answer//Automatically sends a ‘cue received’ confirmation to the sender – Normal//Requires the user to send a confirmation or reply – Output Cue Time: //Set the length of time for the GO cue to be transmitted.
  • Page 17 MCXD user guiDe – Send Hold Chn 1-32 // Send a Hold cue to the selected channel – Send Go Chn 1-32 // Send a Go cue to the selected channel – Normally Closed/Normally Open // Set the Normal state of the switch –...
  • Page 18 – Info //Shows information about the unit – Name set //The Name of the Unit. Can be set in the Green-GO Control or Connection software – Access Protection //Shows the access protection that has been set in the Green-GO Control software –...
  • Page 19: Specifications

    MCXD user guiDe – Mac: XX:XX:XX:XX:XX:XX //Device Mac address. – Reset All Settings //Resets all IP, User, Audio and Channel settings Specifications Physical: Dimensions: 220mm x160mm x45mm Weight: 975g Connectors: 1x Neutrik XLR Male 4 pin, 2 x Neutrik Female 3 pin,...
  • Page 20 MCXD user guiDe page 20 of 20 Copyright © 2020 Green-GO...
