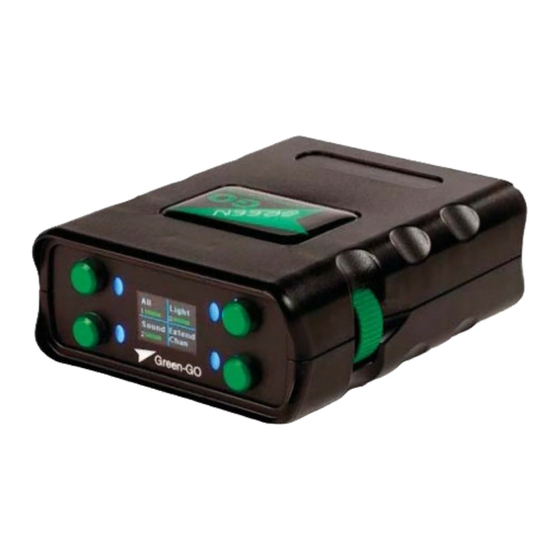

Green Go Wireless Beltpack
The portable station that allows you to connect to all desired stations on the Green Go network.
The Wireless Beltpack connects via the Green Go antenna - WAA and uses DECT technology.
As all other stations in the Green Go network, the beltpack contains a Configuration File that
defines the system configuration.
See the Functions and How to sections for more information about the Configuration file.
Whats in the box: Wireless Beltpack + 1800 mAh Li-Ion Battery + miniUSB-USB cable + USB Charger

Table of contents

Overview.....................................................................................................
Basic Functions Explained.........................................................................
How to: battery, on/off, setup menu, set user......................................
How to: clone config, assign channels, pairing.....................................
Reference....................................................................................................
Setup menu.................................................................................................
FAQ..............................................................................................................
Specifications.............................................................................................
User guide
v. 4a45
model nr. GGO-WBPX
Page 02
Page 03
Page 03
Page 04
Page 05
Page 06
Page 07
Page 10
Page 14
Page 14
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GGO-WBPX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Green-Go GGO-WBPX

Summary of Contents for Green-Go GGO-WBPX

  • Page 1: Table Of Contents

    Green Go Wireless Beltpack model nr. GGO-WBPX The portable station that allows you to connect to all desired stations on the Green Go network. The Wireless Beltpack connects via the Green Go antenna – WAA and uses DECT technology. As all other stations in the Green Go network, the beltpack contains a Configuration File that defines the system configuration.

  • Page 2: Overview

    User guide Green Go Wireless Beltpack model nr. GGO-WBPX Overview FRONT VIEW Indicator LED 1 Indicator LED 3 Pushbutton 1 Pushbutton 3 Pushbutton 2 Pushbutton 4 Indicator LED 2 Indicator LED 4 Display Indicator LEDs 1- 4: Indicates Pushbutton activity...

  • Page 3: Basic Functions Explained

    The configuration file can be loaded/cloned from another device, the Factory default file can be chosen or a custom config file can be created in the Green Go Control software. The configuration file is contained in all units, except Switches.

  • Page 4: How To: Clone Config, Assign Channels, Pairing

    When pairing a seventh beltpack to an antenna, it will replace the beltpack paired at slot no.6 This can be reorganized via the Green Go Update Connection software. It is good practice to keep a standard setup of 4 beltpacks paired with one antenna, leaving room for two additional pairings in case of emergencies or just one offs.

  • Page 5: How To: Ui, Color Codes, Pushbuttons, Extended View

    User guide Green Go Wireless Beltpack model nr. GGO-WBPX How to..continued The UI Indicator LED 1 Indicator LED 3 Pushbutton 1 Pushbutton 3 Pushbutton 2 Pushbutton 4 Indicator LED 2 Indicator LED 4 Display The Color Codes What does the color codes, in the Display and the Indicator LEDs, mean:...

  • Page 6: How To: Roaming, Standalone, Volume, Encoders, Reset, Update

    The firmware can be uploaded via ethernet or miniUSB. The latest firmware can be found at www.GreenGoCom.com Download the latest firmware and the Green Go Control and Connection software. - start the software - click Scan to search for the antenna on the network - Next select the antenna or multiple antennas and click on Update.

  • Page 7: Reference

    A Factory default Configuration file is available on every unit, but a custom Configuration file can be created in the Green Go Control software. The Config File can also be cloned from other Units containing the file. A Unit can only have one Config File loaded.
  • Page 8 Emergency Any group can be placed on the Emergency channel. Emergency channel is listen only. Emergency is highest priority in the Green Go System and Mutes all other channels. Force reconnect You can force the beltpack to disconnect from the antenna and reconnect to the best signal available.
  • Page 9 You're a User. Everyone using the intercom are Users. Users can be part of Groups. Custom Users and Groups can be created in the Green Go Control software. When created, the User gets a named profile and is automatically saved in the Configuration File (see Config File for further information).

  • Page 10: Setup Menu

    Set User: This is the place to choose which User profile to use for your beltpack Clone Config: Clone a Configuration File from another Green Go device or load the Factory Default Connection: Settings related to your connection and the place to go for paring your beltpack to an antenna Device Options: Options specifically for your device’s UI settings and warnings...
  • Page 11 User guide Green Go Wireless Beltpack model nr. GGO-WBPX The Setup Menu Tree: ...continued Audio Settings Exit//Go back Load Profile//Load an audio profile stored in the configuration file Exit//Go Back SideT: SideTone //Set the volume for how high the user should hear himself...
  • Page 12 User guide Green Go Wireless Beltpack model nr. GGO-WBPX The Setup Menu Tree: ...continued Set User: //Select the user to be used with for the beltpack Cancel//Go Back ’User A - Z’ Clone Config//Clone a configuration file from the network or load the Factory Default...
  • Page 13 User guide Green Go Wireless Beltpack model nr. GGO-WBPX The Setup Menu Tree: ...continued Device Options...continued Flip: //Select to flip parts of or all of the display items upside down. Default: Off Range: Both //Flip Menu and Main screen Menu // Flip only the menu (This one)

  • Page 14: Faq

    User guide Green Go Wireless Beltpack model nr. GGO-WBPX COMMUNICATION Troubleshooting There is no signal or poor signal level to the belt-pack - Check Pairing with Antenna - Check you are within range (300 metres maximum with clean line of sight)
  • Page 15 User guide Green Go Wireless Beltpack model nr. GGO-WBPX Specifications ...continued Wireless: Range: 50-300m depending on the environment DECT: Supports EU-DECT (CAT-iq V2.0, v3.0 partly), DECT 6.0 for North America and Japan DECT ETSI (EU-DECT) and FCC (DECT 6.0) certified...
