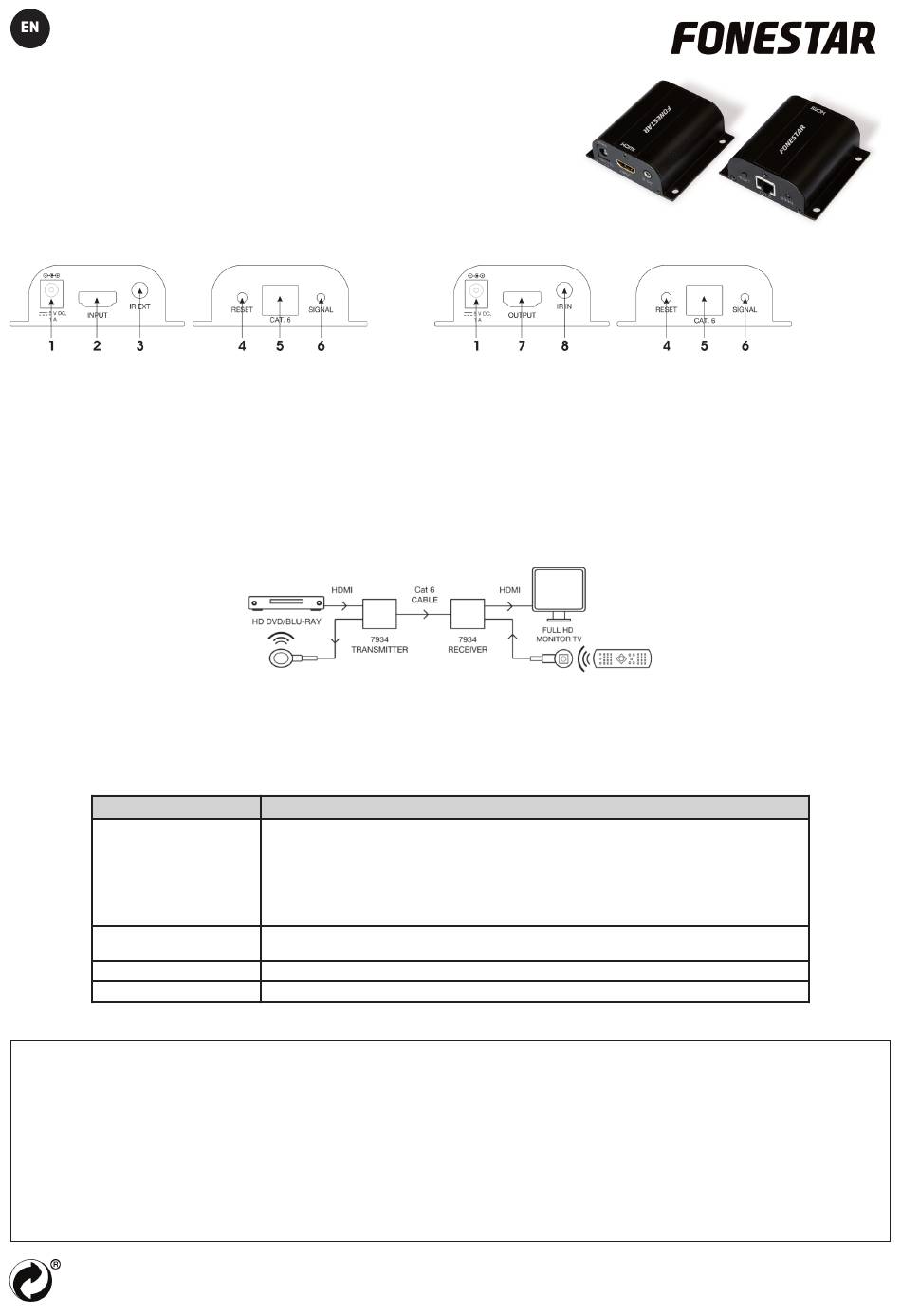

FONESTAR 7934 Quick Start Manual

7934
HDMI EXTENSION THROUGH CAT 6/6a/7 CABLE

DESCRIPTION

- HDMI extension through Cat 6/6a/7 cable.
- Transmission distance up to 60 m for a resolution of 1080p with Cat 6 cable.

CONTROLS AND FUNCTIONS

TRANSMITTER
1.- Power supply input for the mains adapter provided.
2.- INPUT: digital A/V input signal, HDMI connector.
3.- IR EXT: remote control transmitter connection output.
4.- RESET: button which resets the transmitter and the receiver, allowing the signal to be transmitted correctly again.
5.- Connector for Cat 6/6a/7 cable.
6.- SIGNAL: LED signal indicators. They flash when the transmitter and receiver are connected to the power supply and remain lit when there is a
connection between both and there is signal transmission.
7.- OUTPUT: digital A/V output signal, HDMI connector.
8.- IR IN: remote control receiver connection input.

CONNECTION AND OPERATING

- Connect the A/V digital signal source to the transmitter INPUT using HDMI cable.
- Connect the transmitter to the receiver using Cat 6/6a/7 cable.
- Connect the receiver OUTPUT to the TV monitor using HDMI cable.
- Power the transmitter and receiver with the mains adapters provided.

TECHNICAL SPECIFICATIONS

CHARACTERISTICS

POWER SUPPLY

DIMENSIONS

ACCESSORIES

This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as
expressed in the Spanish law 'La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more than showing the proof of purchase. After six months
FONESTAR reserves the right to demand proof of the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use, breakages, burns, spilt liquids or other substances,
excessive humidity, battery deterioration and internal manipulation of the device, the software or its components by unauthorized persons, and in general any use that is unrelated to
the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor where the product was purchased in no more than 2
months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
This document adds information, and never decreases the consumers' rights, which in all cases are protected by the Spanish law 'La Ley General para la Defensa de los Consumidores
y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBALAJES ESPAÑA, S.A. "ECOEMBES", with number 03497 and all our products carry the symbol, backed by our membership and subscription to the above
mentioned organization with the recycling and subsequent management of our packaging.
FONESTAR is registered in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI (Registro de establecimientos Industriales), with the entry number 001851.
FONESTAR S.A. - NIF A28780443 - Polígono Trascueto - 39600 Revilla de Camargo, Cantabria (Spain)
www.fonestar.com
RECEIVER
7934
HDMI extension through Cat 6/6a/7 cable.
Transmission distance of up to 60 m for a resolution of 1080p with Cat 6 cable.
Automatic adjustment depending on the cable length.
In accordance with IEEE-568B regulations.
Compatible with Full HD 1080p, 3D.
Aluminium case.
Remote control extension.
Transmitter: 5 V DC, 1 A with adapter included
Receiver: 5 V DC, 1 A with adapter included
Transmitter and receiver: 67 x 25 x 72 mm depth
Remote control receiver and transmitter
