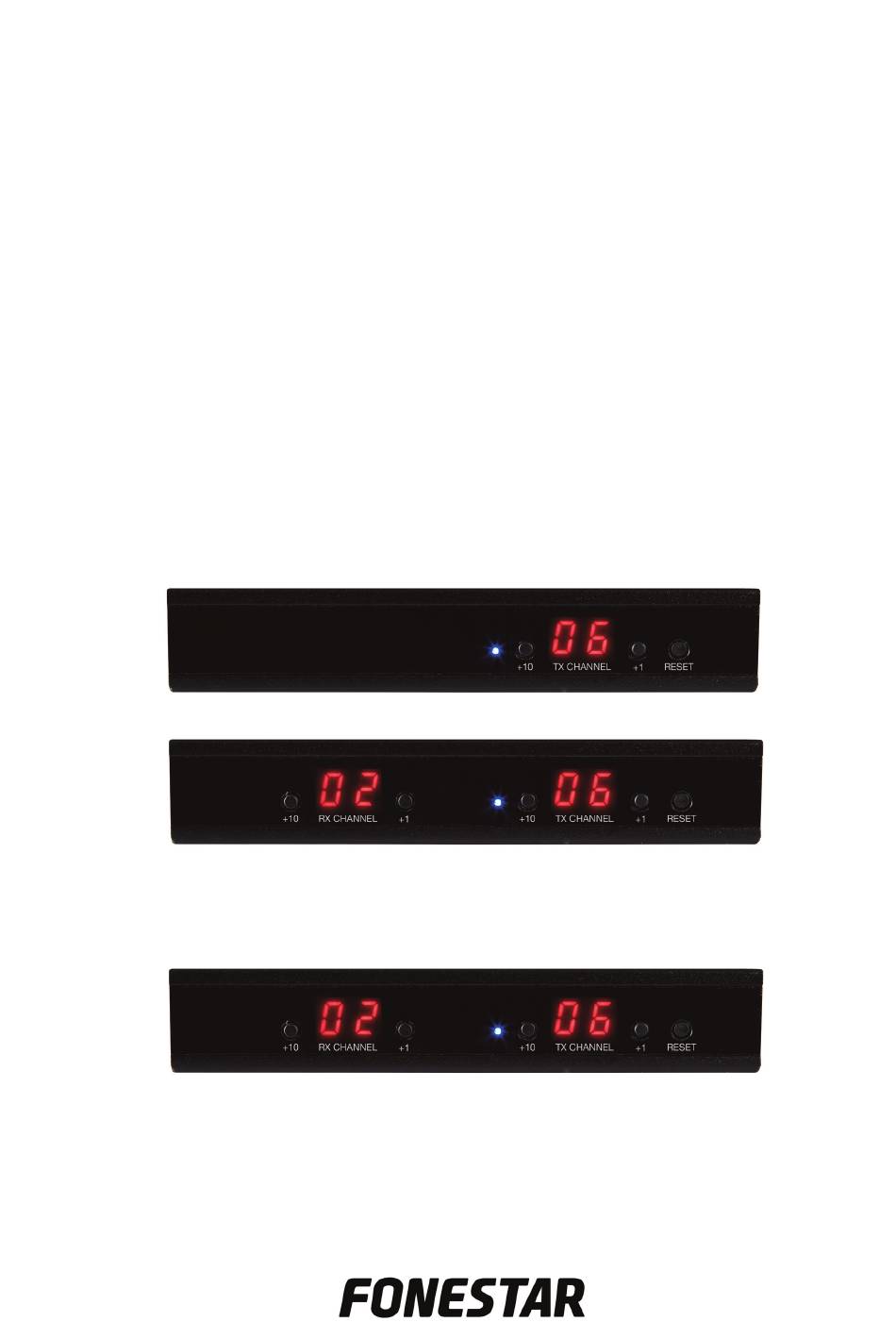

  • Page 1 FO-457M, FO-458MR HDMI EXTENSION MATRIX OVER TCP/IP ETHERNET INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
  • Page 4 Increases the transmission distance of HDMI signals up to 120 m for a resolution of 1080p, via switch with IGMP function or direct connection with Cat 5e/6 cable. FO-458MR HDMI receiver matrix over TCP/IP ethernet. For extension or replacement of mod. FO-457M. CONTROLS AND FUNCTIONS TRANSMITTER (mod. FO-457M) 1.- IR: remote control IF receiver.
  • Page 5 RECEIVER (mods. FO-457M and FO-458MR) 1.- +10: increases the receiver ID in increments of 10. 2.- RX ID: screen which displays transmitter identification number (01 ~ 99). 3.- +1: increases the receiver ID by 1 unit. 4.- IR: remote control IR receiver.
  • Page 6 - Use Cat 5e/6 cable of up to 120 meters to connect the switch and the receiver according to the IEEE-568B standard. - Power the FO-457M transmitters and the FO-458MR receivers with the mains adapters provided. - Switch on the digital A/V source and the televisions.
  • Page 7 CHANGING THE COMPUTER’S IP ADDRESS In order to display mods. FO-457M and FO-458MR, using the software (HDbit T E-MATRIX Control Center) the computer must have an IP address within the same range as the installation devices. If this is not the case, follow the steps below: 1.- In your computer press Start/Control Panel/Open Network and Sharing Center.
  • Page 8 CONTROL SOFTWARE FOR PC (HDbit T E-MATRIX Control Center) To download the software software, access our WEBSITE fonestarpro.com, look for the product FO-457M o FO-458MR. Then, open the “Software” tab to download the file in your computer and install the software.
  • Page 9 1.- Press the Start Scan to display the connected devices. 2.- Select the transmitter/receiver ID. 3.- Change the name of the transmitter/receiver device for one that is easy to identify. 4.- Select the transmitter/receiver channel. 5.- Pre edit. Select the transmitter/receiver channels and press “SAVE MODE”. Name the saved PRESET and press “OK”.
  • Page 10 CONTROL SOFTWARE FOR ANDROID DEVICES To download the APP, access our WEBSITE fonestarpro.com, look for the product FO-457M or FO-458MR. Then, open the “Software” tab to download the file in your computer and install the APP in your Android device.
  • Page 11: Technical Specifications

    Remote control cable extender Assembly mounts FO-458MR CHARACTERISTICS HDMI extension matrix over TCP/IP ethernet (receiver). For extension or replacement of FO-457M. Possibility of using as many receivers as you wish via a switch with IGMP Snooping function. Easy plug and play connection. RECEIVER...
  • Page 12: Warranty

    This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
