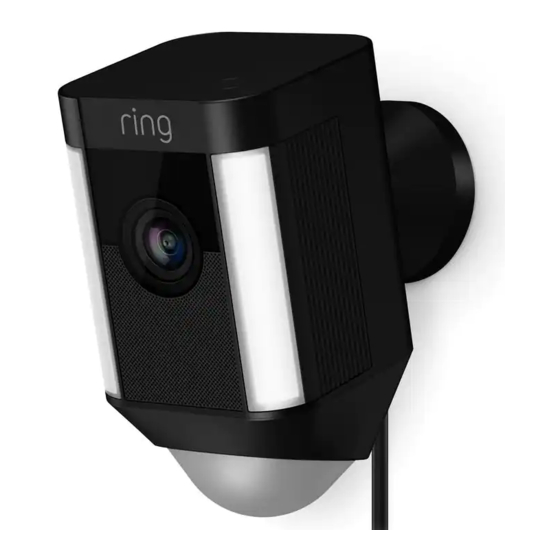

ring Spotlight Cam Wired Manual

Hide thumbs Also See for Spotlight Cam Wired:

Advertisement

Quick Links

Download this manual
Spotlight Cam
Wired

Advertisement

loading
Need help?

Need help?

Do you have a question about the Spotlight Cam Wired and is the answer not in the manual?

Questions and answers

Related Manuals for ring Spotlight Cam Wired

Summary of Contents for ring Spotlight Cam Wired

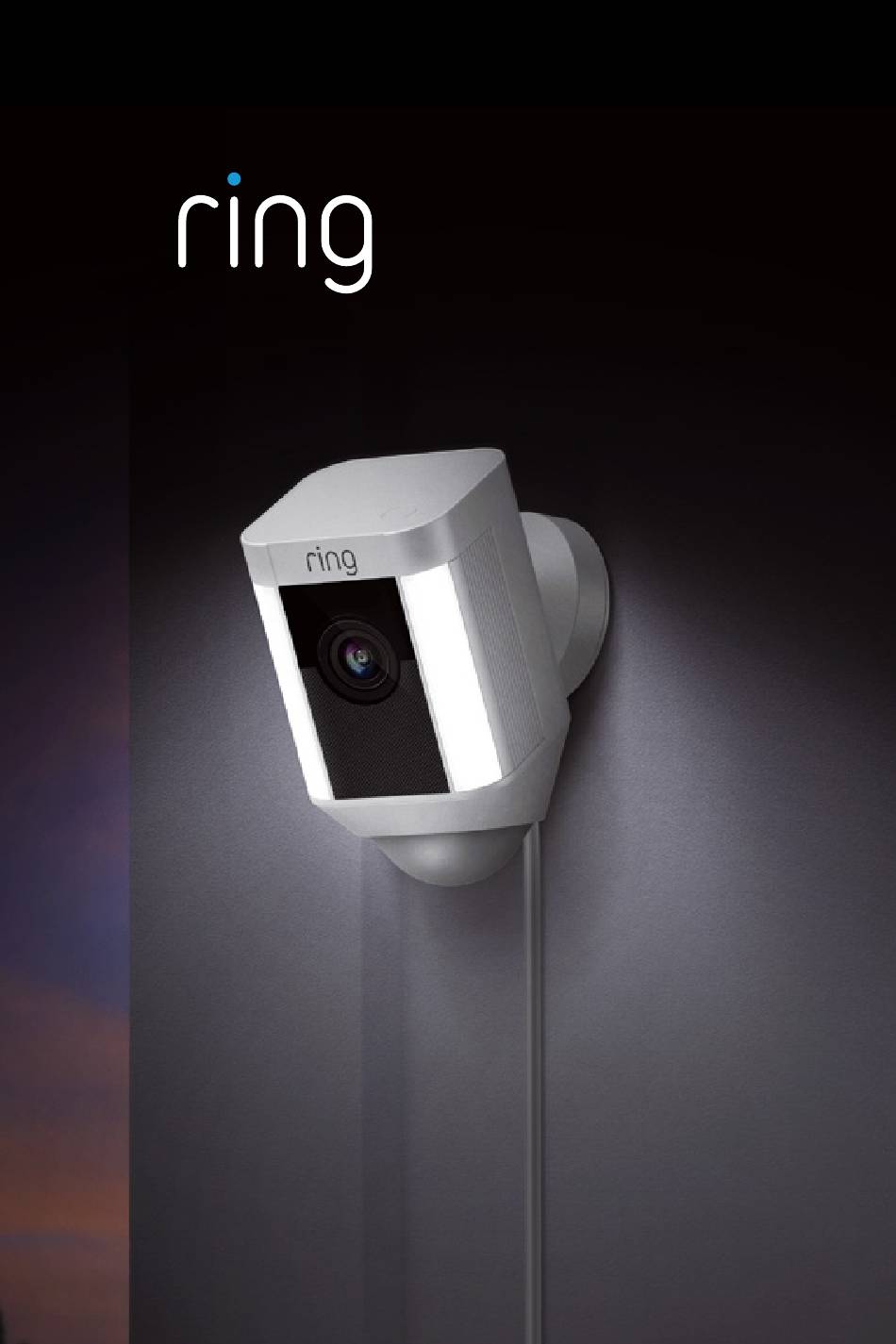

  • Page 1 Spotlight Cam Wired...
  • Page 2 Download the Ring app The Ring app will walk you Spotlight through setting up and managing your Spotlight Cam. Cam in the Search for “Ring” in one of the app stores below, or visit: Ring app. ring.com/app. Download from Windows Store Grab your Wi-Fi password It’s required for the in-app setup.
  • Page 3 Ring app Plug your Spotlight Cam into an outlet In the Ring app, select Set Up Device in the same room as your Wi-Fi router and follow the in-app instructions. to set it up.
  • Page 4 If the light on the bottom of your to see video from the camera in the Spotlight Cam is flashing after setup, Ring app. it’s updating its internal software. The light will stop flashing when the update is completed. This update can...
  • Page 5 2. Install your Test video quality outside Now, unplug your Spotlight Cam and Spotlight Cam take it outside to where you want to install it. Plug Spotlight Cam into an outdoor outlet and test video quality on the wall. again.

  • Page 6: Before You Begin

    Before you begin This is everything you’ll need to install your Spotlight Cam. Install Screws (5) Screwdriver Use these to install the mounting Use the screwdriver handle to bracket on your wall. hold the provided bit. Phillips Bit Wall Anchors (16) Use the Phillips bit for installing Use these to attach the mounting the mounting bracket and...
  • Page 7 Install Mounting Screws Bracket How it all fits together Setup Button Security Screw Wire Clip Lights Motion Detector...
  • Page 8 Select an install height When mounted at 9 feet off the ground, with the motion detector Parallel to ground parallel to the ground, the motion sensor is optimized to detect human- sized objects at up to 30 feet. 9 feet (3 Meters) 30 feet (10 Meters)

  • Page 9: Install The Mounting Bracket

    Install the mounting bracket Use the built-in level to make sure your Spotlight Cam will be level before marking your holes. If installing on a masonry surface, first drill holes using the provided drill bit. Insert the wall anchors before installing the screws.
  • Page 10 Attach the base of Spotlight Cam to the mounting bracket Slot the base down to lock it to the mounting bracket.
  • Page 11 Tighten the security screw Using the Phillips end of the screwdriver bit, tighten the security screw on the right until your Spotlight Cam is secure.

  • Page 12: Secure The Cable

    Secure the cable Use the provided cable clips to secure the cable on your wall. Use the included drill bit to pre- drill holes in the wall and insert the provided anchors first if installing on a masonry surface, like stucco or brick. The power cable can be painted to match the wall.
  • Page 13 Plug Spotlight Cam in If Spotlight Cam is not already plugged into a power outlet, plug it in now. If you’ve already completed the in- app setup, wait about a minute for Spotlight Cam to power up and come back online.

  • Page 14: Adjust The Camera Angle

    Adjust the camera angle To ensure accurate motion detection, position the camera with the motion detector parallel to the ground. Tighten the side screw on the left to secure the camera position.
  • Page 15 +44 1727 26 3045 +800 8700 9781 Singel 542 1017 AZ Amsterdam The Netherlands © 2020 Ring LLC or its affiliates. Ring and all related logos are trademarks of Ring LLC or its affiliates.
