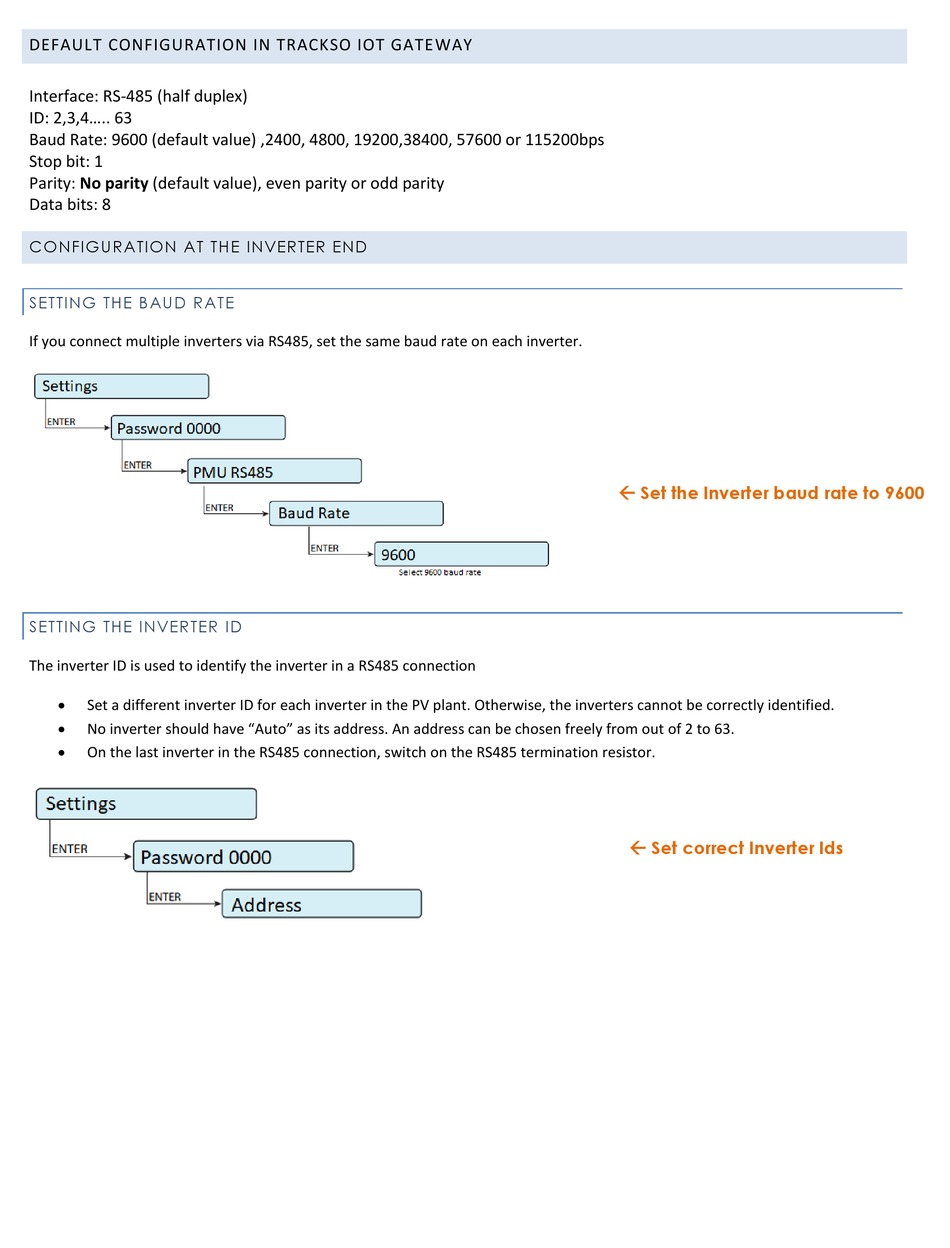

DEFAULT CONFIGURATION IN TRACKSO IOT GATEWAY

Interface: RS-485 (half duplex)
ID: 2,3,4..... 63
Baud Rate: 9600 (default value) ,2400, 4800, 19200,38400, 57600 or 115200bps
Stop bit: 1
Parity: No parity (default value), even parity or odd parity
Data bits: 8

CONFIGURATION AT THE INVERTER END

SETTING THE BAUD RATE

If you connect multiple inverters via RS485, set the same baud rate on each inverter.

SETTING THE INVERTER ID

The inverter ID is used to identify the inverter in a RS485 connection
•
Set a different inverter ID for each inverter in the PV plant. Otherwise, the inverters cannot be correctly identified.
•
No inverter should have "Auto" as its address. An address can be chosen freely from out of 2 to 63.
•
On the last inverter in the RS485 connection, switch on the RS485 termination resistor.
 Set the Inverter baud rate to 9600
 Set correct Inverter Ids
