Eelectron Horizone Mini IN00M02WEB Installation Manual
  1. Manuals
  2. Brands
  3. Eelectron Manuals
  4. Server
  5. Horizone Mini IN00M02WEB
  6. Installation manual

Eelectron Horizone Mini IN00M02WEB Installation Manual

Web monitoring server
Hide thumbs Also See for Horizone Mini IN00M02WEB:

Advertisement

Quick Links

Download this manual
Product:
Description:
Date:
Version:
EELECTRON SPA

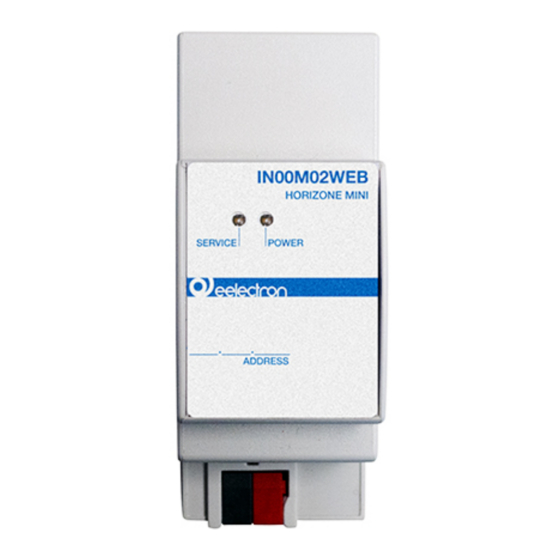

HORIZONE MINI
IN00M02WEB
INSTALLATION MANUAL
IN00M02WEB
Horizone Mini - Installation Manual
06/04/2020
1.0.3
IN00M02WEBFI00020100_ADMIN_MANUAL
1 / 118

Advertisement

loading
Need help?

Need help?

Do you have a question about the Horizone Mini IN00M02WEB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eelectron Horizone Mini IN00M02WEB

Summary of Contents for Eelectron Horizone Mini IN00M02WEB

  • Page 1 HORIZONE MINI IN00M02WEB INSTALLATION MANUAL Product: IN00M02WEB Description: Horizone Mini - Installation Manual Date: 06/04/2020 Version: 1.0.3 EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 1 / 118...
  • Page 2 EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 2 / 118...
  • Page 3 Exclusion of responsibility: Although the contents of this manual have been checked to ensure that they correspond to the hardware and software indicated in the title, changes may, however, be made. Therefore, Eelectron assumes no responsibility therein. © 2020 Eelectron SpA. All rights reserved.
  • Page 4 Date/Time ............................28 date and time ..........................28 time zone ............................ 29 Synchronize date from ....................... 29 Home .............................. 29 Maintenance ........................... 30 Rooms ..............................31 Modifying a room .......................... 31 Widget Association ........................33 EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 4 / 118...
  • Page 5 Remote control of ETS ........................66 Configure communication......................66 Import/export widget........................67 Scenarios ............................68 Introduction ............................ 68 Creating a new scenario ......................... 68 Adding actions to a scenario ......................69 Timed Scenarios ..........................69 Notifications ............................71 EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 5 / 118...
  • Page 6 Creating a new user ........................107 User groups and access rights ...................... 108 Default passwords ........................108 Change Password ......................... 108 Remote Access ..........................109 Introduction ..........................109 Opening ports on the router ......................109 EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 6 / 118...
  • Page 7 Remote Cloud Accessibility ......................110 Remote control of ETS ........................111 Introduction ..........................111 Local network usage ........................111 Remote use ........................... 113 Remote control for ETS5+ ......................118 EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 7 / 118...
  • Page 8 IEC 61558-2-6 or equivalent. The CE declaration of conformity of the device can be requested from Eelectron SpA, at the contacts on the website www.eelectron.com In accordance with Directive 2002/96/EC, electronic devices must be disposed of in dedicated facilities and not in the collection of municipal solid waste.
  • Page 9 HORIZONE MINI also features the following ports: RS485: to connect one or more slave devices operating on MODBUS RTU protocol • USB: available for future integrations • EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 9 / 118...
  • Page 10 The following figure shows the ports available on the webserver: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 10 / 118...
  • Page 13 When the LED turns off, the WEBSERVER can be reached at the factory IP address • (192.168.0.110) If the LED turns off after pressing for a prolonged period (10 seconds) before pressing it for a short period, repeat the entire procedure. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 13 / 118...
  • Page 14 When the LED turns on steadily, release the button and wait for it to turn off • When the LED turns off, disconnect and restore power • Wait about one minute and access HORIZONE MINI with factory IP address (192.168.0.110) • EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 14 / 118...
  • Page 20 To close an open TAB, simply move over it with the mouse and click the close button (shown only when the mouse is on it). The corresponding window is closed; if there are any unsaved changes, confirmation is requested before closing, resulting in loss of data. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 20 / 118...
  • Page 21 Each notification is labelled with the date and time on which it occurred. You can clear the notification list with the trash can at the bottom right or download the log in CSV format. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 21 / 118...
  • Page 22 This page allows you to set the network parameters of HORIZONE MINI, for the different network interfaces (if you have a HORIZONE MINI model with WIFI connection, in addition to LAN). For the LAN network, the parameters required are: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 22 / 118...
  • Page 33 You can change the widget order using the drag and drop button, which determines the order in which items are drawn in the display. When the widget association is complete, the rooms appear in the display as shown in this example: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 33 / 118...
  • Page 34 (which represent the type of widget, in terms of both sub-objects and graphic appearance). By pressing the ADD button, the chosen widgets are created and appended to the list in the corresponding category: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 34 / 118...
  • Page 39 Duplicate button In both cases, the window below opens: You can specify the following: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 39 / 118...
  • Page 41 1-bit command address and any status feedback: The ON/OFF lights are displayed in supervision as touch control boxes; every time they are touched, the status is reversed between on and off: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 41 / 118...
  • Page 42 You should not modify the ETS encoding for the sub-objects of the widget; the modification may result in a supervision malfunction. DIMMER The dimmer widget provides two sub-objects, to switch the light ON/OFF and adjust its intensity: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 42 / 118...
  • Page 43 When you press a dimmer light in supervision, the following control pop-up appears: ON/OFF control buttons Schedule button Slider adjustment percentage Scheduled today (if present) Percent up/down buttons EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 43 / 118...
  • Page 45 Pressing the add preset button creates a new colour memory, initially black; by selecting a colour, a preset and pressing the MEMO button the colour is saved in the corresponding memory. A preset can be removed by selecting it and then pressing the delete button. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 45 / 118...
  • Page 50 33% → speed 1 66% → speed 2 100% → speed 3 Ventilation speed 1 ON/OFF (1 bit DPT 1) Control of fans in the form of individual mutually exclusive objects. Ventilation speed 2 EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 50 / 118...
  • Page 51 By pressing the Advanced settings button, all the detail options are shown, divided by category; again; the actual list depends on the configuration and the number of sub-objects associated with a KNX address: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 51 / 118...
  • Page 54 The quantities in question can only be displayed, and not controlled. Hence, the widget has non- interactive elements, on the left side (status indicators) and in the central part (temperature and humidity display compared to the bottom of the scale set in administration). EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 54 / 118...
  • Page 57 The following figure shows an example of a split control popup window: Fan speed Air conditioning control mode Measured temperature Schedule button Operating status ON/OFF split Mode Ventilation speed Auto/Manual Relative humidity Swing mode Advanced Position of the blades settings Temperature setpoint EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 57 / 118...
  • Page 61 Display Style Selector As this is a flexible widget, you need to make a consistent choice of settings, including display style, ETS encoding, and icon/value sets; certain combinations may not lead to a plausible graphical result. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 61 / 118...
  • Page 63 Top element with buttons, and bottom slider with 180° width. 210° width. Associated sub-objects: Associated sub-objects: “General - Top pushbutton panel” “General - Top pushbutton panel” “General - Bottom slider” “General - Main slider” EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 63 / 118...
  • Page 65 Display example: Top pushbutton panel Info 1...4 Advanced options Central slider EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 65 / 118...
  • Page 67 Press EXECUTE • When the operation is complete, the new widgets are listed on the TECHNOLOGIES > KNX > KNX WIDGETS page in the category to which they belong. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 67 / 118...
  • Page 69 You can place one or more wait commands between the command actions of a scenario, which delay the execution of subsequent actions (depending on the point in the sequence in which the delay is placed) and thus, allow you to create stepped sequences. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 69 / 118...
  • Page 72 Notification Log This page allows you to view a history of all notifications sent by HORIZONE MINI with the relevant date/time and the message sent to users. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 72 / 118...
  • Page 73 ADD button in the task list. Each task is represented by a graphical page, on which you can drag technological objects (from the side menu or from the search results), and logic blocks available in the library (LIBRARY). The following figure shows an example of simple logic between KNX widgets: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 73 / 118...
  • Page 74 Logic block Connections Toolbar Details panel library between blocks specification Input/output technological blocks EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 74 / 118...
  • Page 76 Blocks can be moved to the workspace, either by single selection, or by selecting a rectangular area that involves multiple blocks. To remove a block from the workspace, select it and press the DELETE key. Connections can also be removed in the same way. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 76 / 118...
  • Page 77 TRG nodes of the first objects to the output TRG node of the third • EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 77 / 118...
  • Page 78 Trigger Connections Output strategy When the output trigger is connected, the object’s output strategy is automatically set to “trigger- only” (and the symbol on the output nodes changes accordingly). EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 78 / 118...
  • Page 79 In the case of composite widgets, by opening the details (side panel) on the TRG node, it is possible to filter the nodes that determine the pulse (for input triggers) or that are influenced by the trigger (on output), through the appropriate multiple selector: Node selector affected by trigger EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 79 / 118...
  • Page 80 – depending on the type – is summarised in the right part of the message bar, visible even if closed. The following figure shows an example of a simulation with the message area open: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 80 / 118...
  • Page 81 The tasks cannot be edited reports during execution. If a task is not ready to be executed, you can disable it on the LOGIC TASKS detail page before executing it. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 81 / 118...
  • Page 90 By pressing on consumption and production, the details of the relevant meters are shown (default view entering the energy section, if there is not photovoltaic system): Self-consumption percentage indicator Advanced options Minimum and maximum threshold Real-time power indicator selectors EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 90 / 118...
  • Page 91 Loads can be managed in the appropriate section, accessible via the button at the top right of the energy page. By clicking on the single load widget, the following detail popup window is displayed: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 91 / 118...
  • Page 92 Also, in this case, the socket can be controlled by the ON/OFF buttons, and put in manual mode, to temporarily exclude it from the load control logic. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 92 / 118...
  • Page 93 CLOUD SERVICES Registration HORIZONE MINI can be registered on the Eelectron cloud to benefit from exclusive services, which enhance its local operation. The first step is to create a free account on our cloud, if you do not already have one (because, for example, you have already registered to use the products of the ELEKTRA range through its app).
  • Page 95 By pressing the service activation button, a request is sent to the cloud, which after a few seconds sends a confirmation email to the applicant (the same email address used to access the cloud section) containing: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 95 / 118...
  • Page 96 Even if you associate more than one HORIZONE MINI users with the same number of cloud accounts, you only need to activate remote access once; once activated, in fact, HORIZONE MINI becomes available for external access, regardless of the user who then materially logs in. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 96 / 118...
  • Page 97 Within the configuration pages, whether they are a room, list of widgets of a given technology or the detail tab, you can enable cloud synchronization of one or more widgets / supervision objects: Enable synchronization on cloud EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 97 / 118...
  • Page 98 – green or red – indicates whether or not there are objects to synchronize. If an object remains orange after synchronization is completed, you should verify its configuration; for example, composite widgets may lack the minimum number of sub-objects necessary for proper cloud management. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 98 / 118...
  • Page 99 Amazon, “Home” for Google). This chapter will describe the procedure for Alexa, by way of example. As a first step, it is necessary to activate the Eelectron skill in the Alexa and Google Home apps; during the procedure, you are required to associate the account on the Eelectron cloud (with which...
  • Page 100 Once the procedure is complete, you can associate each of the devices with a group to identify it more easily (and be able to make group commands, or refer to the name of the group by voice): EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL...
  • Page 101 KNX system. To this end, an indicator has been added to HORIZONE MINI which highlights whether a certain widget / object can be controlled by voice. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 101 / 118...
  • Page 102 Indicator elements controlled by voice … or which sub-objects they are, in the case of composite widgets. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 102 / 118...
  • Page 103 “EVENTS TO BE SENT TO” section. In the case of composite widgets (such as KNX widgets), you must drag the sub-object whose status change is to determine the event, searching for it in the search engine: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 103 / 118...
  • Page 105 “webhooks” as a service, you are asked to paste the previous address; if necessary, you can replace fixed values in it with “ingredients” that derive from the starting event, to make the invocation dynamic based on the triggering cause: EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 105 / 118...
  • Page 106 Two tools can be used to monitor the correct operation of the rules in both directions: the LOG button in HORIZONE MINI, which shows a series of messages collected on the • server during communication with IFTTT the “activity” section in IFTTT, which records all service events • EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 106 / 118...
  • Page 109 If public ports 443 and/or 22 are already occupied by other devices, different ports may be specified in the port forwarding rules, provided that these rules address external requests on ports 443 and 22 (respectively) within the LAN. For more information, please refer to your internet router documentation. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 109 / 118...
  • Page 110 As an alternative to opening ports on the router, you can activate a remote service that allows you to access the webserver without opening ports on the router, through the support of our cloud. After pairing HORIZONE MINI with your Eelectron cloud account, as described above, simply log in to the SERVICES >...
  • Page 111 • automatically due to network problems, manually enter its IP address and specify “3671” as the port, taking care not to select NAT mode When finished, confirm the changes with • the “OK” button EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 111 / 118...
  • Page 114 PC is “projected” into the VPN network with one of the IP addresses provided in HORIZONE MINI; at this point, you can switch to the ETS configuration as described above in the case of use on the local network. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 114 / 118...
  • Page 115 Select “configure connection or network” • in the side menu Specify “connection to a company • network” as the type of the new connection, then click on “use existing internet connection” in the next screen EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 115 / 118...
  • Page 116 (specifying the public IP address of the router if you connect remotely), and specify a name for the connection (e.g.: “HORIZONE MINI”) Specify the login credentials indicated in • the HORIZONE MINI configuration tab and leave the “domain” box blank EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 116 / 118...
  • Page 117 PC is “projected” into the VPN network with one of the IP addresses provided in HORIZONE MINI; at this point, you can switch to the ETS configuration as described above in the case of use on the local network. EELECTRON SPA IN00M02WEBFI00020100_ADMIN_MANUAL 117 / 118...
