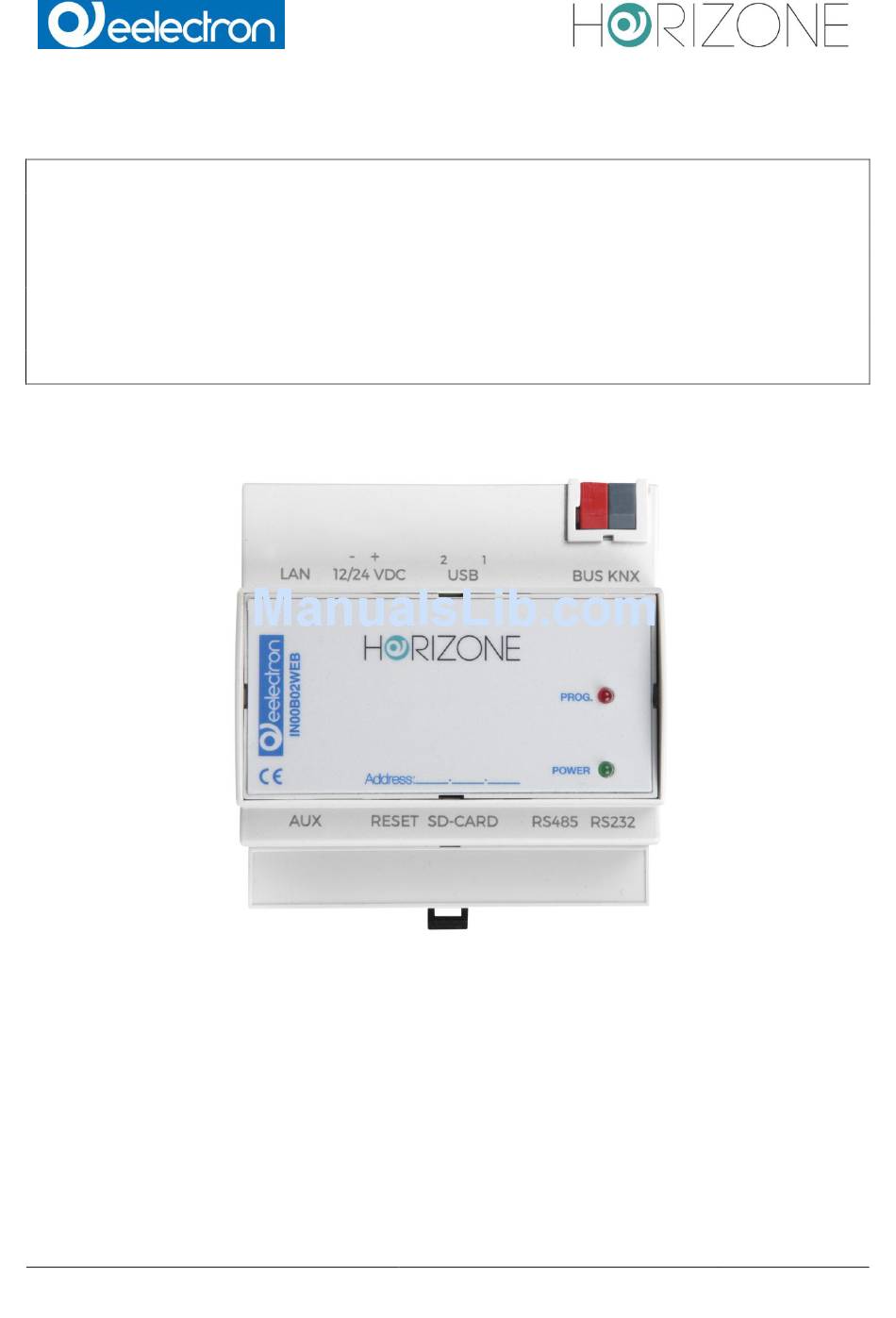

Eelectron HORIZONE Commissioning Instructions

Hide thumbs Also See for HORIZONE:
Table of Contents

Advertisement

Quick Links

Download this manual
Prodotto:
Descrizione:
Data:
Eelectron Spa
Horizone Server
IN00B02WEB
Commissioning Instruction
IN00B02WEB
Horizone Server – Commissioning Instruction
24/01/2017
IN00B02WEBFI00070102_ADMIN_MANUAL_EN.DOCX
1/113
