NOMA 052-8005-8 Instruction Manual

OUTDOOR WALL LIGHT
model no. 052-8005-8 | contact us: 1-866-827-4985
IMPORTANT:
Please read this manual carefully before assembly and save it for reference.
Wiring the unit incorrectly may damage the electronic components inside this control module and can cause a fire hazard.
Doing so will void all warranty claims.
ELECTRICAL INSTALLATION:
1) Place the wall switch to the"OFF" position.
NOTE: Shutting off a wall switch that controls the light is not
sufficient to prevent electrical shock.
WARNING: CONSULT A QUALIFIED ELECTRICIAN TO
ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR.
INSTALLATION
1) To install your new light fixture, attach the white wire from the house to the white wire from the fixture, using one of the
included wire nuts. Then attach the black wire from the house to the black wire from the fixture the same way. Then
attach the green ground wire (or bare copper wire) from the house to the bare wire of the fixture.
2) Put in place the canopy [4] making sure all wires are secure inside the canopy [4].
3) Screw in decorative nuts [5] to secure canopy and the mounting bracket [7] to the wall.
4) Put in the bulb [2].
5) Place glass shade [1] onto the base. With a screwdriver, secure the glass shade by turning clockwise the two (2) screws
located at the base of the fixture. The inner adjustable clips [3] will secure the glass shade in place.
6) Turn the power back ON.

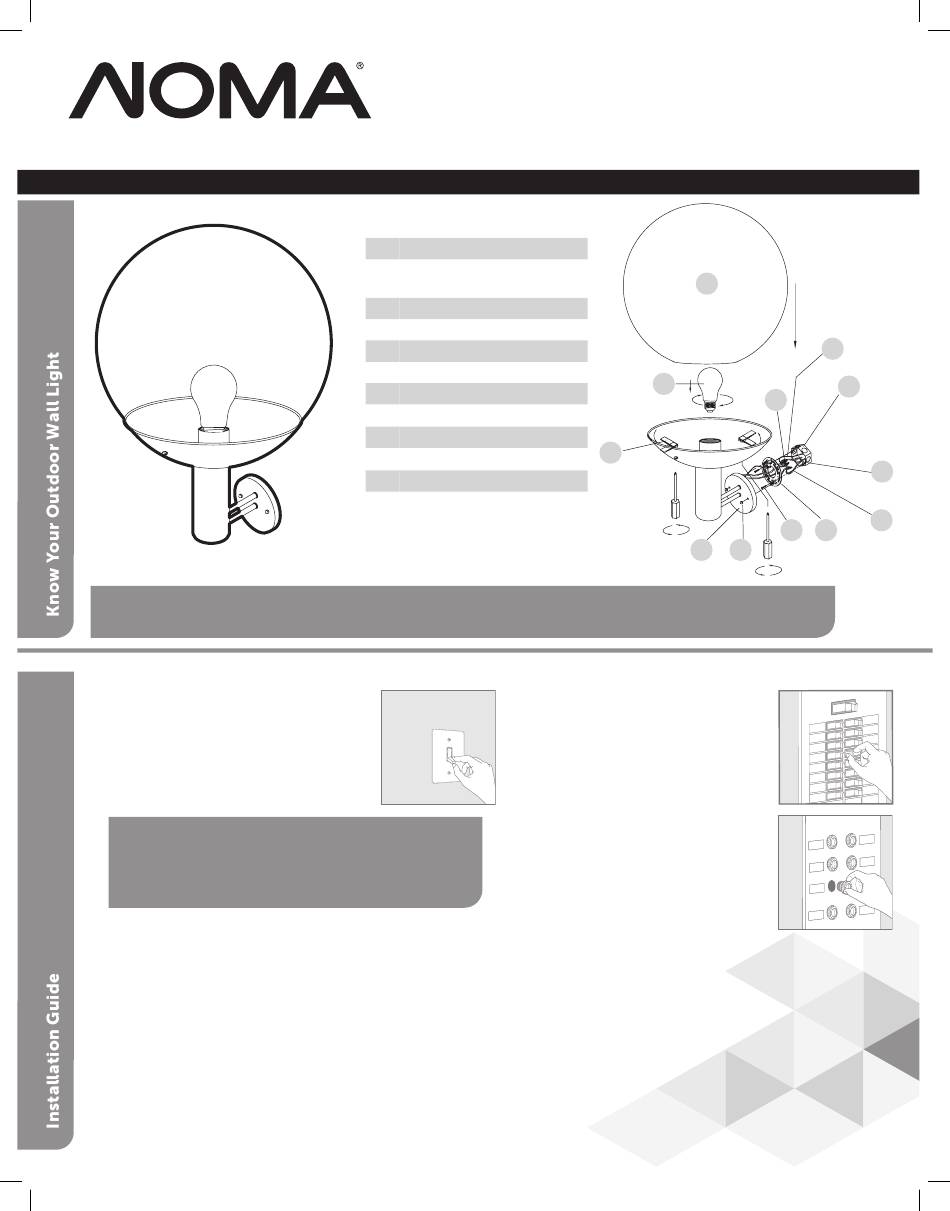

1. Glass shade
2. A19 bulb, 60 W maximum
(not included)
3. Adjustable clips for glass shade
4. Canopy
5. Decorative nut
6. Screw
7. Mounting plate
8. Ground wire
9. White neutral wire
10.Outlet box (not included)
11. Black live wire
12. Wire connector
2) Depending on which type of fuse box you
have in your home: Place either the main
(Master) switch to the "OFF" position,
cutting off power to your entire home,
OR turn off the individual switch that
provides power to where the fixture
will be installed.
OR
3) Place either the main (Master) switch
to the "OFF" position, cutting off power
to the entire home, OR unscrew the fuse
that provides power to where the fixture
will be installed.
Instruction Manual
For outdoor use
Retain carton for storage purposes
1
2
12
3
4 5
11
10
9
8
6 7
