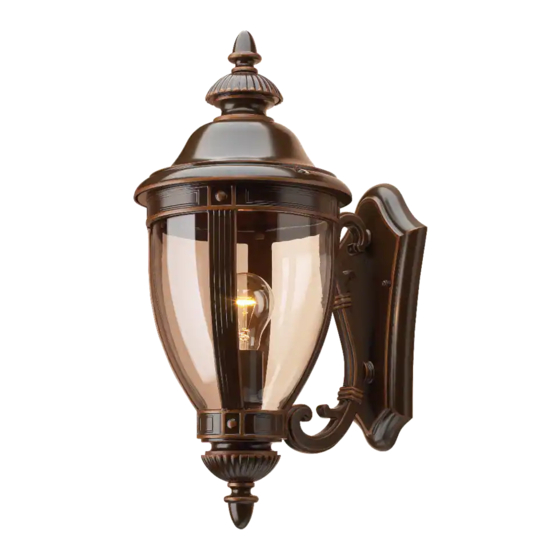

MANOR HOUSE OUTDOOR WALL LIGHT
model no. 052-4536-8 | contact us: 1-866-827-4985
12
11
10
IMPORTANT:
Please read this manual carefully before assembly and save it for reference. Wiring the unit incorrectly may damage the
electronic components inside this control module and can cause a fire hazard. Doing so will void all warranty claims.
1
2
13
14
15
16
9
8
7
6
Instruction Manual
For outdoor use
Retain carton for storage purposes
1. Decorative nut
2. Rubber ring
3. Cover
4. Bulb (not included)
5. Glass shade
6. Decorative arm
7. Cap nut
8. Rubber ring
9. Crossbar
10.Black live wire
11. Wire connector
12. Outlet box (not included)
13. White neutral wire
14. Outlet box screw
15. Mounting screw
16. Ground wire
3
4
5
