Summary of Contents for Zipper Mowers A1

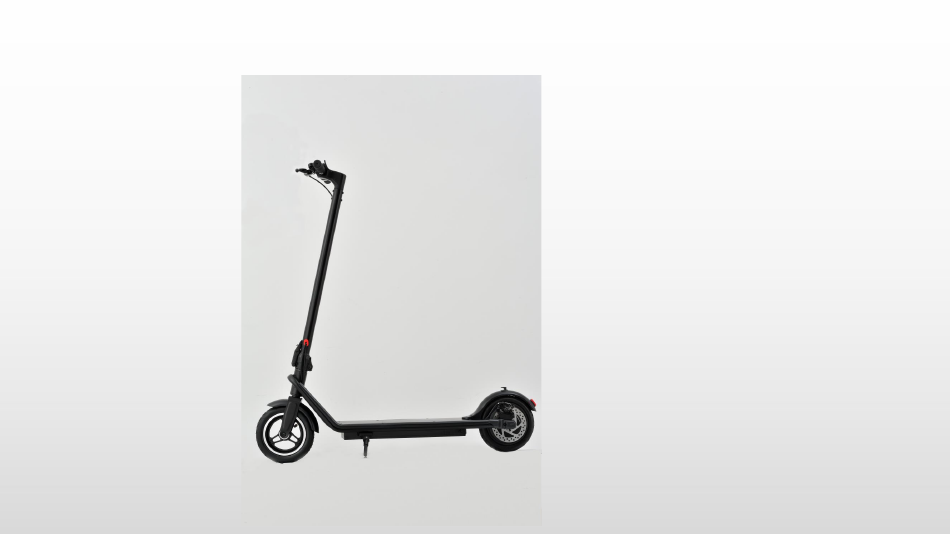

- Page 1 User Manual ZIPPER A1 Foldable Electric Scooter...
- Page 2 Thanks you choosing our product.Have fun with this electric scooter. 01.The Device &Accessories C ON T E N T S 02.Functions 03.Assembling 04.Charging scooter 05.Safety instructions 06.Fodling and transportation 07.Care and storage 08.Parameters 09.Presence of toxic and harmful substances 10.Warranty...
- Page 3 1 . T h e D e v i c e & A c c e s s o r i e s Accessories Head assembly Body components M5 hex wrench M5*12 screw charger...
- Page 4 2.Functions handlebar accelerator kickstand hook Brake handle + handbell brake line Folding Battery compartment mechanism Long press (3 seconds), turn on/off function. Rear After starting the machine, press once to turn the headlight wheel Front on/off. fender Rear After starting the machine, press the button for 2 fender consecutive times and switch to 1/2/3 gear.
-
Page 5: Assembling The Device
3.Assembling the device 3.Folding mechanism with upright pole 1.Assemble the horizontal handle assembly with the rise 2.Tighten the screws... - Page 6 Charging scooter 5.Safety instructions 1.It is not recommended driving on the rain. 2.Please do not hang backpacks and other heavy objects on handlebars...
- Page 7 It is forbidden to leave or ride a scooter at high roadway, When driving is forbidden by one foot motorway or ride it at a high speed It is forbidden to drive through puddles,to which Never rider a scooter more than one person or hold a exceeds depth of 2cm child in your arms...
- Page 8 Do not tread the back of the fender Do not touch the disc brake Do not driving leaving your hands Do not ridding the scooter up,down steps or jump over obstacles...
- Page 9 07.Fodling and transportation Transportation You can transfer electric scooter by one hand or two hands...
- Page 10 If you notice that the locking mechanism of the scooter is a little loose, follow these steps: Step 2 Step 1.Use the M2 to loosen the Step 1/Step 3 screw counterclockwise Step 2:Use the M5 to loosen the screw counterclockwise Step 3: Use the M2 to tighten the screws, close the...
- Page 11 Satefy recommendations ①Electric scooter-it is only a device for entertainment,not vehicle.But once you driving to public area, the electric scooter brings certian risks for your safety.For the sake of your safety and others safety,you must strictly follow the instructions,outlined in this driving manual.
- Page 12 8.Care and Storage Clean and store electric scooter If you find any stains on electric scooter housing,use a soft damp cloth to wipe the vehicle;You can use toothpaste and a toothbrush to clean the scooter from stains,and then wipe it clean with a damp cloth.If you find scrathed on parts, made of plastic,use sandpaper or other grinding materials for their polishing.
- Page 13 ⑤After each use of the device,charge the battery to prolong its service life. Do not store the scooter battery in rooms with temperatures that exceed 50ºCor-20ºC(for example,do not leave the battery of electric scooter and other batteries in cars in summer time on the hot sun ),do not leave the battery near fire .As a result of these actions may deteriorate the battery,overheating and can even cause inflammation.
- Page 14 Parameters Item No. ES8501 Charger voltage 100 - 220 V (In) / 36 V (Out) / 2A Motor 250W brushless motor Charger time 3-4 hours Battery Voltage 36V lithium battery Unfolding size 1120 x 430 x 1165 mm Battery capacity 6Ah/8Ah/10Ah Folding size 1120 x 445 x 430mm...
- Page 15 Warranty Warranty service is carried out in accordance with the law on 《consumer rights》and the 《Law on the quality of products》.The warranty service includes: Recommendation:use the packaging for safe transport of the device.We recommend keeping the original packaging within 15 days after recepit of goods. Name information on warranty maintainance Term...
- Page 16 Authorized maintenance,misuse,collision,negligence,abuse,intake,accident.Improper use of non-product accessories,or tear up the modified label,anti-counterfeit mark. The warranty period has expired; 3.Damage,cause by force majeure; Failures,which do not correspond to the 《List of faults》of Ecorider service center; A failure of the device or its components from the 《Fault list》,which arose in connection with the human factor,and which interfere with normal operation.
