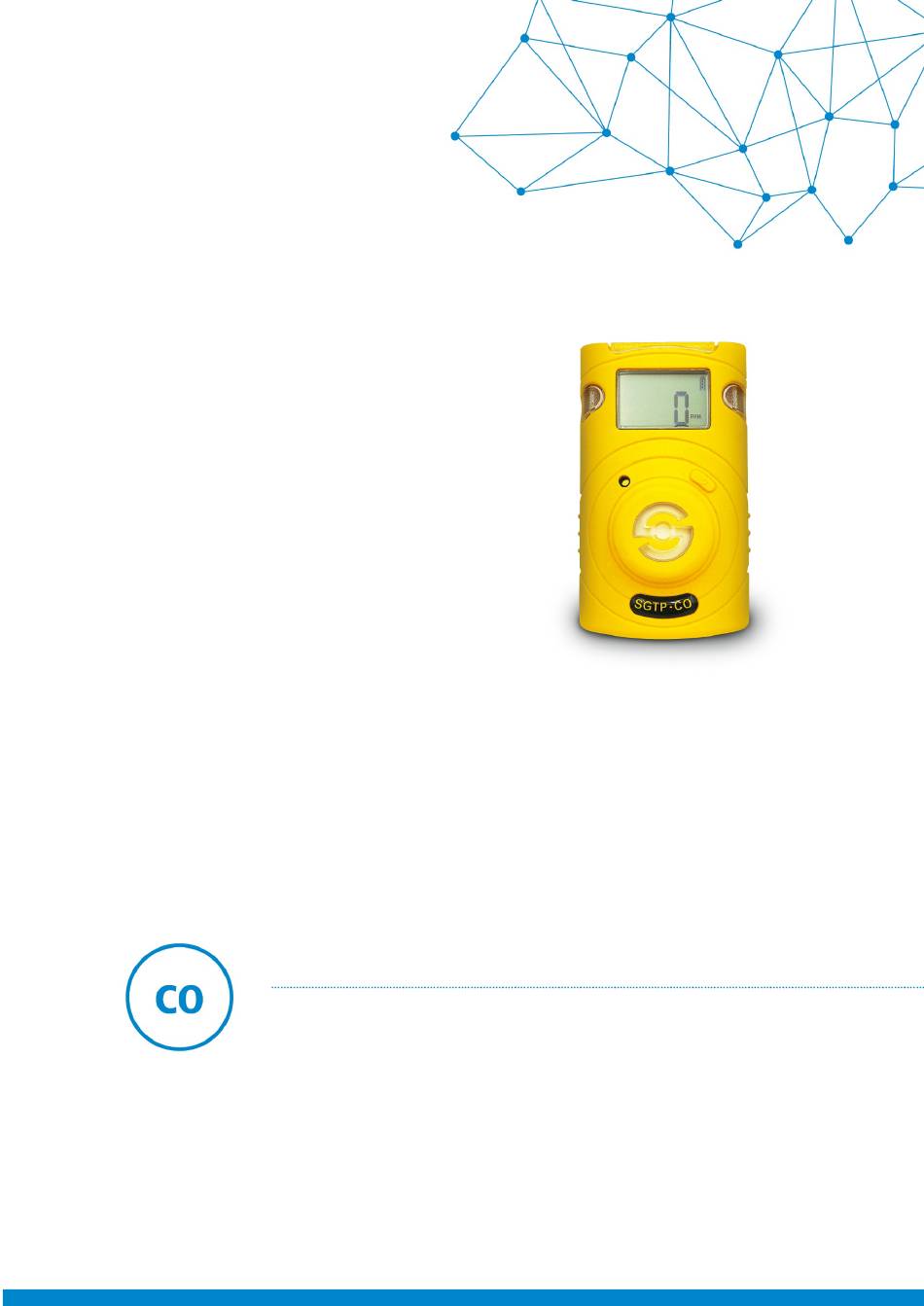

- Page 1 USER MANUAL SGTP-CO CARBON MONOXIDE DETECTOR...
- Page 2 User manual...
-
Page 3: Table Of Contents
Table of Contents Description ................................ 4 Warning ................................4 Caution ................................5 Product overview ............................... 6 Activation & deactivation ............................ 7 Mode ................................8 Measuring mode ............................8 Display mode ............................. 8 Alarm Activation & Setting Alarm set points ....................8 Event log ................................ -
Page 4: Description
1 Description SGTP-CO is a portable single gas detector designed to detect the presence of CO gas in the ambient environment. SGTP-CO has a replaceable gas sensor and battery, giving an unlimited lifetime of operation. When activated, SGTP-CO continuously monitors ambient air for the presence of carbon monoxide (CO) and alerts the user to potentially unsafe exposure with LED, vibrating, and audible alarms in the event that gas concentration exceeds alarm set points. -
Page 5: Caution
3 Caution Before operating this device, please read the manual carefully. This device is not a measurement device, but a gas detector. If calibration and self-test fails continuously, please do not use the device. Before use, please check the activation date, and if the activation date is past, please do not use the device. -
Page 6: Product Overview
4 Product overview IR port LCD display Alarm LED Buzzer Button Gas sensor Gas type LCD display symbol Alarm Remaining month Low alarm display Remaining day High alarm display Remaining time (hour) Stabilization success Max peak value Stabilization failure Min peak value Fresh air calibration Measurement unit Standard gas calibration... -
Page 7: Activation & Deactivation
5 Activation & deactivation In a safe environment, when pressing and holding the button for 3 seconds, gas type and firmware version (ex. v2.2) will be displayed. For 10 seconds countdown, the device will be stabilized. After stabilization is completed, “V” icon will appear on the display screen and the device will move to Measuring. -
Page 8: Mode
6 Mode 6.1 Measuring mode When activated, in Measuring mode, gas concentration will appear on the screen. Oxygen concentration is displayed in percent by volume (%Vol) and toxic concentration is displayed in parts per million. (PPM). %Vol 6.2 Display mode In Measuring Mode, by pressing button for one second, the following ICONs will appear in order. -
Page 9: Event Log
7 Event log Last 30 events are stored on a device. Once more than 30 events are stored, the log events are removed automatically in the order starting at Event 1. Each alarm event records followings: Types of alarms (1st or 2nd) / Alarm concentration in ppm or % / Peak concentration 8 Calibration Initial calibration is performed on all devices prior to shipment. -
Page 10: Remaining Calibration Day
8.2 Remaining calibration day Initial setting. The default day will be 180 days. To check the remaining day, press the button until the above image is displayed. Calibration should be performed in a fresh-air environment that is free for any influence of other gases (since calibration is assumed to be performed in an environment with 20.9% of Oxygen). -
Page 11: Return To Measuring Mode
8.4 Return to measuring mode In the standard calibration mode , by pressing the button for a second, the fresh air calibration, standard calibration, and ESC will appear on the display consecutively. In the ESC mode, press the button for 3 seconds, the device will be get out of the calibration mode. And press the button one time, it will return Measuring mode. -
Page 12: Tests
9 Tests 9.1 Self test The default of Self-Test is N/A, and the interval is 8hr~20hr, or N/A. To initiate the self-test, please set the self-test interval via the IR link. After the setting interval is activated, STS message will flash. (The message will flash until users perform the Self-test.) Once you press the button, it will test buzzer, LED, Vibration, LCD, 1ST alarm, and 2ND alarm. -
Page 13: Sensor And Battery Replacement
10 Sensor and battery replacement It is absolutely prohibited to replace battery at potential explosion or dangerous regions. Replace the battery in a clean environment, which has no hazardous gases. Replacement of components can invalidate the intrinsic safety function. It is recommended to have the sensor and the battery changed by an authorised technical centre. -
Page 14: Specifications
11 Specifications Model SGTP-CO Measuring range 0 - 500 ppm Sensor type Electrochemical cell Measurement Diffusion Display LCD screen Alarm Audible alarm, 90 dB at 10 cm, Red Flashing LEDs, vibration alarm Event log Recent 30 alarms Manufacturer: Vitzrocell / P/N: SB-AA02(P) / System: Lithium Primary Battery Battery Nominal voltage: 3.6V / Nominal capacity:... -
Page 15: Certificates
12 Certificates Intrinsic Safety The detector is in conformity of the following standards IECEx : Ex ia II C T4 Ga IECEx KTL 19.0019X ATEX : 2198 II 1 G Ex ia IIC T4 Ga IP67 KRH 19 ATEX 1022X Directive 2014/34/EU KCS: Ex ia IIC T4... - Page 16 Distributed by Sauermann ZA Bernard Moulinet - Rue Koufra 24700 Montpon Ménestérol - France T: +33 (0)5 53 80 85 00 www.sauermanngroup.com...
