Votronic D+ Simulator Pro Installation And Operating Instructions Manual

Installation and operating instructions
D+ Simulator Pro

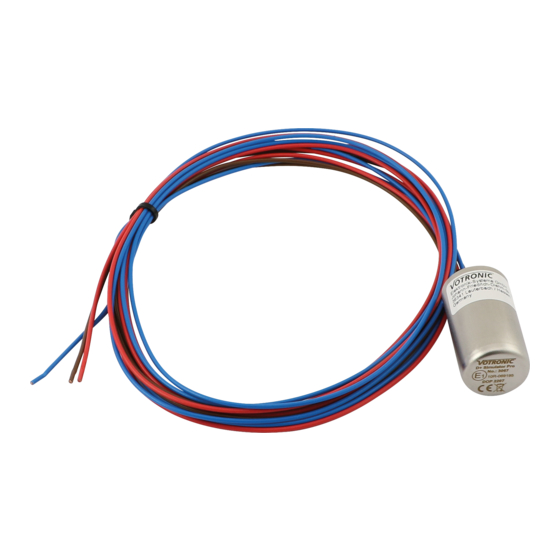

The VOTRONIC D+ Simulator Pro (hereinafter referred to as D+ Simulator) is used to simulate a D+ signal
on vehicles with a combustion engine, e.g. motorhomes or special vehicles.
If consumer units are only supposed to be operated with the engine running or the vehicle and starter
battery classically interconnected for charging purposes, the D+ signal on the alternator is used to
activate this.
If this is not accessible or not present on newer alternators, the VOTRONIC D+ Simulator generates this
signal by detecting the vibration from the running engine.
It works independently from the alternator's charging mode and is therefore particularly suitable for
vehicles that have an alternator management system, which may be, for example, Euro-6-vehicles.
With its low power consumption of less than 3mA, it meets the requirements of DIN EN 13976.
The VOTRONIC D+ Simulator is fully automatic, maintenance-free and offers the following functions:
• Switch output: max. 0.3 A (+ switching, overload-protected and short-circuit proof)
• Switch-on delay approx. 4 seconds to prevent faulty activations
• Adjustable, additional voltage monitoring
• Adjustable switch-off delay
• Device status displayed on three-colour LED
• Low intrinsic consumption
• Suitable for 12 V and 24 V systems.
The D+ Simulator is not designed to operate safety-relevant components or devices!
Observe the safety regulations!
Please fully read these installation and operating instructions before starting with the
Connection and start-up process.
No. 3067
