Votronic 20 K-WC Quick Manual

Tank Electrode 20 K-WC
The tank transmitter had been designed for precise level measuring of the feces tank cassette in campers,
caravans and boats, thus allowing foresight planning of the disposal.
Measurement of the level is effected fully-automatically without mechanically moving parts according to the
capacitive method of measurement, and it is transferred to the display unit via a three-core cable with plug-type
connector.
The electronic system is completely sealed and water-tight (IP67), and it is suitable for heavy-duty operation of
flushing the toilet cassette.
Tank measuring sensor, suitable and required for VOTRONIC tank displays, 1 piece per tank:
Tank Display Units:
 Sewage Water Tank Display S
 Feces Tank Display S
 Info Panel Pro
 Votronic VBS 2 Bus System
 Votronic VPC System
 Previous Votronic Tank Displays since 1987
Brief Instruction:
Produce a mounting hole at the tank with Ø 38 mm (hole saw) and burr the hole.
1.
Measure the clear tank height inside and set it at the scale.
2.
Cut both measuring sticks to the measured length observing a clearance of 10 - 20 mm to tank bottom).
3.
Reinsert the insulating cap on the insulated stick (burr it and observe the tightness).
4.
Insert the delivered sealing, insert the tank transmitter from above into the mounting hole, insert the mounting
5.
ring and fasten it using the enclosed 8 stainless steel screws.
Connect the delivered 3-pole tip jack to the display unit and install it at an easily accessible location in the vehicle's
6.
mounting slot.
Shorten the connection cable of the transmitter to the desired length and connect the delivered 3-pole connector.
7.
Insert the delivered, self-adhesive holding clip for the connector at a suitable location on the cassette (transport).
8.
Ready for start-up.
9.
Tank Height 12 - 24 cm, 12 V and 24 V
Order No. 12 V
All Types
All Types
All Types
Order No. 24 V
5313 5313
5315 5315
5330 6330
All Types
All Types
All Types

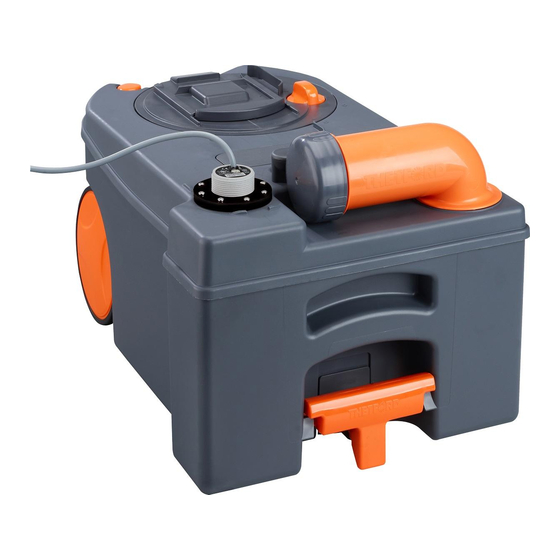

For remote level measurement the Tank Electrode
K-WC is installed directly at the cassette. It is suitable
for:
 Fresh water (if applicable, please observe the
Guidelines for Drinking-Water Quality
DIN 2001-2)
 Sewage water, grey water
 Feces-Sewage Water
 Plastic tanks, any material
 Metal tanks (aluminium, steel, stainless steel,
etc.)
 Adjustable to tank heights from 12 cm to
24 cm.
Functioning:
The level in the tank is measured capacitively. The
insulated stick (probe) and the surrounding water
form a kind of "capacitor", the value of which is
growing with the level, and which is measured by
the electronic system. The contact to the water as
"antipole" is effected by a stainless steel stick.
Order-No. 5555
