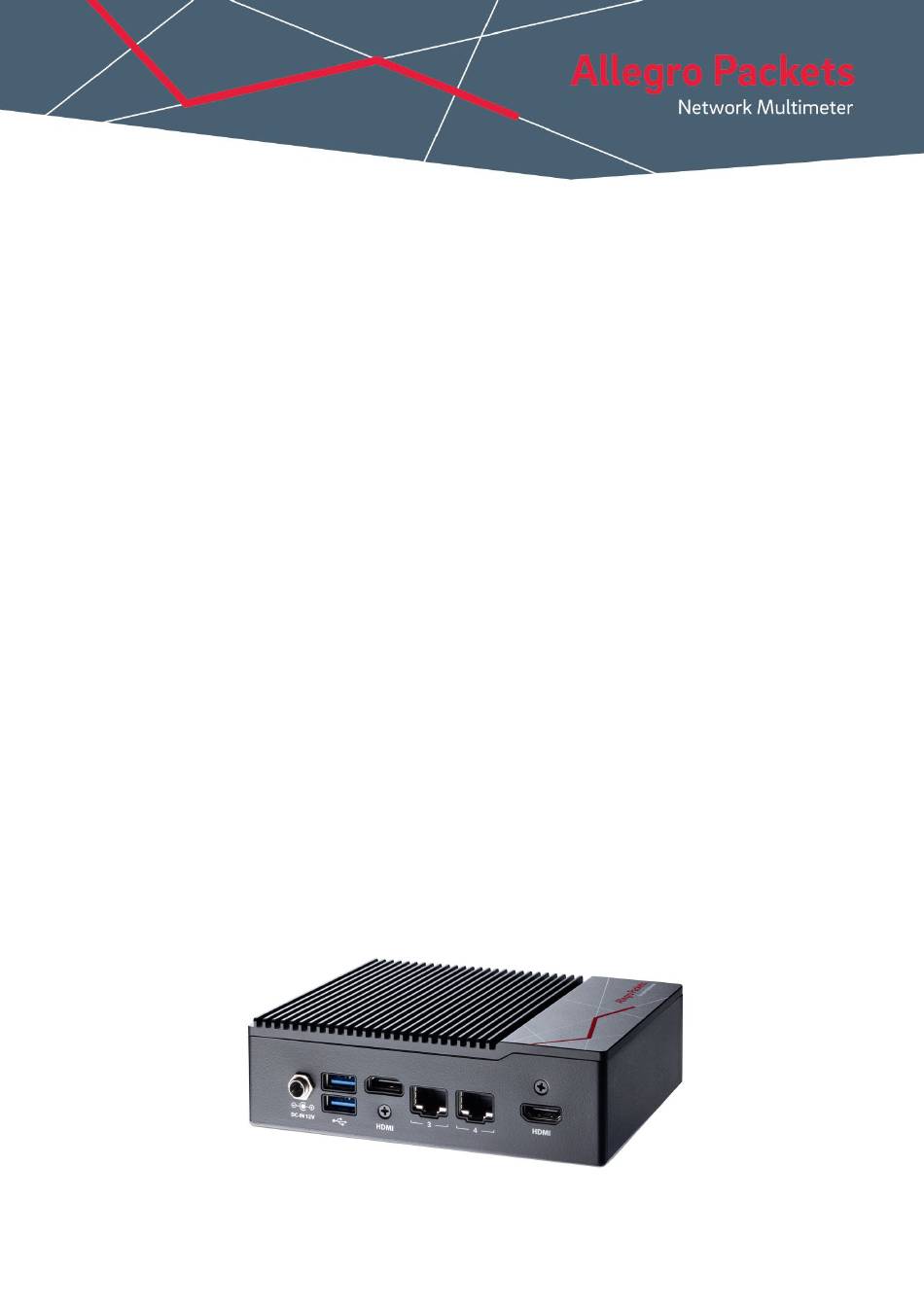

Allegro Network Multimeter 500 Installation Manual

Advertisement

Installation Guide
Allegro Network Multimeter 500
Default Settings
LAN:
DHCP client
Wi-Fi SSID: allegro-mm-(see bottom label)
Wi-Fi URL: https://allegro/ or https://192.168.4.1
Overview
The guide contains the following sections:

1. Package Contents

5. Configuration Reset and Firmware Update
1. Package Contents
The Allegro Network Multimeter package contains the following items:
1 x Allegro Network Multimeter 500
1 x Power supply
1 x Power cable
Wi-Fi WPA2 key:
Web interface user name:
Web interface password:
1 x Wi-Fi USB adapter (already pre-installed)
1 x Installation Guide
Allegro-MM
admin
allegro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Network Multimeter 500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Allegro Network Multimeter 500

  • Page 1 4. Management Interface Configuration 5. Configuration Reset and Firmware Update 1. Package Contents The Allegro Network Multimeter package contains the following items: 1 x Allegro Network Multimeter 500 1 x Wi-Fi USB adapter (already pre-installed) 1 x Power supply 1 x Installation Guide...
  • Page 2 2. Hardware Deployment 2.1. Management Access (Control Plane) Step 1: Connect power supply  power supply Step 2: Connect management LAN Alternative: Insert Wi-Fi adapter to any of the two USB ports   MGMT LAN MGMT WLAN By default, for LAN, the device will query an IP address via DHCP dynamically from your network. By default, for Wi-Fi, the device will open an Access Point so smartphones, tablets, or laptops can connect to the Access Point and access the web interface.
  • Page 3 2.2.2. Sink mode Received packets will be processed, but not forwarded. Connect the Network Multimeter to a hardware TAP by connecting both TAP interfaces to the device. Alternatively, a switch or router mirror port can be connected to any of the device network interfaces: ...
  • Page 4 ‘Manual’ link in the menu. Getting help: Please send an email to support@allegro-packets.com or call +49 341 59 16 43 54 Allegro Packets GmbH | Internet allegro-packets.com | Installation Guide – Allegro Network Multimeter 500 © 2020 All rights reserved...
