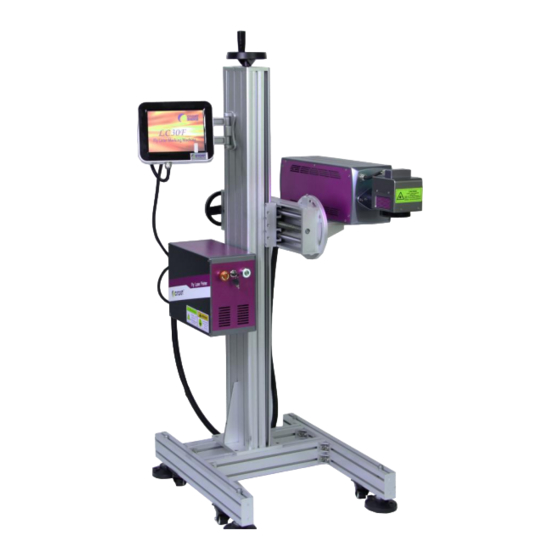

- Page 1 CYCJET Fly Laser Printing Machine Manual (V1.6.16) SHANGHAI YUCHANG INDUSTRIAL CO., LTD CYCJET' CL Series Manual V1.6.16...
- Page 2 Part I User’s Guide for the Machinery CYCJET' CL Series Manual V1.6.16...
- Page 3 Further, CYCJET does not assume responsibility for use of the information contained in this document or for any infringement of patents or other rights of third parties that may result from its use.
-
Page 4: Installation And Commissioning
Don’t be close to the laser when it working. If anything wrong, please ask the professionals to deal with. If the laser decay and weaken, please turn off the machine first, then re-plugged the USB line between the PC and control card testing. 5. Normal Fault Checking: CYCJET' CL Series Manual V1.6.16... - Page 5 If the carving lines are out-off-straight, please check: If the marking head loosening If the machine doesn’t connect the earth wire If there is any external electromagnetic interference Pic2. Interal installation Pic3. External installation CYCJET' CL Series Manual V1.6.16...
-
Page 6: Safety Instruction
Board. 6.Color Touch Screen II. Safety Instruction: The CYCJET Laser Model CL Series is a Class IV laser product. This laser emits about 20/30 Watts of invisible laser radiation in the optical band near 1064 um. Avoid eye or skin exposure to direct or scattered radiation emitted from the optical output. -
Page 7: General Safety Instructions
DC power source is used (24 VDC). Failure to use the correct voltage could cause damage to the instrument. WARNING: No operator serviceable parts inside. Refer all servicing to qualified CYCJET personnel. To prevent electrical shock, do not remove covers. Any tampering with the product will void the warranty. - Page 8 CAUTION: Use of controls or adjustments or performance of procedures other than those set forth in this Guide may result in hazardous radiation exposure. CYCJET' CL Series Manual V1.6.16...
- Page 9 Part II User’s Guide for Control System CYCJET' CL Series Manual V1.6.16...
- Page 10 1.Painting interface File operation save Save as open create a new file Into hibernation, then Undo click the screen to wake up. (Note: it is not off state) CYCJET' CL Series Manual V1.6.16...
- Page 11 Zoom bar Zoom in the Reduce the size of contents the view area the view area Revert to the Enter system view's settings interface original area Start light, preview graphics. CYCJET' CL Series Manual V1.6.16...
- Page 12 PLT vector file import time, date, serial number and other new. Barcode generation tools Edit barcode attributes Text content editing delete Edit page object list Coding delete, copy, copy files by clicking on the management. Operating tools CYCJET' CL Series Manual V1.6.16...
- Page 13 Move Downward move to the left move to the right mobile Select graphics, click copy, then click on the blank space, copy the same graphics. Multiple choice graphics Select all graphics Fill the graphic settings CYCJET' CL Series Manual V1.6.16...
- Page 14 Scale bar Height adjustment Width adjustment Character radian adjustment Lock solution or open, corresponding to the same regulation xy, and were adjusted. Adjust the accuracy of the operation CYCJET' CL Series Manual V1.6.16...
- Page 15 Object list Conversion function：When some texts overlap or a text is not in the view area，click conversion button into the area where the text is in and select the text. CYCJET' CL Series Manual V1.6.16...
- Page 16 New text section toolbar Text editing interface: Text content display, text segment list, function keys. Text content display bar: Displays the list of input texts. Font selection: Font height, spacing, line spacing, coordinate center information editing: CYCJET' CL Series Manual V1.6.16...
- Page 17 Function keys: : Insert fixed text. ：Insert the date text. ：Insert time text. : Insert the serial number text. : Insert txt file. : Edit serial communication files. : Edit shift information file. CYCJET' CL Series Manual V1.6.16...
- Page 18 :Modify the currently edited text segment :Delete the currently edited text segment. :Save the current edited text, and exit the current interface Cancel the current edit text, exit the current ： interface. Keyboard input method: CYCJET' CL Series Manual V1.6.16...
- Page 19 : Enable figures, punctuation input. Font preview selection interface Font preview selection interface, you can preview the font selection font is asfollows: Select the file in the drawing interface, click the Font icon, enter the font library. CYCJET' CL Series Manual V1.6.16...
- Page 20 Date Offset: How many days to offset from the current time. If the current time is 2014/7/28, enter 2 Time content will become 2014/7/30. CYCJET' CL Series Manual V1.6.16...
- Page 21 Cycle: checked represent the painting is over and restart painting. Cancel the prefix： Banning the use of filling symbols. for example, edit a three digit number 000, after checking cancel the prefix，the value of painting become 0. CYCJET' CL Series Manual V1.6.16...
- Page 22 End of the file to stop marking: Coding to the last line of the file will not start over. Start line: start from the current line Coding, Coding can also be used before the query for progress. CYCJET' CL Series Manual V1.6.16...
- Page 23 1.9 Save file interface By selecting the top button，user can save file in the internal storage，SD card，USB storage. CYCJET' CL Series Manual V1.6.16...
- Page 24 Code39 is consist of Arabic numerals. Interface is mainly aimed at the width of the barcode height and margin Settings. The margin in the case of reverse is effective. In order to bring out, some color material need to select reverse painting. CYCJET' CL Series Manual V1.6.16...
- Page 25 B character set include digital, lowercase letters, and some special characters. C only include digital character set, but compress coding width. It is recommended to use the Auto, which is optimal compression bar code. CYCJET' CL Series Manual V1.6.16...
- Page 26 A unit takes up a square side length. Proportional Circle： In the area of occupied by printing. Outer Ring Number: In reverse, the outer ring takes up the number of turns. Count： The number of painting small round. CYCJET' CL Series Manual V1.6.16...
- Page 27 Start button, there must be a text segment, click on the effective Printing , otherwissse button action is prohibited. Manual printing button. In the code running state, click the code button. click once at a time. CYCJET' CL Series Manual V1.6.16...
- Page 28 Settings interface 2.2.1Printing parameters Jumper Speed: The galvanometer rotational speed when jumping. Mark Speed: The galvanometer rotational speed when bright dipping Power：Laser output power when printing. The greater the power, the deeper the dozen. CYCJET' CL Series Manual V1.6.16...
- Page 29 If encounter in the Y direction , it can be solved by axis transformation. flight parameters with encoder and flight parameters (simulated flight) without encoder. Simulation：Check represents the flight mode without encoder. Otherwise, represent external CYCJET' CL Series Manual V1.6.16...
- Page 30 Encoder Test： display the number of pulses of encoder . 2.2.3optical paramete XY Axis transform： change the physical output. X aixs inversion: the mirror of X axis . Y aixs inversion： the mirror of Y axis. CYCJET' CL Series Manual V1.6.16...
- Page 31 X axis is 20/25, The proportion coefficient of the Y axis is 20/25 2.2.4Laser Laser Settings include optical fiber and CO2 laser. CO2 laser settings include first pulse preionization and inhibition. The first pulse suppression is in the presence of focused IPG laser settings include startup latency and frequency limits.
- Page 32 External trigger must be checked on the software to take effect. There are two kinds of external trigger delay model: Time delay and pulse delay. Can not choose the pulse mod without encoder notice：1000000us is equal to 1second. CYCJET' CL Series Manual V1.6.16...
- Page 33 The deviation can be modified by setting the starting position. Use Square：Only for the printing square and other text are ignored when selected. mainly used for size and the number of product testing. CYCJET' CL Series Manual V1.6.16...
- Page 34 1. Choose the right type of laser. setting interface-control card-laser. 2. Set the size of the optics. set-optics- Focal length size interface. 3. Detection of X, Y axis is correct or not. Editing a text”ABC”, then set correctly in optics-axis CYCJET' CL Series Manual V1.6.16...
- Page 35 5.4 use of meter mark. 1.First, adjust simulation speed and product according to 5.2 2.Create a text as shown below (Contains the serial number and fixed character "m"): CYCJET' CL Series Manual V1.6.16...
- Page 36 Enter the set interface， pipeline mode of marking mode in control card setting. Pipeline spacing is 1000mm 5. Enter the printing interface，The status bar displays as follows: If any further assistance, please feel free to mail to us by service@cycjet.com to get more supporting. CYCJET' CL Series Manual V1.6.16...
