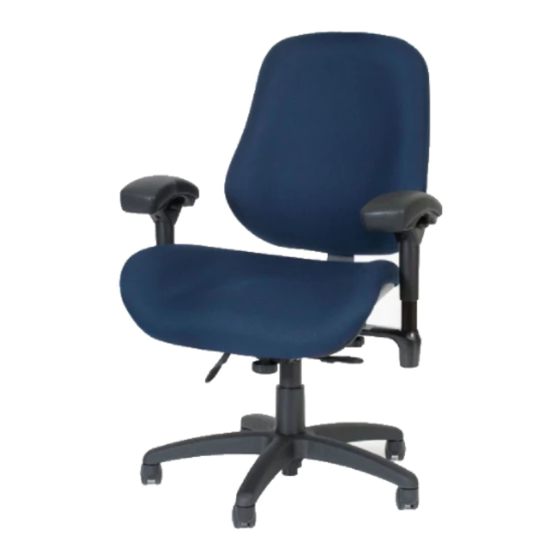

BODYBILT (S2504 & S3504) - INSTRUCTIONS
1. SEAT HEIGHT
Lift the middle lever on the right-
hand side and take your weight off
the seat to raise the height. Remain
seated to lower the height. Release
the lever to lock the seat height.
4. FREE FLOAT TENSION
Twist the knob on the underside of the
chair while in seat rock mode to adjust
the tension of the rocking motion.
Anti-clockwise reduces the tension,
clockwise increases the tension.
2. BACK ANGLE
Lift the back lever on the right-hand
side and take your weight off the
back to bring it forward. Lean back
to move it backwards. Release the
lever to lock the back angle.
5. BACK HEIGHT
First, raise the back to its highest
setting, and then lower it to its lowest
setting. Then lift the back one click at
a time (7 clicks maximum) to the
desired position.
3. FREE FLOAT ACTIVATION
Lift the front lever on the right-hand
side to activate the seat rock. Push
the lever back down to lock the seat
in any position.
6. LUMBAR PUMP (IF FITTED)
Squeeze the bulb repeatedly to inflate
the lumbar support. Press the button
on the bulb to deflate.
