Overview

The RCSN422 code converter converts SensorNet
to RS-422. The converter supports the ADTT16E
controller and MegaPower LT matrix switcher.
Installation
The converter can be placed on a tabletop, or
installed in a rack, under a shelf, or on a wall.

Parts Supplied

Install Kit 0351-1635-01, which includes:
• Mounting Bracket (2)
• Screw, PHP, M3x8 (4)
• Connector, RS-422, 3.5mm, 1x5 (7)
• Connector, Power, 5.06mm, 1x3 (1)
• Connector, RS-485, 5.06mm, 1x2 (1)
• Cable, 16.5ft, 24Vac, 3 Cond., 18AWG (1)
© 2005 Sensormatic Electronics Corporation
SENSORNET TO RS-422 CODE CONVERTER
INSTALLATION GUIDE

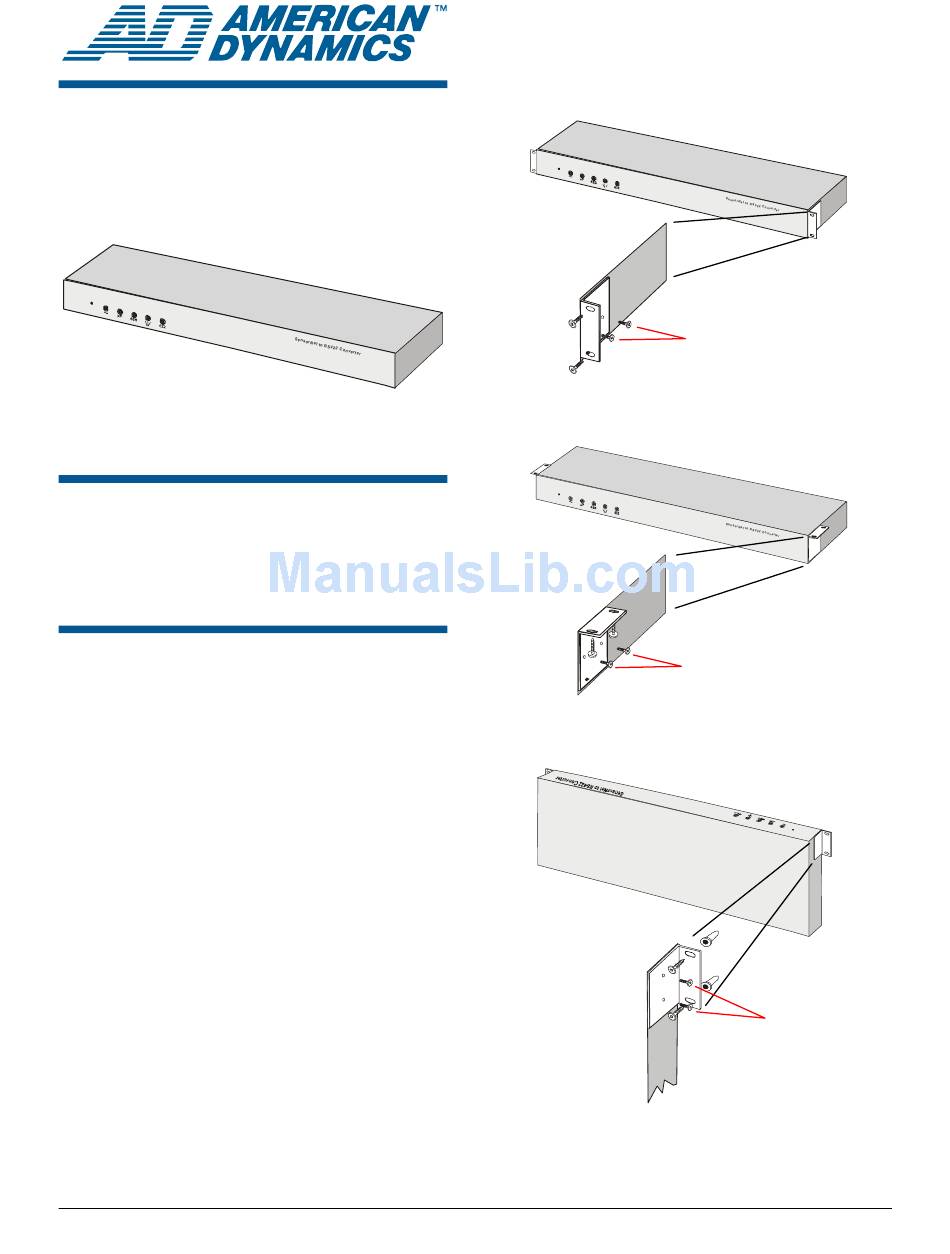

Rack Mount

Under-Shelf Mount
Wall Mount
1 of 7
M3x8 Screws (supplied)
M3x8 Screws (supplied)
M3x8 Screws (supplied)
8000-2593-01, REV. C
