American Dynamics RCSN422 Specifications
American Dynamics RCSN422 Specifications

American Dynamics RCSN422 Specifications

Sensornet to rs-422 converter

Advertisement

Quick Links

FEATURES
Provides a migration
path from VM1 to
ADTT16E
Allows ADTT16E systems
to control existing
RS-422 SpeedDome
Series domes
Class 2 LPS Certification
Universal mount design
Supports four presets per
suitably equipped dome
Supports three patterns
per suitably equipped
dome, including apple
peel
Supports proportional
speed dome control and
dome flip features
Comprehensive
diagnostics with front
panel indicators

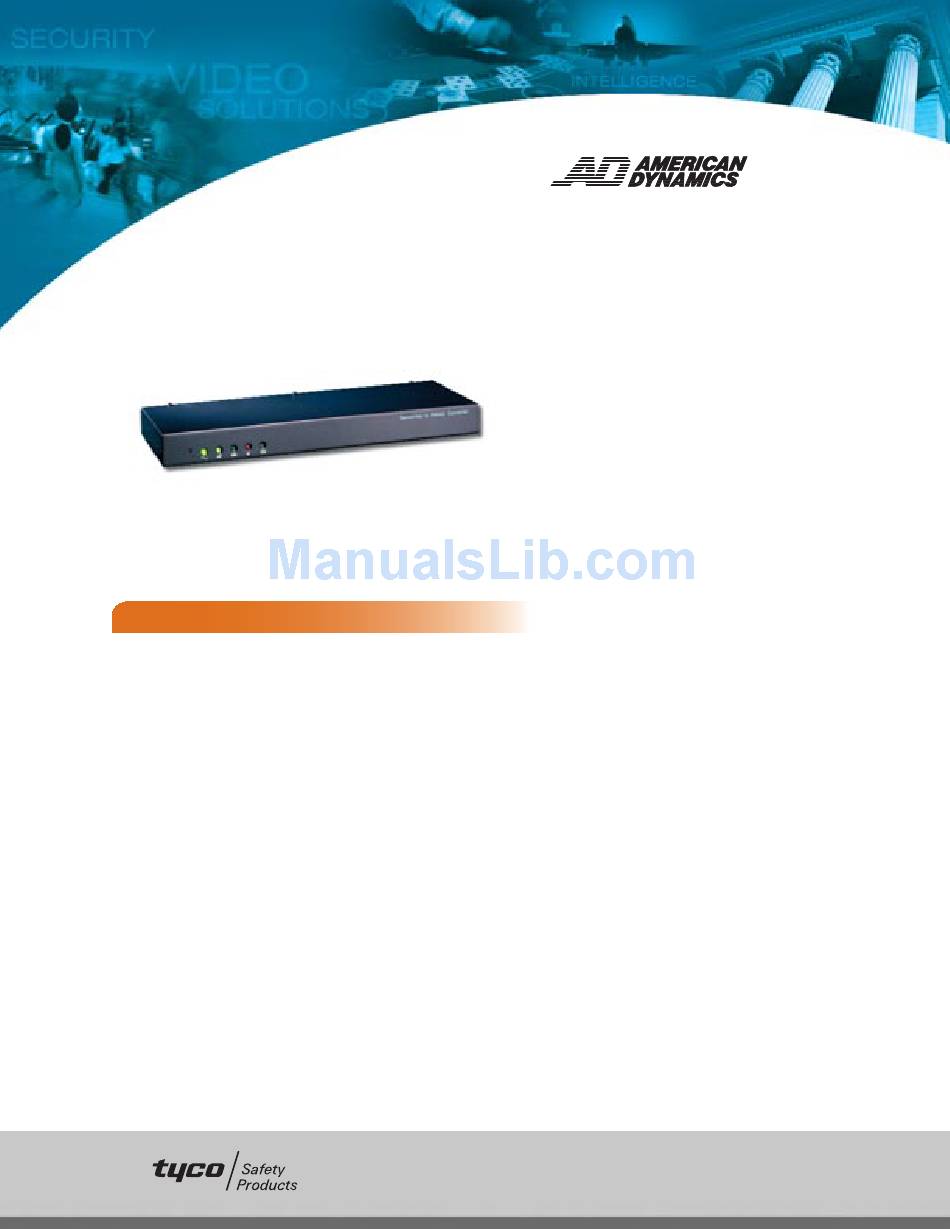

RCSN422
SENSORNET TO RS-422 CONVERTER
The SensorNet to RS-422 Code Converter allows
an ADTT16E controller to control existing
RS-422 SpeedDome
®
Series domes. The
Converter receives SensorNet communication
from the ADTT16E controller and converts it
into RS-422 protocol for use by the domes. This
provides a practical and price competitive
upgrade path from older RS-422 based systems
– in particular the VM1 – to the newer
SensorNet-based ADTT16E controllers.
The Converter permits upgrades without having
to replace existing cabling or domes. This
minimizes additional installation expense,
system downtime and disruptions.
Upgrading to ADTT16E provides proportional
variable speed dome control and intuitive access
to features like dome flip, apple peel, and repeat
pattern. In addition, SensorNet domes can be
added to the system, thus allowing users to take
advantage of SensorNet installations.
The converter includes seven RS-422 output
ports. The ports use pluggable Euro-style screw
terminal connectors, each with a dual color data
LED.
The converter has one SensorNet port to
accommodate the ADTT16E controller and
seven RS-422 output ports for domes and
J-Boxes.
www.americandynamics.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the RCSN422 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Dynamics RCSN422

  • Page 1 • Universal mount design panel indicators • Supports four presets per suitably equipped dome RCSN422 SENSORNET TO RS-422 CONVERTER The SensorNet to RS-422 Code Converter allows an ADTT16E controller to control existing RS-422 SpeedDome ® Series domes. The...
  • Page 2 AMERICAN DYNAMICS RCSN422 SENSORNET TO RS-422 CONVERTER SPECIFICATIONS Model Number RCSN422 ....Code Converter, 120 or 230 VAC (specify at time of order) Operational SensorNet Interface Two decimal rotary switches with knobs for selecting address.
