4
Note:
-Always handle luminaire with care.
Toujours manipuler le luminaire avec soin.
-This luminaire is suitable for wet location.
E
Ce luminaire convient aux endroits mouillés.
-Be sure electrical power is off before installing,
relamping or servicing the luminaire.
S'assurer que l'alimentation est coupée avant
d'installer ou de faire l'entretien du luminaire.
-Only use lamps listed for your product.
Utiliser seulement des lampes appropriés
pour le produit
-This product must be installed in accordance
with the applicable installation code by a person
familiar with the construction and operation of
the product and the hazards involved.
Ce produit doit être installé selon le code
d'installation en vigueur par une personnes qui
D
connait bien le produit, son fonctionnement
ainsi que les risques inhérents.
-At the opening of the box, all damage must
be filled with the carrier.
Tous les dommages observés à l'arrivée doivent
être adressé au transporteur.

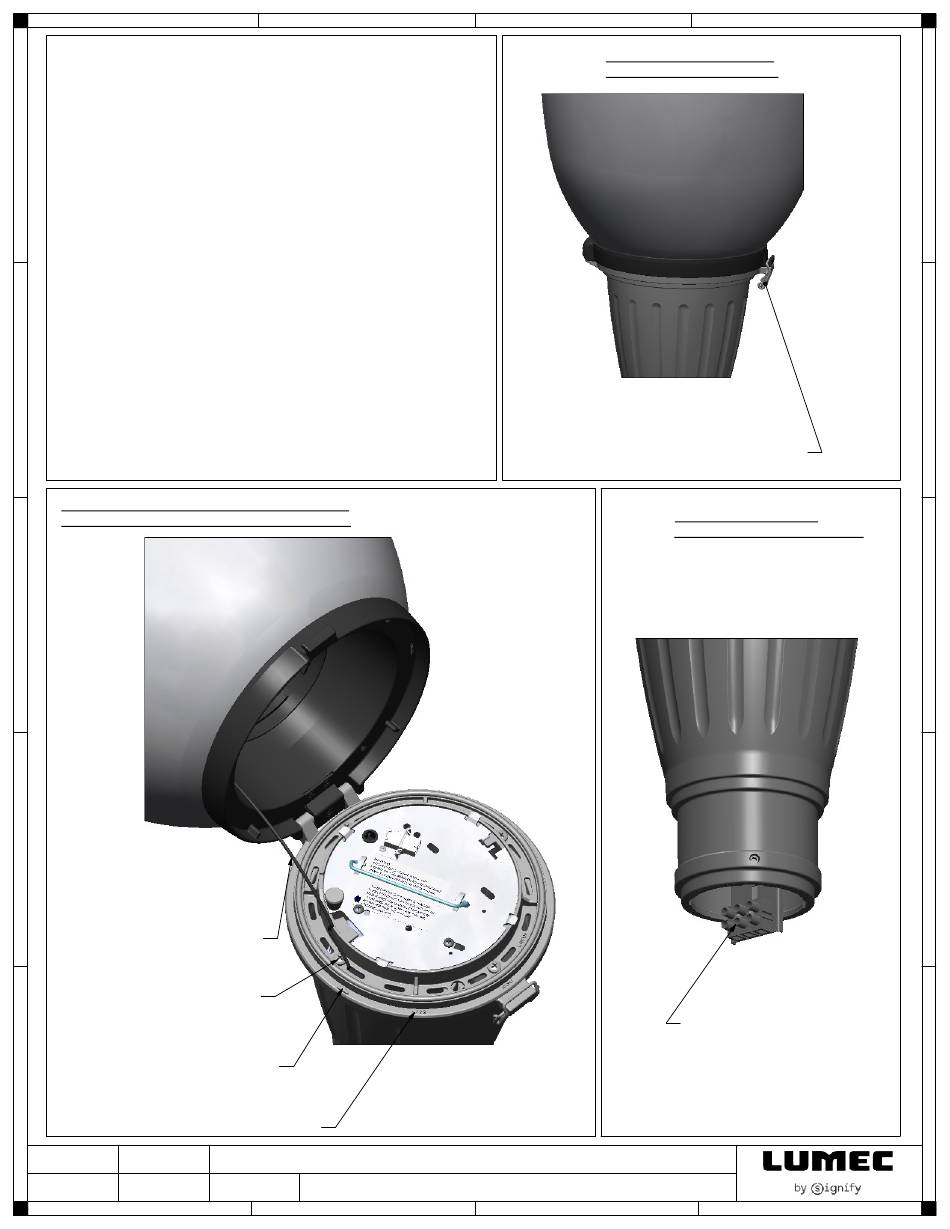

Initial Orientation of the optical system
Orientation initiale du systeme optique
C
B
First detach the retaining rod
From the base.
Dégager premièrement la tige
de retenue de la base.
Than release the 4 screws
and rotate the globe.
Puis dévisser légèrement les 4 vis
et tourner le globe.
Always replace the rod on the hole
indicated by the arrow after the
rotation.
Toujours replacer la tige à l'endroit
indiqué par la flêche.
A
Rotate the globe until the "SS" logo is
perpenticularely aligned with the street.
Tourner le globe jusqu'a ce que le logo "SS"
Soit perpenticulaire à la rue.
DESIGNER:
DATE:
LUCIAN
09-22-08
VÉRIF./INSPEC.:
DATE:
4
3
TITRE/TITLE:
ins as lum S55 S56 LED
FEUILLE/
NO DESSIN/
1 DE 2
5013195101
SHEET:
DRWING #:
3
2
Opening the luminaire
Ouverture du luminaire
For maintenance, pull the locking
device and then open the globe.
Pour faire la maintenance, tirer
sur le loquet de verouillage puis
ouvrez le globe.
Option: Connection details
Details de branchements
Connect line wires to the
connector block.
Brancher les fils d'alimnetation
au bloc connecteur.
2
1
E
D
C
B
A
1
