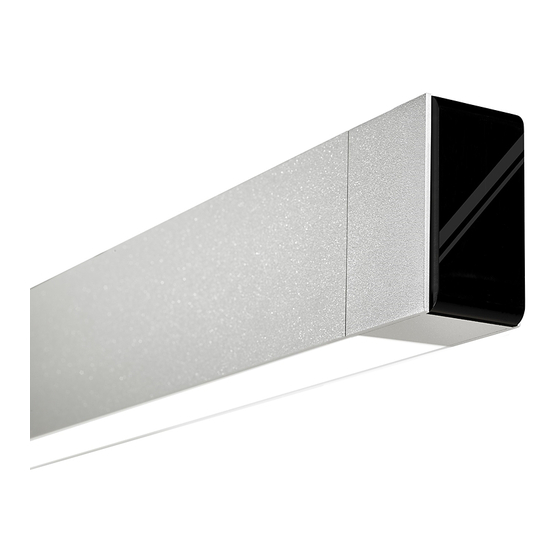

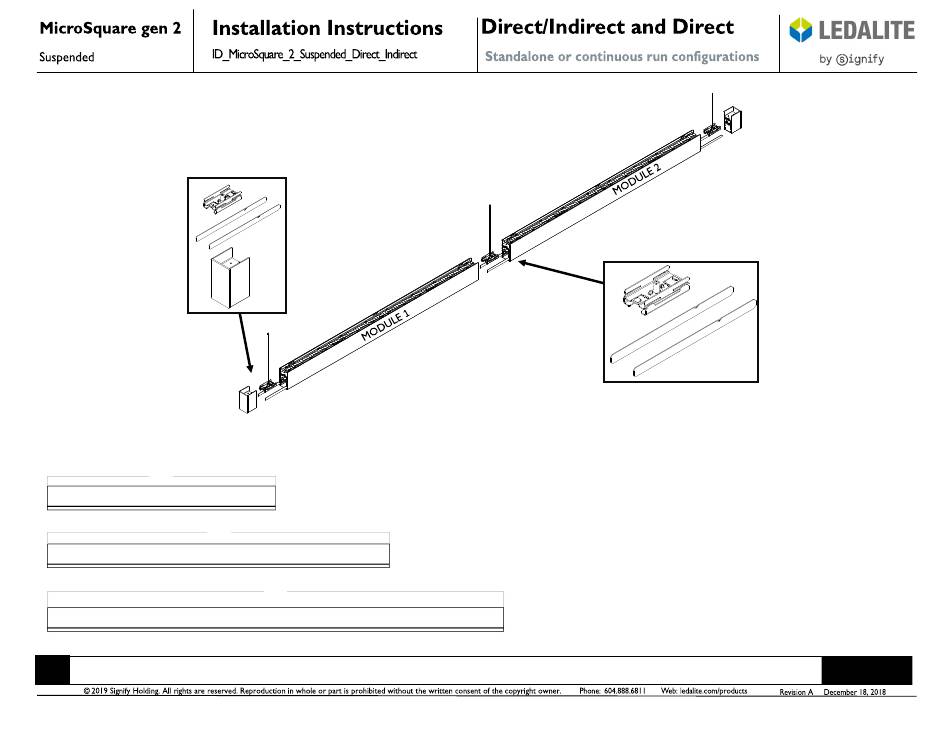

System Overview
These instructions review how to install MicroSquare gen 2 suspended fixtures. MicroSquare 4ft, 6ft and 8ft
modules can be installed as individual standalone units, or they can be joined together to create continuous
runs. The graphics below show the components required to install a typical run of MicroSquare gen 2 sus-
pended fixtures. IMPORTANT: Read all instructions before beginning installation.
MicroSquare gen 2 Endcap Kit(s)
•
Endcap
•
Joiner bracket
•
2x joiner aligners
Module Lengths
MicroSquare suspended fixtures come in 4ft, 6ft and 8ft modules.
Overall module lengths are shown below. Add 2.2" for each
endcap for accurate run length.
48"
4FT Module
72"
6FT Module
!
ATTENTION: Install in accordance with national and local building and electrical codes.
96"
8FT Module
Tools
Required:
•
Philips screwdriver
Mount Spacing
MicroSquare gen 2 fixture modules are designed for exact on-grid
mounting with mounts attached to the joiner assemblies.
MicroSquare gen 2 Joint Kit(s)
•
Joiner bracket
•
2x joiner aligner
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SIGNIFY Ledalite MicroSwuare gen 2
Summary of Contents for SIGNIFY Ledalite MicroSwuare gen 2
- Page 1 System Overview These instructions review how to install MicroSquare gen 2 suspended fixtures. MicroSquare 4ft, 6ft and 8ft modules can be installed as individual standalone units, or they can be joined together to create continuous runs. The graphics below show the components required to install a typical run of MicroSquare gen 2 sus- pended fixtures.
- Page 2 Arrange boxed fixture on floor in specified mounting location, remove fixtures from boxes. Install all ceiling mounting components and vertical aircraft cables using separate installation instruction for Aircraft Cable Mounting (supplied). Clip in Non Power Side of Luminaire Lens Removal Install Suspension Cables and Joiners Symmetric Cross Section Remove lens from fixture and set aside...
- Page 3 Insert Aligning Tabs Clip in Power Side of Luminaire Listen and Feel Click “CLICK” Slide joiner bracket into power entry side of the luminaire. Slide joiner aligners into bottom extrusion Top tabs of the joiner bracket should go detail. Ensure the small bump on the aligner between the extrusion and sheet metal cross is toward the lens.
- Page 4 Listen For Click Tighten Screws Endcap Preparation Install Endcap “CLICK” Tighten the screws alternating between the Remove the bottom cover from the endcap. Install the joiner aligners making sure to keep the small tab toward the bottom. Listen for a click as the joiner two.
