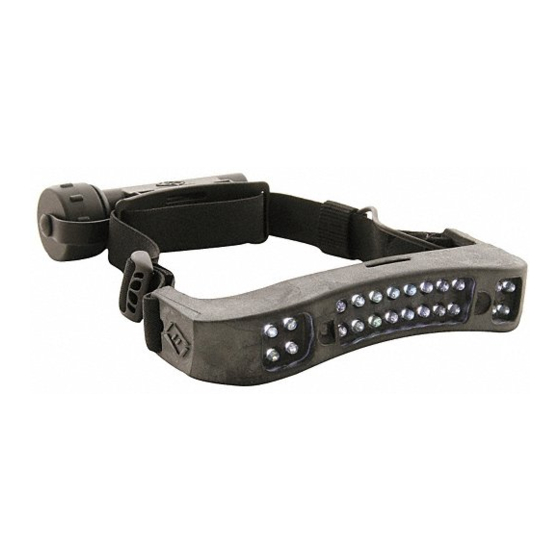

FoxFury Model 200-FF261-2 & 200-FF261-5 Intrinsic Safety Headlamp
UL-913 Listing No. E112432

TURNING YOUR SIGNATURE INTRINSIC LIGHT ON/OFF:

Tap Switch: Once batteries are installed and the battery cap is securely tightened, the tap switch will then control the
ON-OFF function of the headlamp. In case of suspected damage to the headlamp, turn unit off at both the tap switch
and the battery pack cap.
The battery cap can also act as an ON-OFF switch:
To turn ON: rotate CLOCKWISE, ½ to ¾ of a turn past the ON point.
To turn OFF: rotate COUNTER CLOCKWISE, ½ to ¾ of a turn past the initial OFF point to ensure the light remains
OFF.
Light can be turned ON and OFF more conveniently via the Power Switch on top of the light bar, (on left side).
NOTE: Make sure to turn light OFF when not in use.

ACCEPTABLE BATTERY TYPES:

The Signature Intrinsic Lights require four (4) AA batteries each. Alkaline and Lithium Iron are acceptable (1.2 to 1.6V
each).
Alkaline battery types (actual run time will depend upon battery quality and charge):
Duracell Ultra (M3) Copper-Top Alkaline AA batteries,
o
Duracell Copper-Top Alkaline AA,
o
Eveready Alkaline AA batteries,
o
Lithium Iron Sulfate

BATTERY INSTALLATION/REPLACEMENT:

Signature Series
For
Intrinsic models:
1.
Unscrew the cap of the battery compartment.
2.
Install Four (4) each 1.2 to 1.5V AA batteries.
a.
Respect appropriate polarity when installing (the inside of the

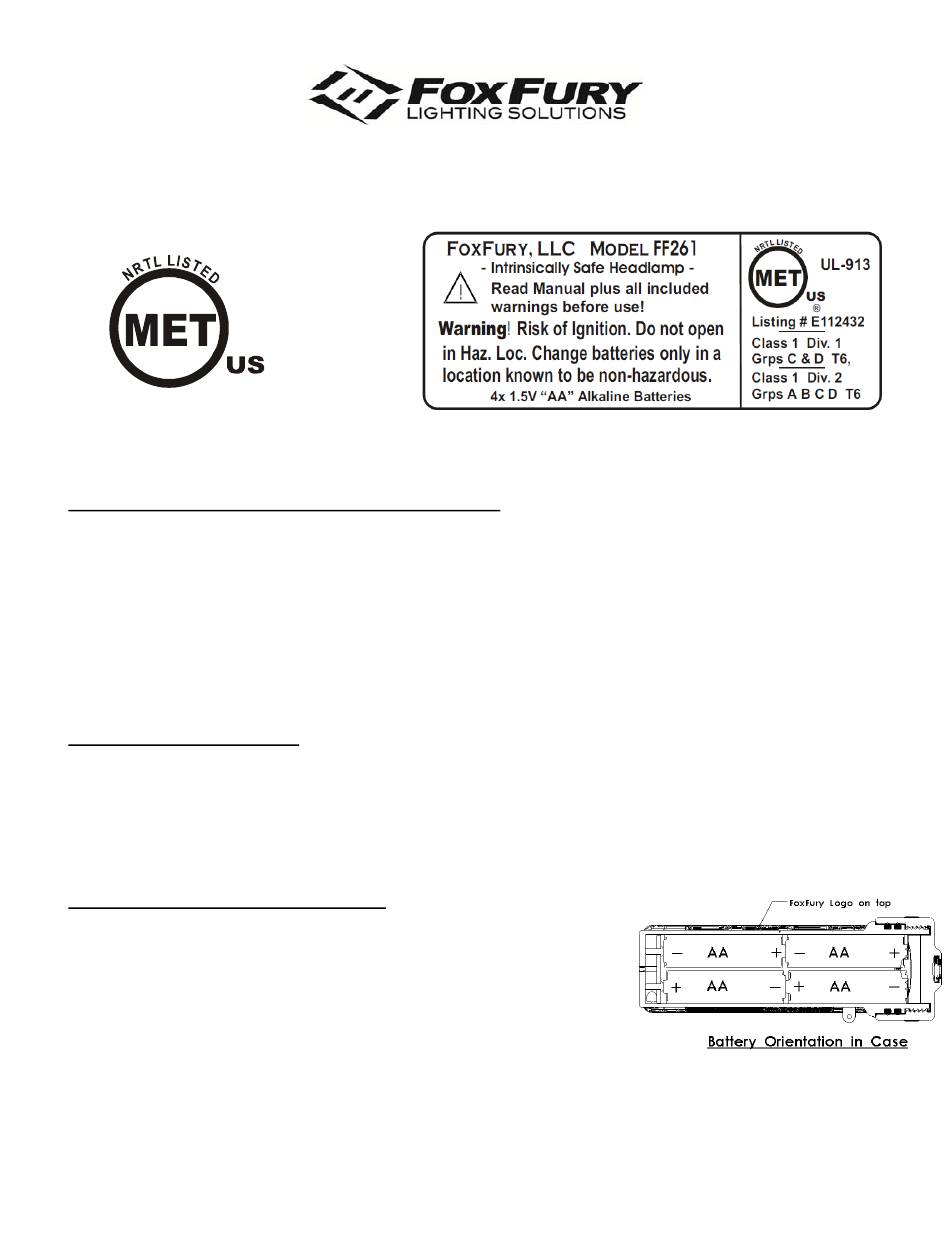

battery pack indicates proper battery placement; see diagram at
right)
3.
Twist cap back on.
a.
To get cap started, press against the battery pack in order to
overcome the O-ring seating compression. You will notice slightly increased friction as you tighten the cap.
b.
NOTE: The dual O-ring gasket seals are necessary to create a gas tight and waterproof seal.
Signature Series
Manufactured by FoxFury, LLC
®
P/N MN1500, or PC1500
P/N E91
(acceptable)
P/N L91, FR6
(Li-FeS
),
, 1.5V,
2
Instruction Manual for
UL Class 1, Div 1, Grps C & D; T6
UL Class 1, Div 2, Grps A, B, C, & D; T6
P/N MX1500
(best)
(good)
.
Eveready
FF261-x INSTRUCTION Sheet_5_14
Page 1
