Vicon CE UTP Series Installation And Operation Manual

Important Safety Warning:
Read and keep these directions
Heed all warnings
Follow all instructions
Do not use this apparatus near water
Clean only with a dry cloth
Install in accordance with the
manufacturer's instructions
This installation should be made by a
qualified service person and should conform
to all local codes
See further safety instructions on page 8
INSTALLATION AND OPERATION MANUAL
CE-(X)UTP
EThErnET-ovEr-UTP/TwisTEd Pair
EXTEndEr wiTh Pass-ThroUgh PoE

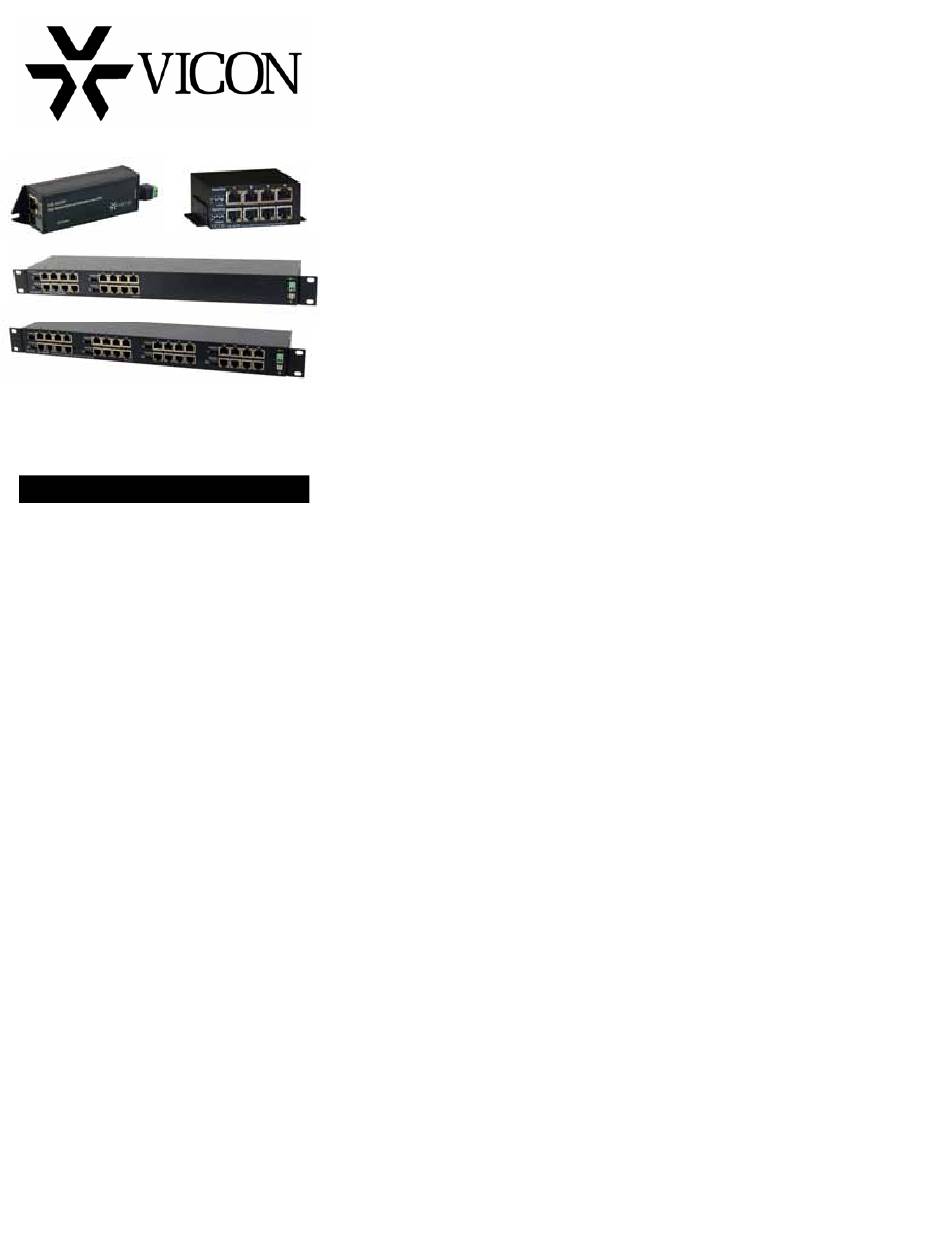

The CE-(X)UTP Ethernet over UTP line consists of four models that support 100 Mbps
Ethernet as well as pass-through Power over Ethernet (PoE) over twisted pair cable
(CAT5, UTP). These models support transmission distances of up to 3,000 feet (914 m)
at 10 Mbps, or 2,100 feet (640 m) at 100 Mbps. The CE-1UTP, the CE-4UTP, CE-8UTP
and the CE-16UTP transport, one, four, eight or sixteen channels respectively. The
IEEE 802.3-compliant Ethernet electrical interface of these Ethernet extenders also
meets the requirements for IEEE 802.3af/at PoE power, passing-through up to 30 watts
of power per port to the powered device (PD). The CE-(X)UTP series may also be used
interchangeably with other Ethernet-over-UTP extenders.
Environmentally hardened to the requirements of NEMA TS-1/TS-2 for most out-of-plant
applications, and true plug-and-play design ensures ease of installation and operation.
LED indicators are provided for rapidly ascertaining the operating status of the device.
See Figures 7 – 9 on page 6 for LED explanations.
Packaged in a rugged aluminum housing, these units are designed for desktop or stand-
alone mounting. The CE-8UTP and CE-16UTP are offered in EIA 19" 1U high rack for easy
installation. See Figures A through C on page 7 for mounting instructions.
See Figures 1 – 8 for complete installation details.
