Vicon CE-4COAX Installation And Operation Manual

important safety warning:
Read and keep these directions
Heed all warnings
Follow all instructions
Do not use this apparatus near water
Clean only with a dry cloth
Install in accordance with the
manufacturer's instructions
This installation should be made by a
qualified service person and should conform
to all local codes
See further safety instructions on pa
INSTALLATION AND OPERATION MANUAL
CE-(X)COAX
EthErnEt-OvEr-COAX EXtEndEr
with PAss-thrOugh POE

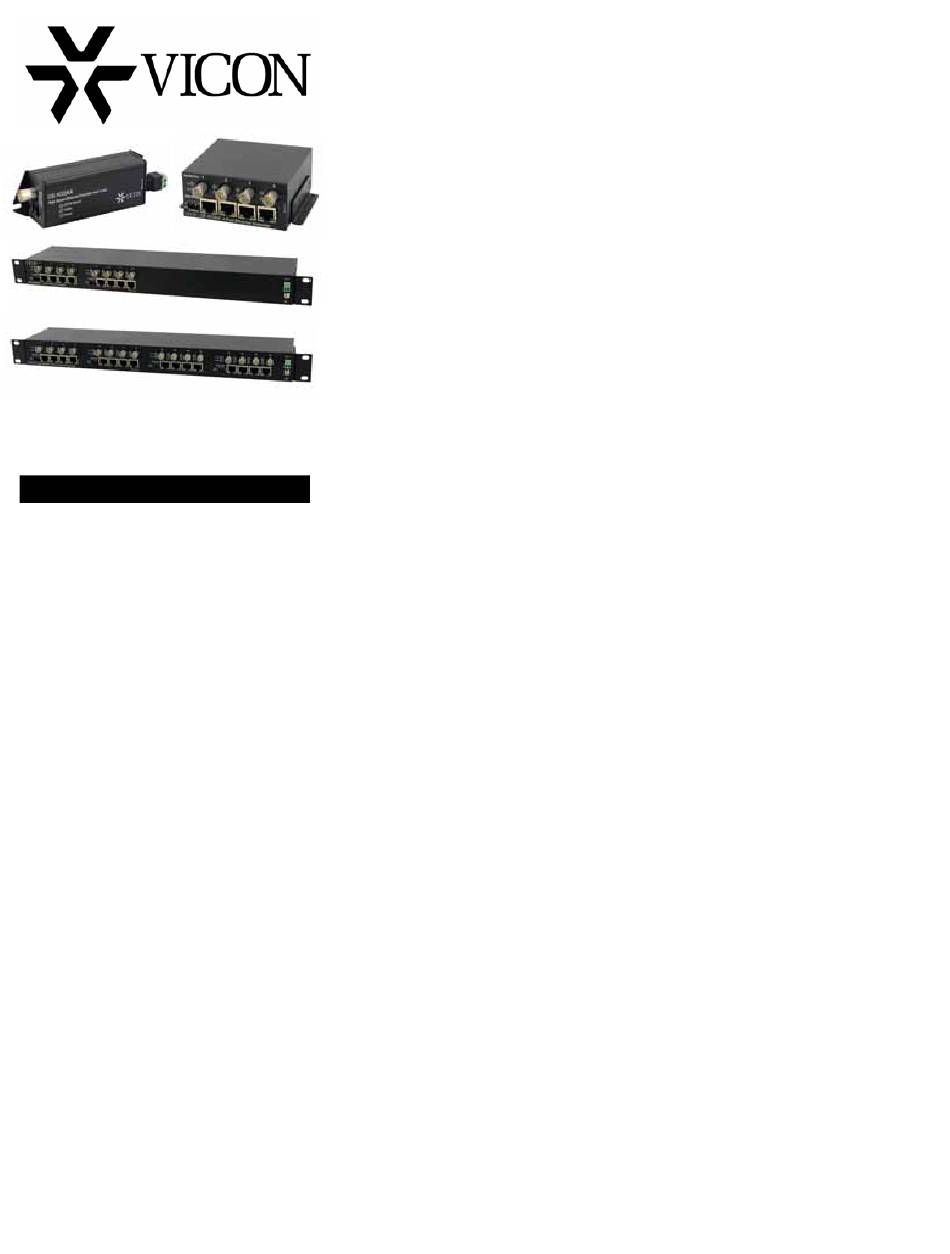

The CE-(X)COAX Ethernet over COAX line consists of four models that support
100 Mbps Ethernet as well as pass-through Power over Ethernet (PoE) over standard
75Ω coaxial cable. These models support transmission distances of up to
5,000 feet (1524 m) at 10 Mbps, or 1800 feet (548 m) at 100 Mbps. The CE-1COAX,
the CE-4COAX, CE-8COAX and the CE-16COAX transport, one, four, eight or sixteen
channels respectively. The IEEE 802.3-compliant extenders also meets the requirements
for IEEE 802.3af/at PoE power, passing through up to 30 watts of power per port to the
powered device (PD). The CE-(X)COAX series may also be used interchangeably with
other Ethernet-over-Coax extenders.
ge 8
Environmentally hardened to the requirements of NEMA TS-1/TS-2 for most out-of-plant
applications, and true plug-and-play design ensures ease of installation and operation.
LED indicators are provided for rapidly ascertaining the operating status of the device.
See Figures 7 and 8 on page 6 for LED explanations.
Packaged in a rugged aluminum housing, these units are designed for desktop or stand-
alone mounting. The CE-8COAX and CE-16COAX are offered in EIA 19" 1U high rack for
easy installation. See Figures A through C on page 7 for mounting instructions.
See Figures 1 – 8 for complete installation details.
Vicon part number 8009-8243-00-00 Rev 0112
Page 1
