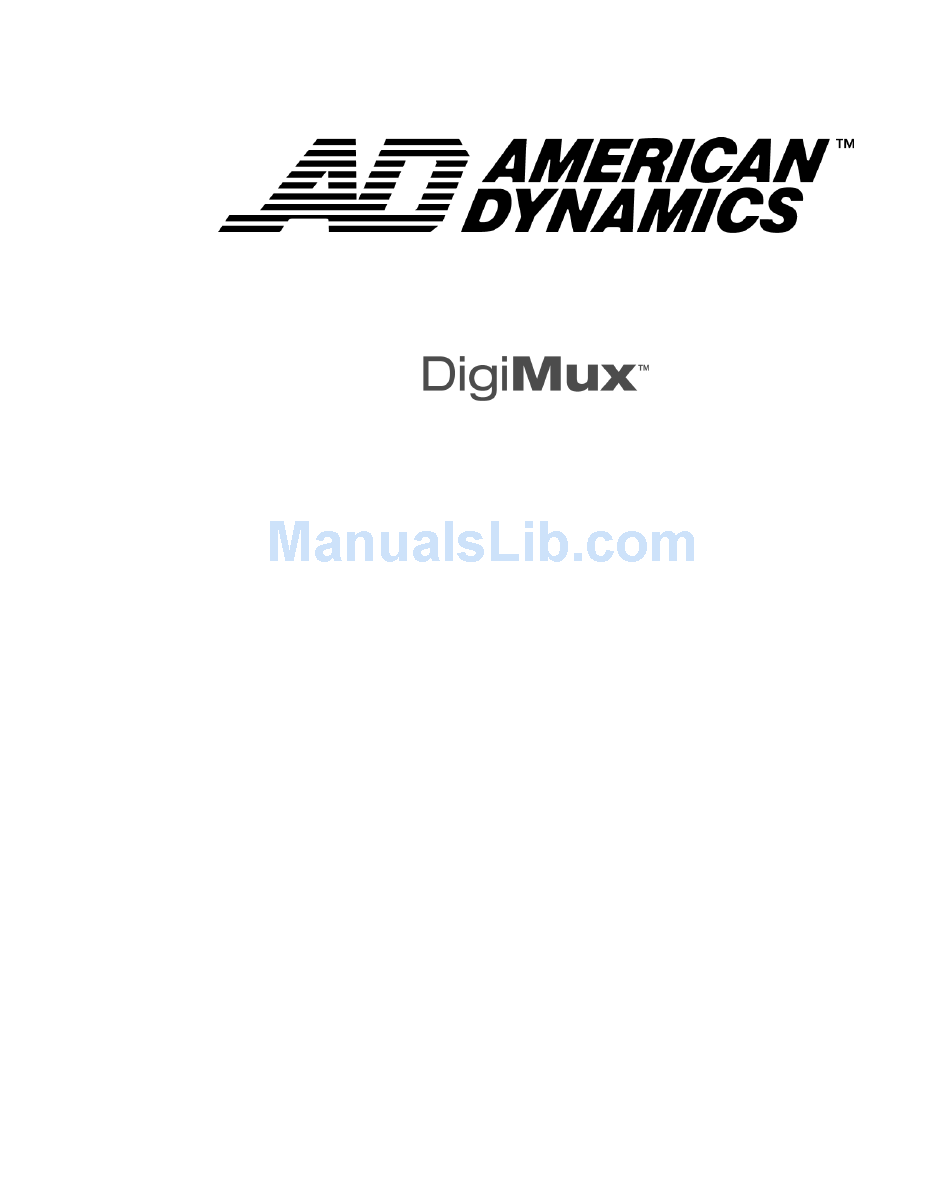

Page 1: Quick Setup Guide
Digital Video Recorder and Multiplexer Quick Setup Guide English Models DG4004, DG4009, DG4016 Part Number 8200-0391-9900 A0... - Page 2 The dealer through whom you originally purchased this product is your point of contact if you need service or support. Our dealers are empowered to provide the very best in customer service and support. Dealers should contact American Dynamics at (800) 507-6268 or (561) 912-6259 or on the Web at www.americandynamics.net.
-
Page 3: Warnings And Cautions
WARNINGS AND CAUTIONS WARNING: TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT INSTALL THIS PRODUCT IN HAZARDOUS AREAS WHERE HIGHLY COMBUSTIBLE OR EXPLOSIVE PRODUCTS ARE STORED OR USED. - Page 4 Quick Setup Guide Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This digital apparatus does not exceed the Class A limits for radio noise emissions as set out in the Radio Interference Regulations (ICES-003) of the Canadian Department of Communications.
-
Page 5: End User License Agreement
END-USER LICENSE AGREEMENT READ THIS LICENSE AGREEMENT BEFORE OPENING THE DISK PACKAGE, INSTALLING THE SOFTWARE OR USING YOUR SYSTEM. THIS LICENSE AGREEMENT DEFINES YOUR RIGHTS AND OBLIGATIONS. BY BREAKING THE SEAL ON THIS PACKAGE, INSTALLING THE SOFTWARE OR USING YOUR SYSTEM, YOU AGREE TO ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT. -
Page 6: Limited Warranty
Quick Setup Guide COPYRIGHT The Software is a proprietary product of Sensormatic and is protected by both the United States and International copyright laws. LIMITED WARRANTY Sensormatic warrants that the recording medium on which the Software is recorded, and the documentation provided with it, will be free of defects in materials and workmanship under normal use for a period of ninety (90) days from the date of delivery to the first user. -
Page 7: Table Of Contents
Quick Setup Guide ... 1 Box Contents ...1 Your DigiMux Unit ...2 Front Panel ...2 Connecting Your DigiMux ...3 Power Up and Shut Down Sequences ...4 To Shut Down the Unit ...4 Dome Connections ...5 LAN Setup for the DigiMux ...6 Dial-In/Out Modem Setup ...7 DigiMux Setup ...7 PC Setup ...8... - Page 8 Quick Setup Guide NOTES viii...
-
Page 9: Quick Setup Guide
BOX CONTENTS • Inspect the box and its contents. Make sure your DigiMux has been delivered in good condition. • Remove all items from the box and make sure the box contains the items listed here: DigiMux Rack Mount Accessories Quick Setup Guide QUICK SETUP GUIDE DigiRemote... -
Page 10: Your Digimux Unit
Quick Setup Guide YOUR DIGIMUX UNIT Front Panel 1. Power LED 2. Network LED 3. Alarm LED 4. REC LED 5. IR Sensor 6. Direction 7. Search Figure 2 — DigiMux Front Panel 8. ESC 9. Menu 10. SEQ 11. Mode 12. -
Page 11: Connecting Your Digimux
CONNECTING YOUR DIGIMUX WARNING: POWER SHOULD BE OFF BEFORE MAKING ANY CONNECTIONS TO THE UNIT. NOTE: For further details regarding installation and connections, see the DigiMux User’s Video Inputs: Connect the video signal from each camera to one of the video input BNC connectors marked Video In. -
Page 12: Power Up And Shut Down Sequences
Quick Setup Guide 19 V DC Power Input: Connect the power cord to the adapter. Then connect the adapter to the DC jack at the lower right end of the rear panel. NOTE: Connect short term storage devices, such as USB ThumbDrives, USB Hard Disk Drives, USB CD-RWs, etc., only after the DigiMux is successfully powered up. -
Page 13: Dome Connections
DOME CONNECTIONS Connect the R+, R- terminals on the dome to the D+, D - terminals on the DigiMux I/O board, respectively. Only two wires are required for domeconnection. Follow the next step after you power up the unit. Set the RS-485 parameters in DigiMux to the same parameters as the protocol for RS-422 setup of the dome. -
Page 14: Lan Setup For The Digimux
Quick Setup Guide Enter the Dome ID for your dome camera(s). A dome ID is a number between 1 and 255 that uniquely identifies a dome camera. Press ESC until the Exit menu is displayed. Select Save and Exit. LAN SETUP FOR THE DIGIMUX Use this LAN setup when you are using a LAN, WAN, or Internet connection without a dialup modem for alarm notification. -
Page 15: Dial-In/Out Modem Setup
DIAL-IN/OUT MODEM SETUP Use this setup for dialup modem connections only, with no LAN setup. After completing this setup, go to Modem Setup requires the Administrator passcde, 1234. A recommended modem must be connected to the unit via the USB port, and the unit must be powered up to proceed. -
Page 16: Pc Setup
Quick Setup Guide 10. Enter the remaining items on the Modem menu as needed to configure DigiMux to communicate with your modem. For more information, see your modem’s documentation. 11. Press ESC until the Exit menu is displayed, then select Save and Exit. PC Setup 1. -
Page 17: Digimux Setup
DIGIMUX SETUP To quickly set up the DigiMux for recording and viewing video, follow these steps: NOTE: All of these DigiMux setups can be performed quickly and easily through DigiClient using your PC. See page 13 for information on DigiClient setup. Perform all necessary connections to the unit (see DigiMux on page 3). - Page 18 Quick Setup Guide • To change the cameras in a PIP view: -- Press SET, -- Press the Camera for the full view display, -- Press the Camera for the small display, -- Press SET to end the assignment. • Assign a camera to a specific window. -- Press SET, -- Move the cursor to the selected window with Direction keys, -- Press Camera to assign the camera to the window,...
-
Page 19: Digiremote
DIGIREMOTE The DigiRemote is an IR remote control device used to operate the DigiMux. This diagram describes the function keys Camera or Channel Keys (1 - 16) Playback / Zoom Out Pause / Focus Far Direction / Pan/Tilt Enter/Auto Focus Lock / Iris Close Figure 5 —... -
Page 20: Digimux Basic Playback Operations
Quick Setup Guide DIGIMUX BASIC PLAYBACK OPERATIONS Basic Playback Controls • Playback enters Playback Mode • Go To (Up arrow) • Event List (Down arrow) • Reverse Playback (Left arrow) • Forward Playback (Right arrow) • Playback returns to Live Video To increase the speed of Forward or Reverse, press Right/Left arrow multiple times. -
Page 21: Digiclient Remote Software
DIGICLIENT REMOTE SOFTWARE NOTE: You must have a network connection and the IP Address of your DigiMux unit to install and operate DigiClient. See DigiMux on page 6 or setup or modem setup, respectively. Installing DigiClient On your PC, start your web browser and enter the DigiMux unit’s IP Address in the Address field. -
Page 22: Digiclient Basic Playback Operations
Quick Setup Guide For more information about DigiClient, see the Connection Live Video Setup Alarm Exit Status Toolbar Camera Selection Window Display Mode Icons DIGICLIENT BASIC PLAYBACK OPERATIONS Basic Playback Controls Figure 7 — Basic DigiClient Playback Controls Figure 6 — DigiClient Main Window DigiClient User’s Manual. -
Page 23: Playback By Date And Time
Playback by Date and Time 1. Click Video. 2. Click desired camera boxes. 3. Enter Start Date, or click side arrow for Calendar. 4. Enter Start Time. 5. Click OK to play back video. Playback Alarm Events 1. Click Alarm. 2. -
Page 24: Digialert Event Management
Quick Setup Guide DIGIALERT EVENT MANAGEMENT NOTE: You must have a modem connection and the IP address of your PC to install and operate DigiAlert. See page 6 or User’s Manual for more information. Installing DigiAlert on your PC 1. On your PC, start your web browser and enter the DigiMux unit’s IP Address in the Address field.
