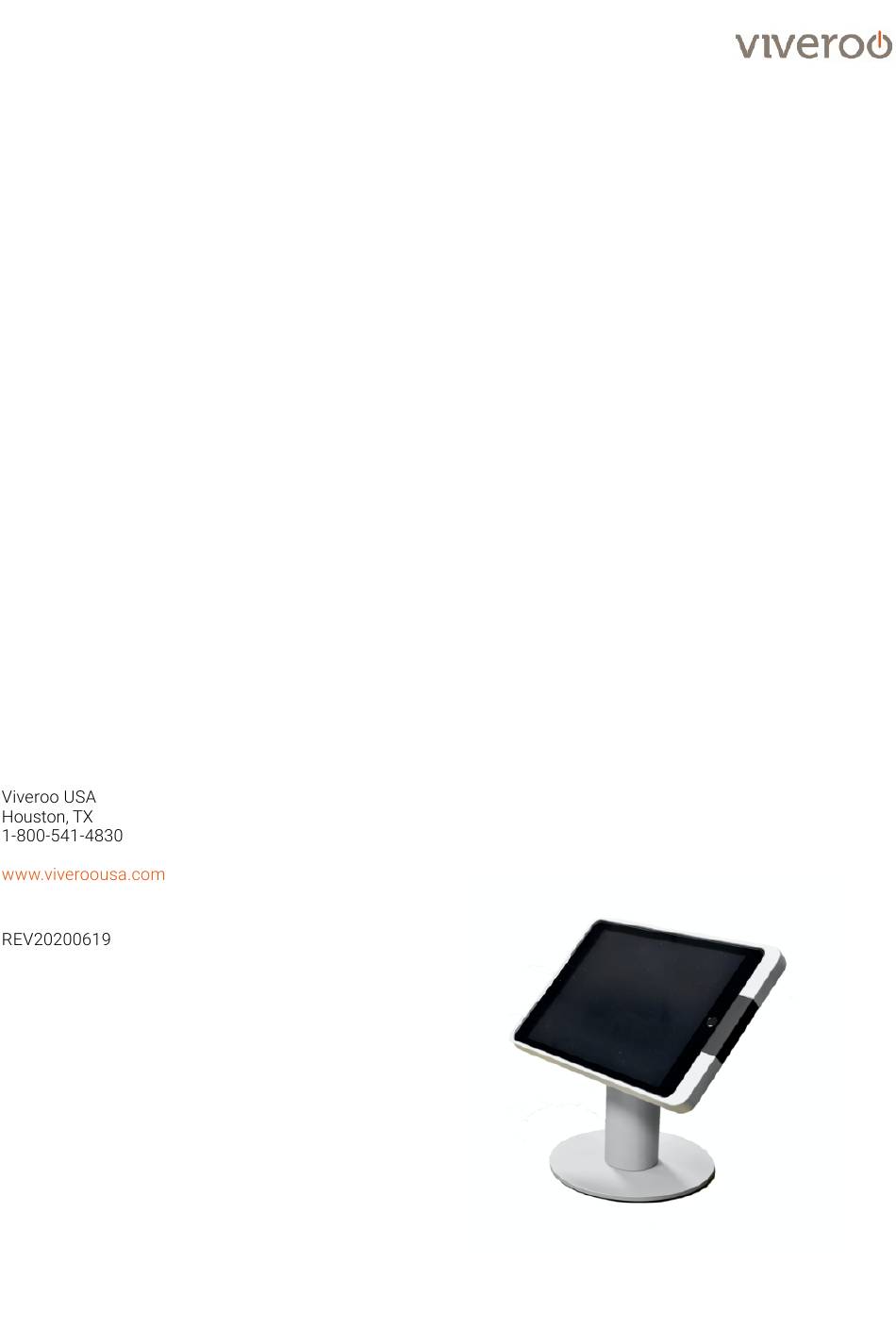

- Page 1 User manual & Installation guide one kiosk...
-
Page 2: Safety Information
Please follow these instructions and recommendations to ensure proper use and effectiveness. Safety The One Kiosk is intended for use in enclosed and dry living spaces. Information The following conditions must be provided: - Operating temperature between 0° C (32° F) and 35° C (95° F). -
Page 3: Technical Data
- Installation Material: Screws and Felt Points - Cable: Lightning/USB-C (Depending on the iPad Generation) Electrical operation of the One Kiosk is permitted only in connection with Viveroo or Apple power supply units. Compatability Operation of the Kiosk otherwise will lead to immediate loss of guarantee and warranty. -
Page 4: Delivery Contents
Installation Mounting the One Kiosk with power cable (Lightning and USB-C) pp 5-7 Mounting the One Kiosk with a PoE Adapter pp 8-9 If you use an iPad Pro with USB-C Adapter in combination with PoE, please directly skip to step 2.6... -
Page 5: Installation
If you use an iPad Pro with USB-C cable, the installation works similarly. You only have a USB-C instead of the Lightning cable. If you use the One Kiosk with a PoE Adapter, please see step 2 (pp 8-9). Step 1.1 Make sure that all of the felt points are stuck to the appropriate place on the cover. - Page 6 Place the iPad in the holder and insert the Lightning connector. ! Note: Make sure that the cable is in the intended cable duct so that the iPad sits straight in the holder. One Kiosk, User Manual & Installation Guide Page of...
- Page 7 Cover the Lightning adapter with the closure cap. Step 1.7 Fix the closure cap with the enclosed screws. The iPad can no longer be removed from the holder without loosening the cap. One Kiosk, User Manual & Installation Guide Page of...
- Page 8 Installation 2. Mounting the One Kiosk with a PoE Adapter. These steps describe the installation of the One Kiosk for iPads with the Lightning connector in combination with PoE. ! If you use an iPad Pro with USB-C Adapter, please directly skip to step 2.6 Step 2.1...
- Page 9 PoE, carry out the installation according to step 1. USB-C (Pages 5 - 7). Then connect the PoE adapter for USB-C to the cable and connect it to your LAN cable. One Kiosk, User Manual & Installation Guide Page of...
- Page 10 ! Note on 1.4: An optimal use of the scan function is only possible when mounting in landscape format. This is the only way to create the scan area below the holder. One Kiosk, User Manual & Installation Guide Page...
-
Page 11: Warranty
Warranty The One Kiosk comes with a 1 year warranty from purchase date by Warranty the original end customer, unless the device was repaired or replaced during the warranty period. In this case, the warranty is valid until the end of the regular two year warranty or six months following the repair/replacement, whichever comes first.
