Clarke Air CAT39 Manual

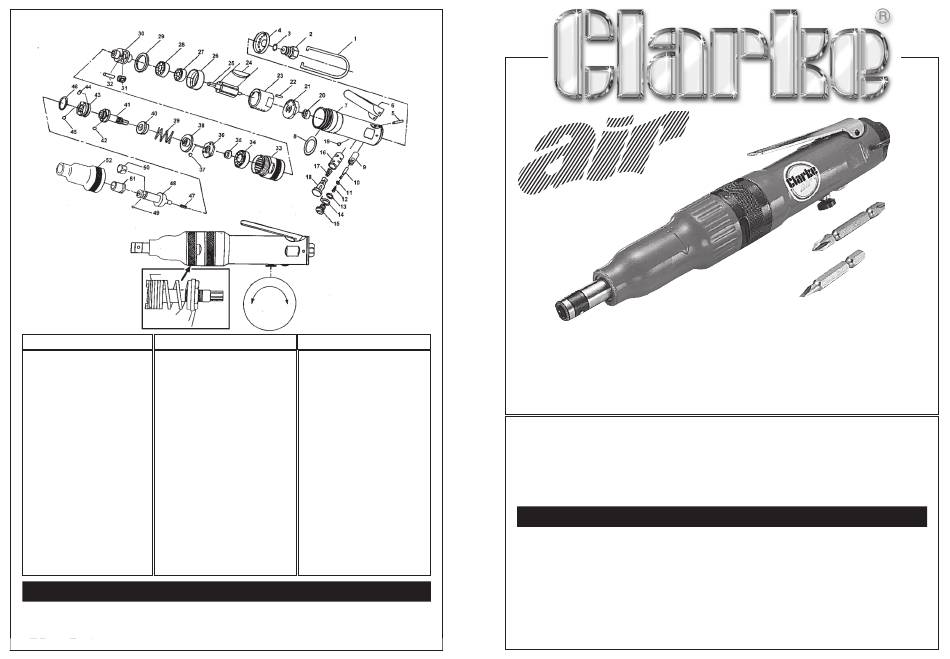

PARTS LIST

No Description Part No. No. Description
1 Hanger 2001 20 Ball Bearing
2 Air Inlet 2002 21 End Plate
3 O-Ring 2003 22 Pin
4 Exhaust Cover 2004 23 Cylinder
5 Lever Pin 2005 24 Rotor Blade
6 Switch Lever 2006 25 Rotor
7 Rotor Case 2007 26 Front Plate
8 O-Ring 2008 27 Ball Bearing
9 Bush 2009 28 Ball Bearing
10 Valve Stem 2010 29 Washer
11 O-Ring 2011 30 Planet Cage
12 Val;ve Spring 2012 31 Planet Wheel
13 O-Ring 2013 32 Planet Pin
14 Rev. Retainer 2014 33 Internal Gear
15 Valve Screw 2015 34 Ball bearing
16 Bush 2016 35 Collar
17 Reverse Spring 2017 36 Adjuster Nut
18 Reverse Valve 2018 37 Steel Ball
19 Steel Ball 1/8" 2019 38 Adj. Nut Seat

ACCESSORIES

A wide range of Airline accessories is available, including Filter/Regulators, Lubricators,
High Pressure Hoses from 5 to 100 Metres, etc. Contact your CLARKE dealer for further
information, or CLARKE International Spare Parts Department on 0181 558 6696.
Part No. No. Description Part No
2020 39 Spring 2039
2021 40 Spring Seat 2040
2022 41 Clutch Spindle 2041
2023 42 Steel Ball 2042
2024 43 Dog 2043
2025 44 Plug 2044
2026 45 Steel Ball 2045
2027 46 Dog Retainer 2046
2028 47 Centre Spring 2047
2029 48 Anvil 2048
2030 49 Steel Ball 2049
2031 50 Steel Ball Collar 2050
2032 51 Bush 2051
2033 52 Clutch Case Nut 2052
2034 53 Retainer Washer 2053
2035 54 Washer 2054
2036 55 Spring 2055
2037 56 Retainer 2056
2038 57 Ball Retainer 2057
REVERSIBLE SCREWDRIVER
CAT39
Part No. 3110439
Thank you for purchasing this CLARKE Air Screwdriver, designed for general workshop
and industrial use.
Before using the tool, please read this leaflet thoroughly and follow the instructions
carefully, in doing so you will ensure the safety of yourself and that of others around
you, and you can look forward it giving long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
