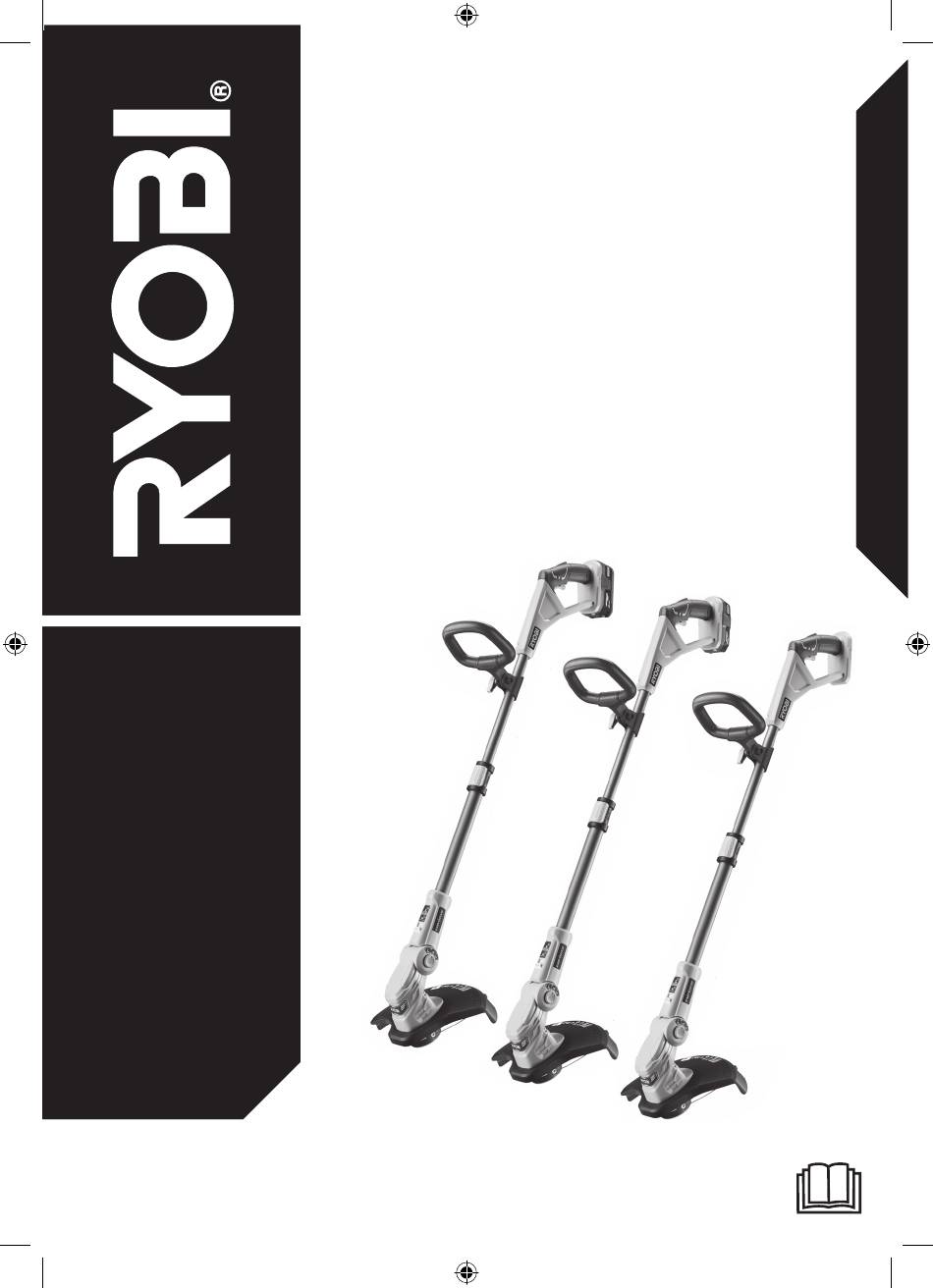

  • Page 1 ORIGINAL INSTRUCTIONS Cordless Line Trimmer / Edge Trimmer RLT1832X5 RLT1832LI25 OLT1832...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.
  • Page 3: Intended Use

    Safety, performance, and dependability have been given ■ Never use the product while tired, ill, or under the top priority in the design of your cordless line trimmer or influence of alcohol, drugs, or medication. edge trimmer. ■ Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or INTENDED USE their property.
  • Page 4: Transportation And Storage

    ■ Do not walk backwards when using the product. Walk, ■ Immediately turn off the product and remove the battery never run. pack in the event of an accident or breakdown. Do not operate the product again until it has been fully checked ■...
  • Page 5: Residual Risks

    After each use, clean the product with a soft, dry cloth. ■ Battery (RLT1832X5 and RLT1832LI25 only) Any part that is damaged should be properly repaired or ■ Battery charger (RLT1832X5 and RLT1832LI25 only) replaced by an authorised service centre. ■ Philips screw ■...
  • Page 6: Symbols In This Manual

    Keep hands away from the cut-off blade. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Regulatory Compliance Mark (RCM). Product meets applicable regulatory requirements.
  • Page 7 WHAT’S IN THE BOX OLT1832 RLT1832Li25 RLT1832X5...
  • Page 8: Know Your Product

    KNOW YOUR PRODUCT 1. Rear handle 8. Spool cover 15. Lower shaft 2. Operating trigger 9. Spool 16. Upper shaft 3. Telescoping latch 10. Eyelet 17. Handle adjustment knob 4. Charger 11. Cutting line 18. Front handle 5. Battery latch button 12.
  • Page 9 GETTING STARTED GETTING STARTED GETTING STARTED Always wear safety goggles or safety glasses with side shields Attach the front part of the safety guard to the trimmer head. Attach the back part of the safety guard to the trimmer head until Screw on the safety guard to the trimmer head.
  • Page 11 OVERVIEW Operating the trimmer Operating the edger Adjusting the line length 30 cm 30 cm p.10 p.13 p.15 25 cm Replacing the spool Cleaning the product Storing the product p.16 p.17 p.18...
  • Page 12: Operation

    OPERATION OPERATING THE TRIMMER WARNING: For safety reasons, the product must be adequately controlled by a two-handed operation. Hold the product with the right hand on the rear handle and the left hand on the front handle. WARNING: Do not cut in a dangerous cutting area.
  • Page 13 OPERATION 2. Push the lock-out safety trigger and squeeze the operating trigger to operate the product. NOTE: Press the lock-out safety trigger and the operating trigger to release approximately 3.5 mm of the cutting line. To extend the line further, wait until the motor stops and press both triggers again until the line reaches the full cutting capacity.
  • Page 14 OPERATION NOTE: Cut tall grass from the top down. This prevents grass from wrapping around the shaft housing and bump head, which may cause damage from overheating. NOTE: For cutting ease and safety, cut the grass from the right side to the left side.
  • Page 15: Operating The Edger

    OPERATION OPERATING THE EDGER 1. Push the pivoting button, and adjust the trimmer head. NOTE: The trimmer head can be adjusted to three different positions indicated by the notches. Adjust the trimmer head to the first notch for trimming, the second notch for edging, and the third notch for storing.
  • Page 16 OPERATION 4. Push the lock-out safety trigger and squeeze the operating trigger to operate the product. 5. Use the edger along sidewalks, driveways, flower beds, curbs, and similar areas. NOTE: Cut at a steady pace. If the blade begins to bog down, you are edging too fast. Slow your pace.
  • Page 17 OPERATION 30 cm 25 cm ADJUSTING THE LINE LENGTH 1. Press the latches on the battery pack to remove the battery pack. 2. Loosen the screw on the cut-off blade. Rotate the cut-off blade. NOTE: The cutting width of the line trimmer can be adjusted according to preference.
  • Page 18: Maintenance

    MAINTENANCE REPLACING THE SPOOL 1. Press the latches on the battery pack to remove the battery pack. 2. Press the tabs on the sides of the spool retainer. Remove the spool cover and the spool. 3. Thread the cutting line through the eyelet. Install the spool.
  • Page 19: Cleaning The Product

    MAINTENANCE CLEANING THE PRODUCT 1. Press the latches on the battery pack to remove the battery pack. 2. Remove all foreign materials from the product. WARNING: Do not use water to clean the product. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.
  • Page 20: Storing The Product

    STORAGE STORING THE PRODUCT NOTE: Clean the product before storing. 1. Press the latches on the battery pack to remove the battery pack. 2. Unclasp the telescoping latch. Push the upper shaft into the lower shaft. 3. Snap the telescoping latch into place.
  • Page 21 STORAGE 4. Loosen the handle adjustment knob. Tilt the front handle towards the upper shaft. Tighten the handle adjustment knob to secure. 5. Push the pivoting button. Adjust the trimmer head to the storing position. NOTE: Adjust the trimmer head to the third notch for storing.
  • Page 22: Product Specifications

    PRODUCT SPECIFICATIONS BATTERY AND CHARGER Model RLT1832X5 RLT1832LI25 OLT1832 Cordless Line Trimmer / Edge Trimmer Battery pack RB18L50A RB18L25A — RLT1832X5 / RLT1832LI25 / Model OLT1832 Weight 0.75 kg 0.45 kg — Voltage 18 V Charger RC18120 RC18115 — No-load speed...
