- Page 1 PLANTRONICS + POLYCOM. NOW TOGETHER AS Poly Sync 60 Series Bluetooth and USB Conference Room Speakerphone User Guide...
-
Page 2: Table Of Contents
Contents Controls LEDs Be safe Set up, power and pair Power Corded setup Mobile setup Video camera setup Load software Update firmware Daily Use Answer or end a call Mute/Unmute Volume Voice assistant (smartphone feature) Launch Microsoft Teams (Teams model only) Customize your speakerphone Charge your mobile phone Link speakerphones (daisy chain audio) -
Page 3: Controls

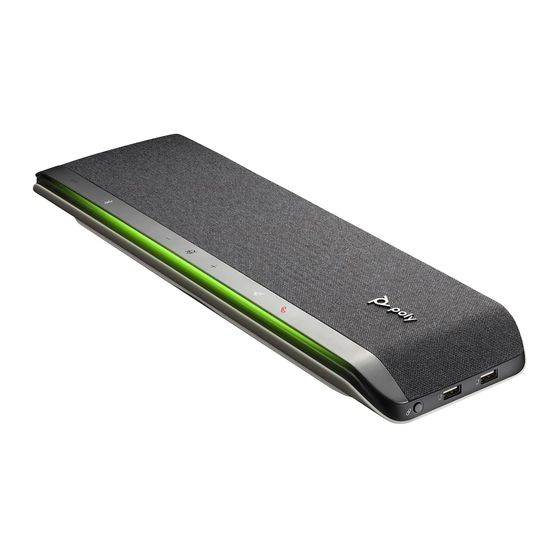

Controls A conference room speakerphone with mobile and corded connectivity. Scaled to 45% of full size Devices Volume Music Phone Plus / Minus Lock Daisy Chain / Link Computer General Indicator Light Siri Settings Charging/Battery Music Indicator Light Phone Mobile Mic / Mic Mute Blutooth Daisy Chain / Link... -
Page 4: Leds
LEDs LED bar What lights mean Crossing blue Pairing mode pattern Solid blue Pairing successful (connected) Flashing Incoming call green Solid green In a call Solid red Mute active Crossing Linking mode (daisy chain audio) white pattern 2 white blinks Linking successful NOTE LEDs do not illuminate in standby mode. -
Page 5: Set Up, Power And Pair
Set up, power and pair Device Controls Reverse view Lock Power Computer Camera Timer Headphones Play / Pause Camera Custom Button Timer Device Controls Volume Headphones Headset Custom Button Device Controls Mic / Mic Mute Headset Ports on speakerphone's reverse side Computer USB-C port Video camera USB-A port Power port... -
Page 6: Mobile Setup
Mobile setup With your speakerphone powered on, press the Bluetooth button for 2 seconds. You hear "pairing" and the LED flashes a crossing blue pattern. Blutooth Camera USB-C USB-A / USB-C “Pairing” Poly Sync 60 Headphones Headset Activate Bluetooth on your mobile device and set it to search new devices. Select “Poly Sync 60.” Pairing is successful when you hear "pairing successful"... -
Page 7: Video Camera Setup
Video camera setup Your speakerphone ships with the video camera port covered. It is on the reverse side of the speakerphone. Access the port by removing the cover with the provided torx tool. Blutooth Camera Headphones Headset Connect your compatible video camera's cable to the USB-A camera port on the speakerphone. NOTE Video camera cable not provided. -
Page 8: Load Software
App. Some softphones require the installation of Poly software to enable device call control (answer/end and mute) functionality. Download: poly.com/lens. NOTE Device settings are also available in Plantronics Hub Desktop App. Update firmware Keep your firmware up-to-date to improve performance and add new features to your Poly device. -
Page 9: Daily Use
Daily Use Answer or end a call Press the Call button to answer or end a call. Mute/Unmute During an active call, press the Mute button to mute or unmute the microphones. Manage mute settings in Poly Lens App. Volume Press the Volume up (+) or down (-) buttons to increase or decrease volume. -
Page 10: Link Speakerphones (Daisy Chain Audio)
Link speakerphones (daisy chain audio) Use two Poly Sync speakerphones with your Bluetooth-paired mobile device. IMPORTANT Linking mode is available with Bluetooth mobile device connection only. This feature is not available when your speakerphone is connected to a computer with USB cable. NOTE Linking mode can be entered when both speakerphones are inactive (not in a call or streaming media). -
Page 11: Troubleshoot
• How do I manage my speakerphone using • Your speakerphone is supported by Poly desktop Poly software? applications: Poly Lens Desktop App and Plantronics Hub Desktop App. Download: poly.com/lens. • My speakerphone isn't recognized by Poly Lens Mobile App or Plantronics Hub Mobile •... -
Page 12: What's In The Box
What's in the box Contents may vary by product. Speakerphone Combined USB-A/USB-C Power supply and plug cable adapters Torx tool (for video camera port) Quick start guide... -
Page 13: Support
2021 Plantronics, Inc. All rights reserved. Poly, the propeller design, and the Poly logo are trademarks of Plantronics, Inc. Bluetooth is a registered trademark of Bluetooth SIG, Inc. and any use by Plantronics, Inc. is under license. All other trademarks are the property of their respective owners. Manufactured by Plantronics, Inc.
