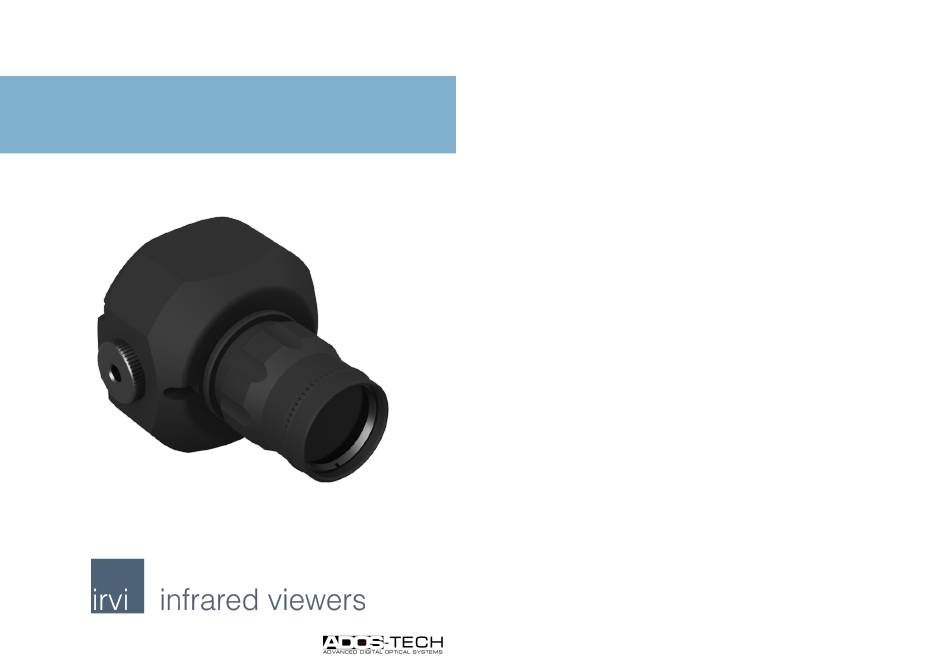

- Page 1 Manual Infrared cameras Contour IR Digital...
-
Page 2: Table Of Contents
Contents About The near infrared CONTOUR IR Digital camera is designed Contents ................for viewing, registration and record radiation in near infrared About ................zone in 400-1700 nm spectral region emitted by infrared Features ................sources such as GaAs IR LED s, diode- or solid-state lasers... -
Page 3: Operation

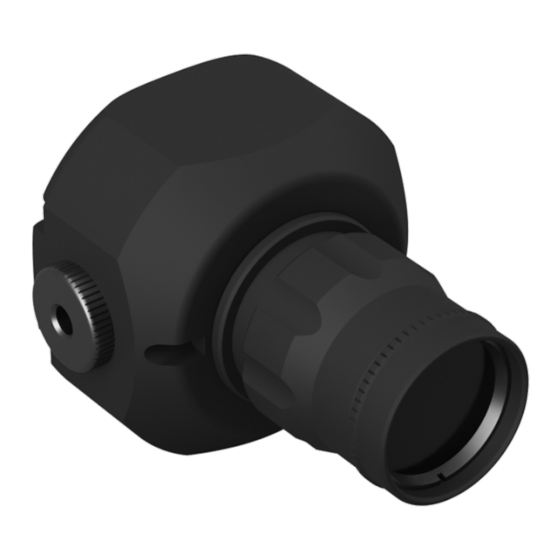

/ background and when the mode of cut-off filter the increased sensitivity of the camera automatically is 3. Tripod connection switched on. Use the cut-off or interference filters for ¼ inch observation of infrared radiation. Figure 1. Contour IR Digital camera... -
Page 4: Pc Requirements
There is no external synchronisation in the camera. • PC requirements The uncompressed video record function is available. • Processor Pentium-3 at least 1 GHz, or Pentium-4 at least • The camera features the sensor with micro lenses, the • 1.6 GHz. -
Page 5: The Maintenance Instruction
The Maintenance instruction Approx. Power density Keep the device out of direct ingress of water. The approximate minimal power density of radiation on an • object at the signal-to-noise ratio =10 (20dB) on a distance Prevent the device from mechanical damage and •... -
Page 6: Technical Information
Technical information 800x600 (6.25, 12.5, 20, 30, 40, 50 Format 3 Spectral sensitivity 400-1700nm Format 4 640x480 (8, 16, 25, 32, 50, 64 Hz) Sensor size 1/3 inches, 6.0mm x 4,96mm Range of exposure 34µs - 34ms Lens F1.4/26mm, CS-mount Temperature range +5…... -
Page 7: Safety Requirements
Safety requirements Warranty Infrared viewing device CONTOUR-IR Digital meets The customer is responsible for light source safety while • specifications of the manufacturer and declared operable. using a camera as a standalone device or integrated into system. The warranty period of the device is 24 months from the date it was sold to the consumer. - Page 8 ADOS-TECH, UAB Mokslininku st. 2A, LT-08412, Vilnius, Lithuania Tel: +370 5 270 6407 Fax: +370 5 210 0067 sales@ir-viewers.com www.ir-viewers.com www.ADOS-tech.com...
