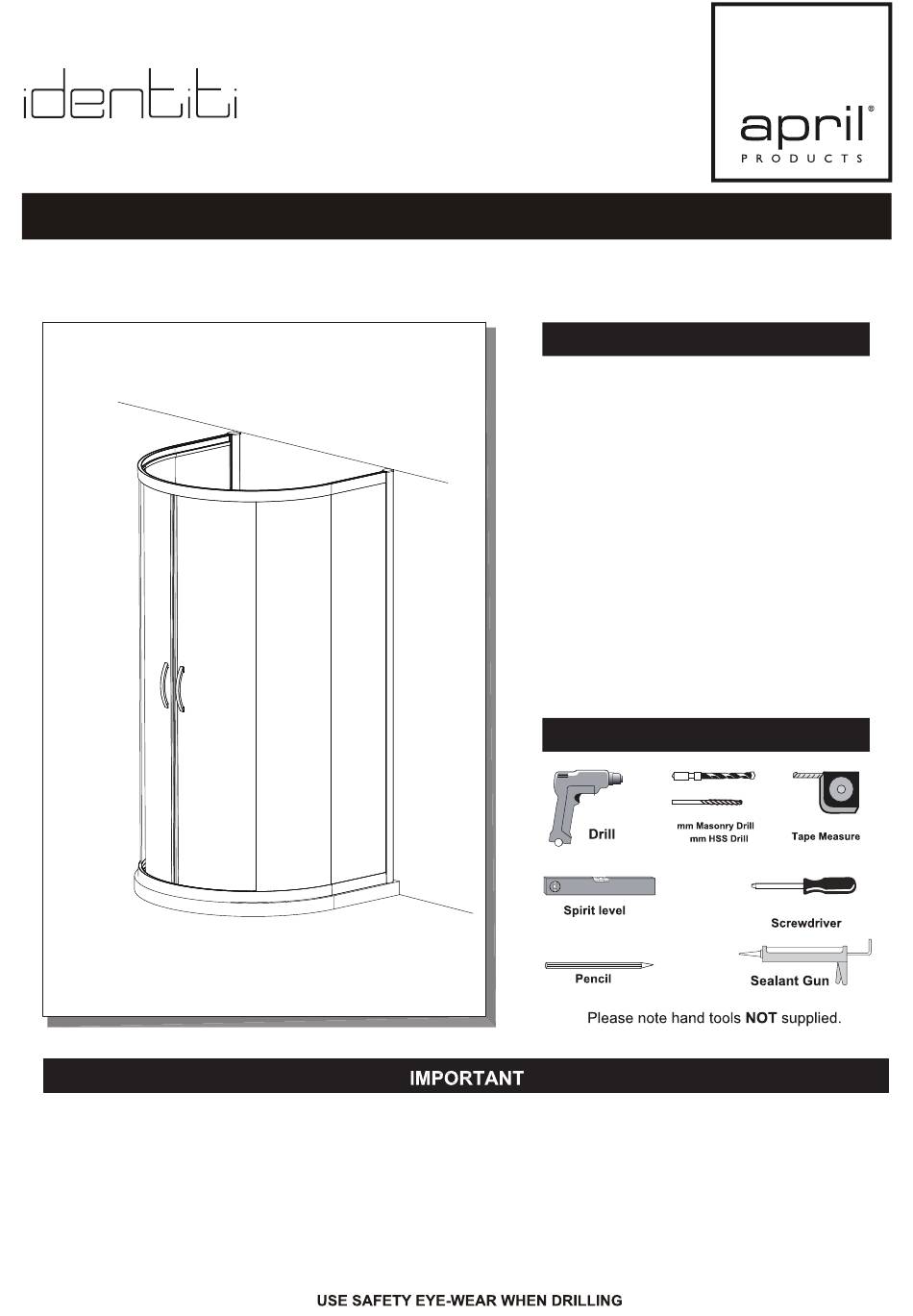

U Shape Quadrant
INSTALLATION INSTRUCTIONS
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
www.aprilproducts.co.uk
Lifetime Product Guarantee
ATTENTION!
Are you fitting this April enclosure to an April
shower tray?
The Lifetime Product Guarantee is only valid
when an April enclosure is fitted with an April
shower tray and are used and maintained in
accordance with the manufacturer's instructions
(guarantee excludes seals and magnets).
When April enclosures are used with any other
shower tray the guarantee period is limited to
10 years.
Please see our website for full Terms &
Conditions.
To activate your Product Guarantee please visit
www.aprilproducts.co.uk and complete the
online form.
Tools Required
6
3.2
PH2 TYPE

Advertisement

loading
Need help?

Need help?

Do you have a question about the identiti U Shape Quadrant and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for April identiti U Shape Quadrant

Summary of Contents for April identiti U Shape Quadrant

  • Page 1 INSTALLATION INSTRUCTIONS www.aprilproducts.co.uk Lifetime Product Guarantee ATTENTION! Are you fitting this April enclosure to an April shower tray? The Lifetime Product Guarantee is only valid when an April enclosure is fitted with an April shower tray and are used and maintained in accordance with the manufacturer’s instructions...

  • Page 2: Box Contents

    COMPONENTS AND BOX CONTENTS Box Contents NO. Code Descrip on NO. Code Descrip on ID2PF001 Wall Profile 16 ID2FT032 Roller Buffer - L ID2PF002 Cover Strip 17 ID2FT033 Roller Buffer - R ID2PF017 Upright Profile 18 ID2FT001 Top roller ID2PF035 Top Profile 19 ID2FT002 Bo om roller...
  • Page 3 FIXING KIT COMPONENTS, SITE CONDITIONS FIXING KIT Grip Handle A × 2 Wall Profile Horizontal Profile Upright Profile Grip Handle B × 2 Top Cover Cap End Cap A Top Cover Cap × 2 × 4 × 2 Screw Cap × 4 Screw Cap A ×...

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS Step 1 Step 1 Step 1. Drop the silicone into the groove of the raill profiles along with the pre-fitted seal,then push the top and bottom profiles (No.4,5) into the fixed glass panels (No.6,No.7), make sure the fixed glass panels (No.6,No.7) are pushed into the gaskets (No.22,23) fully as shown(A).
  • Page 5 Step 3.4 Step 3.1 Step 3.2 & 3.3 Step 3. 3.1 Push the wall profiles (No.1) onto the frame. 3.2 Place the assembled frame onto the tray. 3.3 Level the frame using a spirit level. 3.4 Once you are happy that the frame sits on the tray correctly mark the wall through the 4 pre-drilled screw holes in the wall profiles.
  • Page 6 Step 5 Step 5. Re-position the frame and fix both of the wall profiles to the wall using 8 × ST4.0 × 30 screws (No.29). Step 6 Step 6. Adjust the frame to ensure that it is central between the wall profiles and level against the shower tray at the base. Step 7.1 Step 7.
  • Page 7 Step 8.1 Step 8.1 Step 8.1 Step 8.2 Step 8. 8.1 Fix the top and bottom rollers onto the door panel then hang the door onto the frame, start by lifting the door up and guiding the top rollers (No.19) into the top horizontal profile (No.4). 8.2 Then using the quick release mechanism on the bottom rollers (No.20) guide them into the bottom horizontal profile (No.5) as shown.
  • Page 8 Step 12 Step 12. Fix the handle (No.21) to door panels (No.8). Step 13 Step 13. Once you are happy that the installation is correct, Push the cover strip onto the wall profile as shown above. Step 14 Step 14. Fit the top caps as shown.
  • Page 9 Applying Silicone Sealant 24 HRS Sealing Inside DO NOT USE THE Seal from the top of the wall profile to the bottom on the INSIDE between the wall profile and the wall. ENCLOSURE FOR IMPORTANT: Do not apply sealant on inside of the tray. 24 HOURS AFTER Sealing Outside Seal from the top of the wall profile to the bottom between the...
  • Page 10 It is important to clean your April shower enclosure after every use. Please wipe down all glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use. For reliable, watertight performance from your April enclosure your shower head should not be positioned so that the shower sprays directly onto the enclosure door.
