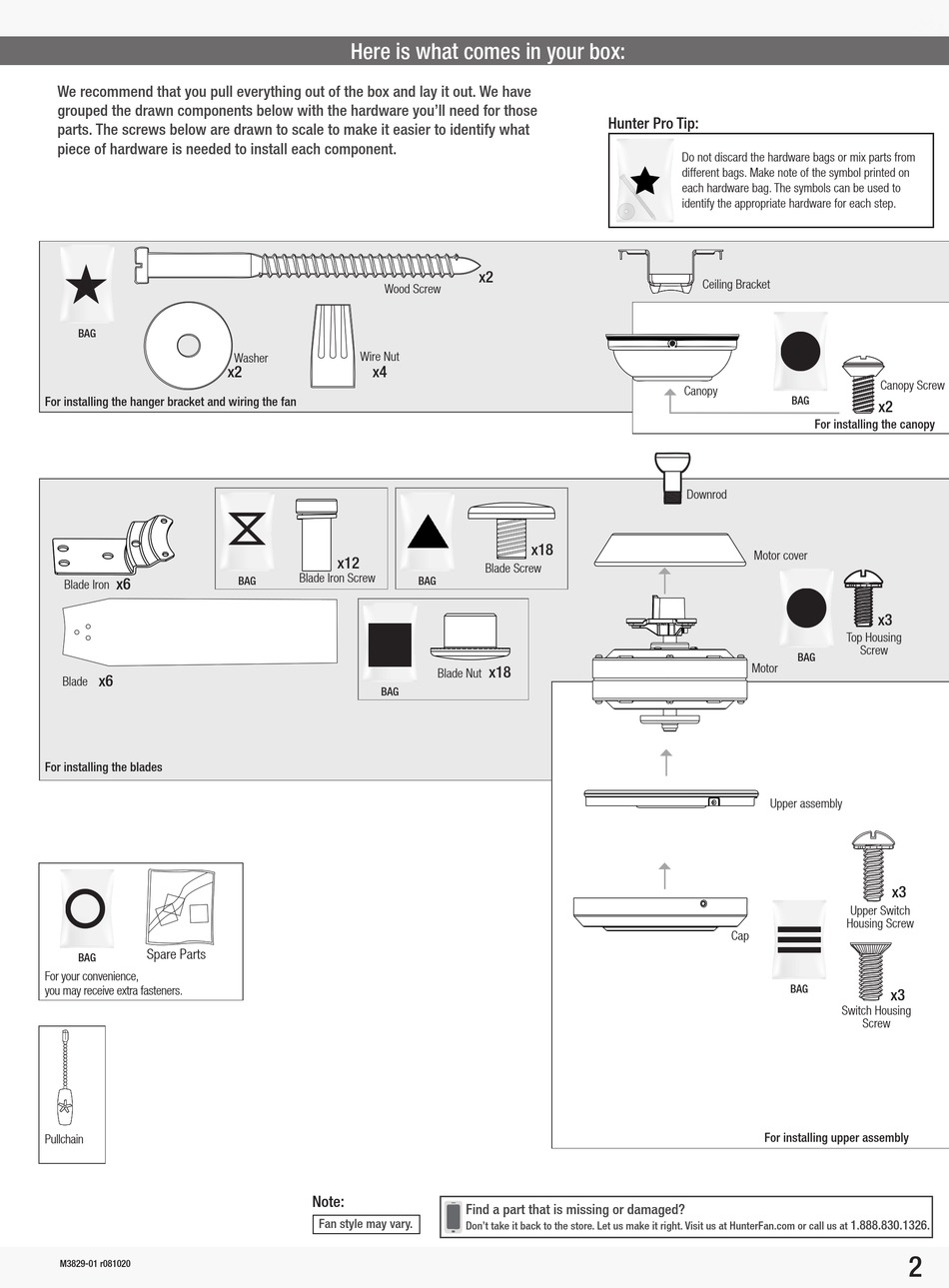

Hunter Perlman Installation Manual page 3

We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you'll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
bag
For installing the hanger bracket and wiring the fan
x6
Blade Iron
x6
Blade
For installing the blades
Spare Parts
bag
For your convenience,
you may receive extra fasteners.
Pullchain
M3829-01 r081020
Here is what comes in your box:
Wood Screw
Wire Nut
Washer
x2 x4
x12
Blade Iron Screw
bag
bag
Note:
Fan style may vary.
x2
x18
Blade Screw
bag
x18
Blade Nut
Find a part that is missing or damaged?
Don't take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at
Hunter Pro Tip:
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
Ceiling Bracket
Canopy
Downrod
Motor cover
Motor
Upper assembly
Cap
For installing upper assembly
1886
Canopy Screw
bag
x2
For installing the canopy
x3
Top Housing
Screw
bag
x3
Upper Switch
Housing Screw
bag
x3
Switch Housing
Screw
