Sven CLASSIC User Manual

CLASSIC
Power Strip Surge Protector
USER'S MANUAL
Congratulations on the purchase of TM SVEN power strip surge protector!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may
occur. The information in this Manual is given on "as is" terms. The author and the publisher
do not bear any liability to a person or an organization for loss or damage, which has
arisen from the information contained in this Manual.

PURPOSE

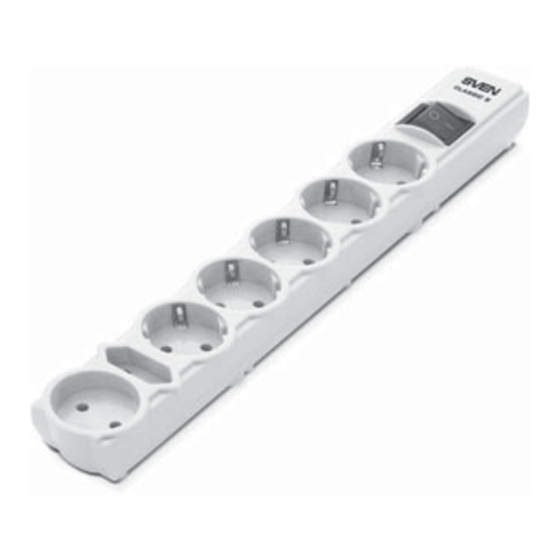

SVEN CLASSIC power strip purge protector is designed for connection of electrical
appliances to the electric mains and their protection against high-voltage pulses of surge
and permanent filtration of high-frequency noises.

FEATURES

• Double-pole switch with light indication of the turn on condition
• High-impact non-flammable and non-toxic case
• Protection against short circuit and overload
• Protection against high-frequency and pulse interferences
• Five sockets with grounding contacts and two sockets without grounding
• Wall mount possibility

SAFETY PRECAUTIONS

• Do not connect the surge protector to power mains with overrating voltage.
• Do not connect simultaneously the load to the surge protector with total power more
than 2200 W.
• Do not use in places with possible ingress of liquid, moisture, dust and high tempe-
rature exposure.
• Do not open and do not make any repairs by yourself.
• It is recommended to connect the surge protector to the grounded power mains.

TECHNICAL SPECIFICATIONS

Rated voltage, V
Operating frequency, Hz
Total connected load power, kW
Maximum absorbed power, J
Thermoelectric cut-off fuse operating current, А
Input plug
Output sockets
Cable length, m
Dimensions (W × H × D), mm
Note. Technical specifications given in this table are supplemental information
and cannot give occasion to claims. ТМ SVEN production is improved constantly,
therefore Technical Specifications are subject to change without prior notice.
ENG
220
50
≤ 2.2
3 × 125
>10
CEE 7/7
5 × CEE7/4, CEE7/16, C1-a
1.8; 3; 5
48 × 48 × 370
Warranty period: 12 months
Service life: 2 years
