Roland JUPITER-X Install Manual

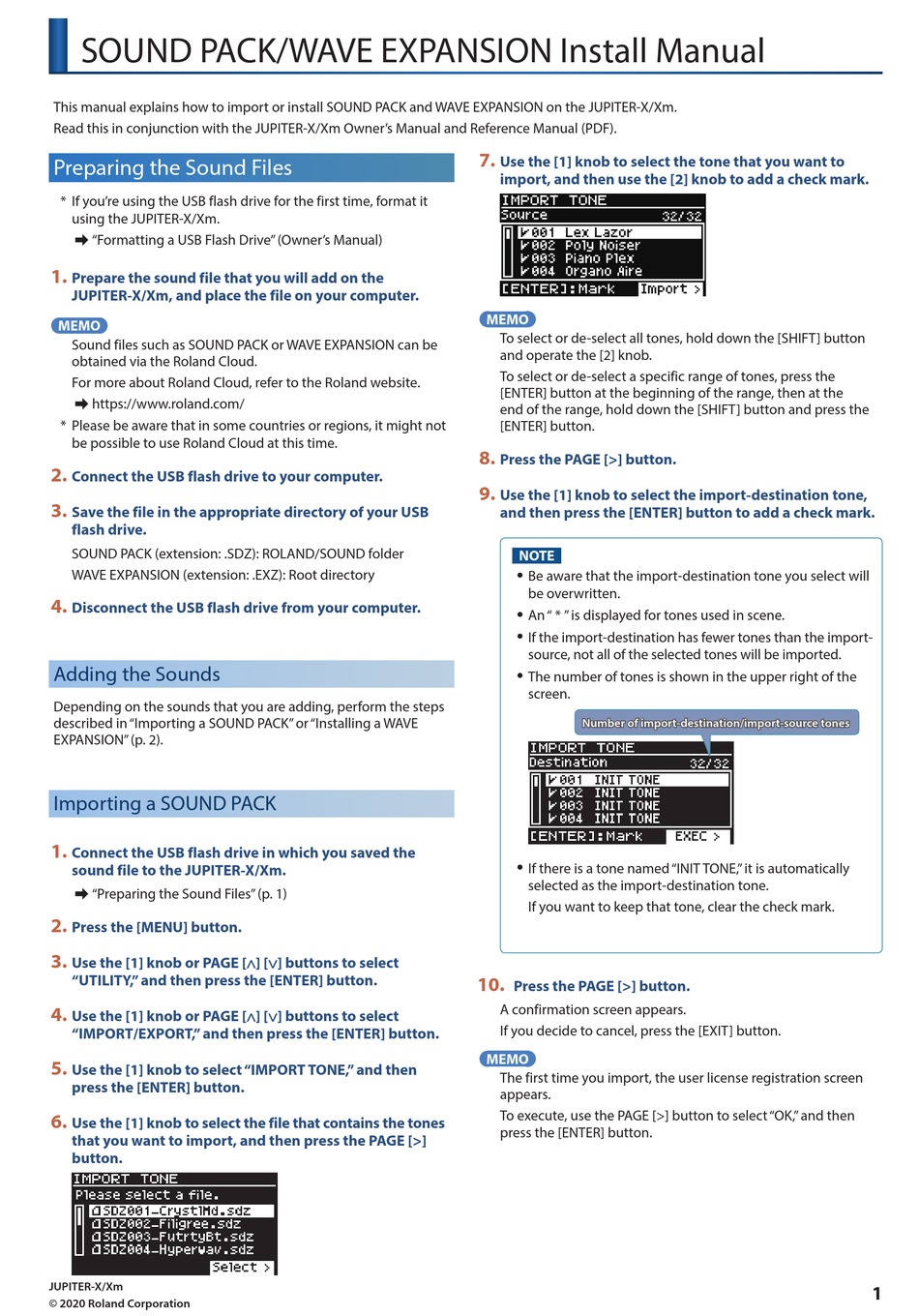

SOUND PACK/WAVE EXPANSION Install Manual
This manual explains how to import or install SOUND PACK and WAVE EXPANSION on the JUPITER-X/Xm.
Read this in conjunction with the JUPITER-X/Xm Owner's Manual and Reference Manual (PDF).
Preparing the Sound Files
* If you're using the USB flash drive for the first time, format it
using the JUPITER-X/Xm.
&"Formatting a USB Flash Drive" (Owner's Manual)
1.
Prepare the sound file that you will add on the
JUPITER-X/Xm, and place the file on your computer.
MEMO
Sound files such as SOUND PACK or WAVE EXPANSION can be
obtained via the Roland Cloud.
For more about Roland Cloud, refer to the Roland website.
&https://www.roland.com/
* Please be aware that in some countries or regions, it might not
be possible to use Roland Cloud at this time.
2.
Connect the USB flash drive to your computer.
3.
Save the file in the appropriate directory of your USB
flash drive.
SOUND PACK (extension: .SDZ): ROLAND/SOUND folder
WAVE EXPANSION (extension: .EXZ): Root directory
4.
Disconnect the USB flash drive from your computer.
Adding the Sounds
Depending on the sounds that you are adding, perform the steps
described in "Importing a SOUND PACK" or "Installing a WAVE
EXPANSION" (p. 2).
Importing a SOUND PACK
1.
Connect the USB flash drive in which you saved the
sound file to the JUPITER-X/Xm.
&"Preparing the Sound Files" (p. 1)
2.
Press the [MENU] button.
3.
Use the [1] knob or PAGE [ ] [ ] buttons to select
"UTILITY," and then press the [ENTER] button.
4.
Use the [1] knob or PAGE [ ] [ ] buttons to select
"IMPORT/EXPORT," and then press the [ENTER] button.
5.
Use the [1] knob to select "IMPORT TONE," and then
press the [ENTER] button.
6.
Use the [1] knob to select the file that contains the tones
that you want to import, and then press the PAGE [>]
button.
JUPITER-X/Xm
© 2020 Roland Corporation
7.
Use the [1] knob to select the tone that you want to
import, and then use the [2] knob to add a check mark.
MEMO
To select or de-select all tones, hold down the [SHIFT] button
and operate the [2] knob.
To select or de-select a specific range of tones, press the
[ENTER] button at the beginning of the range, then at the
end of the range, hold down the [SHIFT] button and press the
[ENTER] button.
8.
Press the PAGE [>] button.
9.
Use the [1] knob to select the import-destination tone,
and then press the [ENTER] button to add a check mark.
NOTE
5 Be aware that the import-destination tone you select will
be overwritten.
5 An " * " is displayed for tones used in scene.
5 If the import-destination has fewer tones than the import-
source, not all of the selected tones will be imported.
5 The number of tones is shown in the upper right of the
screen.
Number of import-destination/import-source tones
5 If there is a tone named "INIT TONE, " it is automatically
selected as the import-destination tone.
If you want to keep that tone, clear the check mark.
10.
Press the PAGE [>] button.
A confirmation screen appears.
If you decide to cancel, press the [EXIT] button.
MEMO
The first time you import, the user license registration screen
appears.
To execute, use the PAGE [>] button to select "OK, " and then
press the [ENTER] button.
1
