1. Insert one end of the power cord into the input power connector at the rear of the degasser
and the other end into the appropriate power source.
When the VacPrep leaves the factory, stabilizing tubes are placed in heating stations 1
and 6 to prevent the heater block from shifting during shipment. Be sure to remove
these tubes before turning on the VacPrep.
2. Attach an appropriate regulator to the gas bottle. Leave the gas bottle shut-off valve closed
until instructed otherwise.
3. If the regulator has a -in. outlet, proceed to Step 4. If the regulator has a -in. outlet, attach
the reducer fitting to the outlet of the regulator shut-off valve.

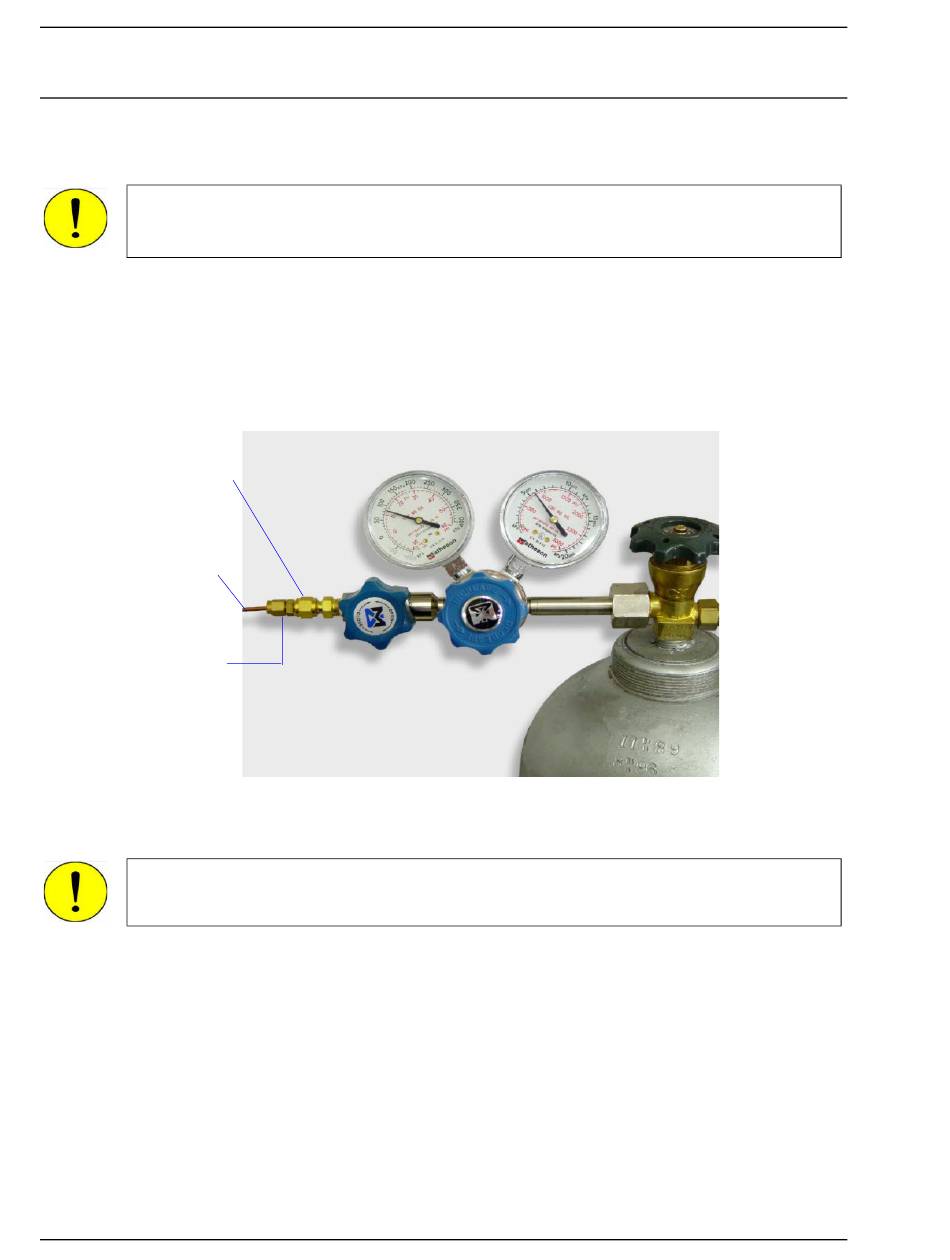

Reducer Fitting
Copper Tubing
Brass Reducer
Fitting
4. Tighten the regulator shut-off valve nut.
Do not overtighten the fittings. Doing so can collapse the brass ferrule and cause a
leak.
5. Attach the copper tubing to the brass reducer fitting.
1-8
Two-Stage Pressure
Reducing Regulator
Regulator Pressure
Shut-Off Valve Control Knob
VacPrep 061
Bottle Shut-Off Valve
Gas Bottle
