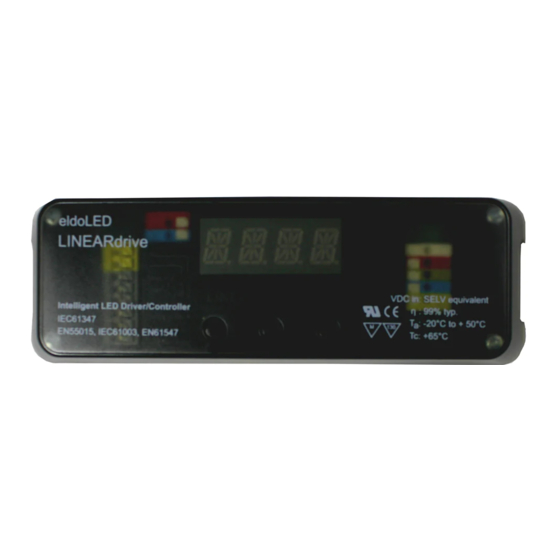

VarioControl LINEARdrive 180D
4/6/24 A Full-Colour Dimmable LED Driver
LINEARdrive DC is a constant voltage LED driver with multiple LED outputs that are controlled over four channels. It is targeted at larger networked
and smaller standalone installations that require dimmable, low-power full-colour static or dynamic LED lighting. LINEARdrive DC is DMX/RDM
and LedSync compatible.
Applications
• Entertainment lighting
• Full-colour architectural lighting
Features & benefits
Input
• Voltage: 12 – 28 VDC
• Current, max:
6 A, irrespective of PSU voltage
Output
• Voltage: 5 V, 12 V or 24 V
• Max load per output:
RGBW @ 24 V
LINEARdrive 180D
General
• USITT DMX512A/RDM (ANSI E1.20) and LedSync compatible
• HydraDrive: 15-bit resolution
• Dimming control: smooth dimming from 100 % to 0.1 %, gamma-corrected curve
• Intuitive 3-button user interface for on-the-fly configuration
• Interface for external control device: 10 k Ω potentiometer, 0 – 10 V source or momentary switch
• Signage/advertising lighting
• Cove lighting
RGB @ 24 V
1.5 A
2 A
• Decorative lighting
• Dynamic colour panel lighting
LINEARdrive 180D
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LED Linear VarioControl LINEARdrive 180D
Summary of Contents for LED Linear VarioControl LINEARdrive 180D

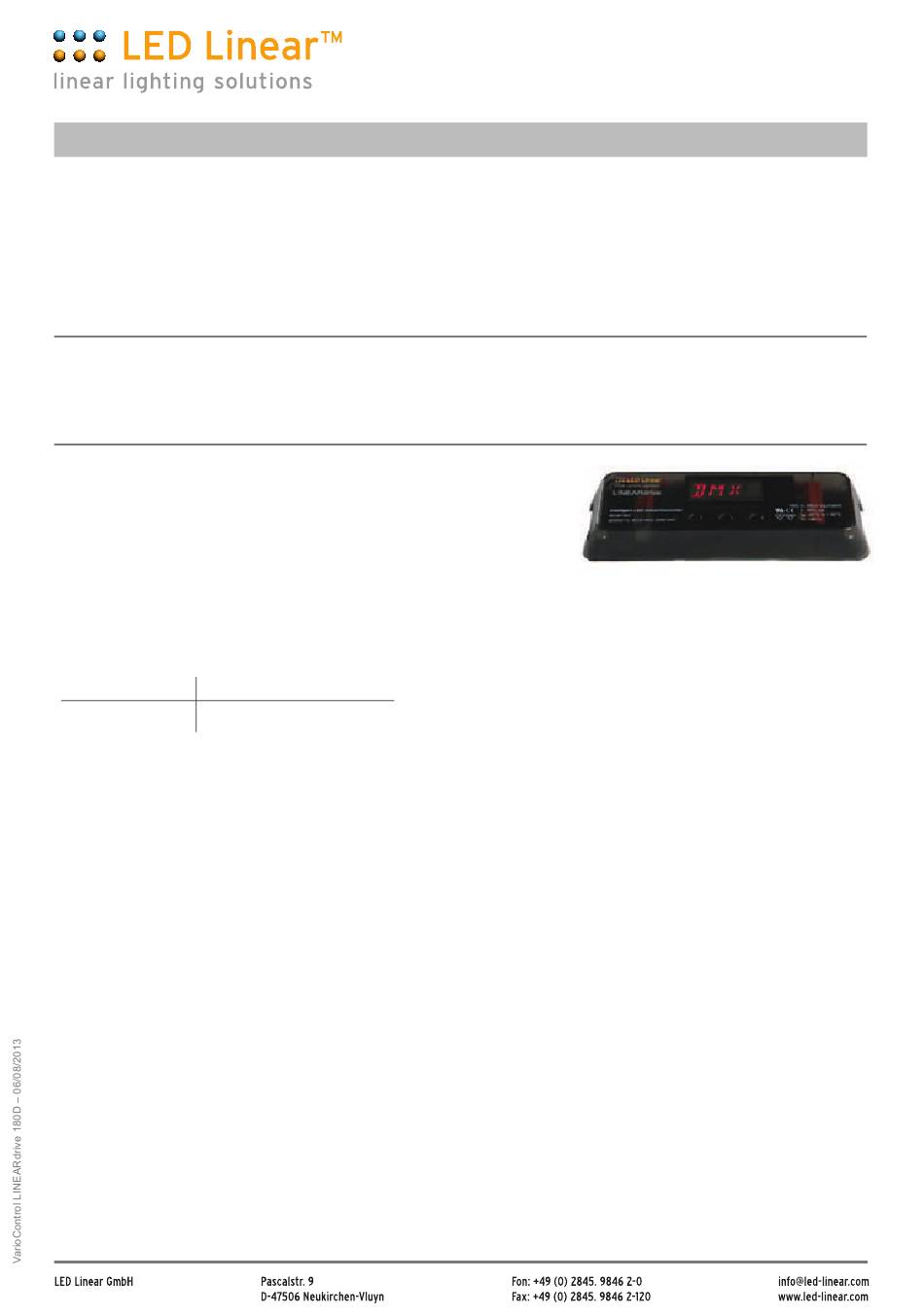

- Page 1 VarioControl LINEARdrive 180D 4/6/24 A Full-Colour Dimmable LED Driver LINEARdrive DC is a constant voltage LED driver with multiple LED outputs that are controlled over four channels. It is targeted at larger networked and smaller standalone installations that require dimmable, low-power full-colour static or dynamic LED lighting. LINEARdrive DC is DMX/RDM and LedSync compatible.
-
Page 2: Other Information
Datasheet LINEARdrive 180D Dimensions, weight, packaging LINEARdrive 180D • Weight: 120 g, 4.2 oz 110 mm/4.33” 21.5 mm/0.85” 23 mm/0.91” ø 4.2 mm/0.17” 10 mm/0.39” LED supply + 30 mm/1.18” Group 50 mm/1.97” DMX in + Group DMX in - LINEARdrive 180D Group DMX in shield... -
Page 3: Led Groups
VarioControl LinearDrive 180D – Wiring diagram VDC and LED connectors: Other connectors: 12 – 28 V DC IN AWG 24 – 16 AWG 20 – 16 LED groups 0.2 – 1.5 mm 0.5 – 1.5 mm 9 mm 9 mm 0.35 inch... - Page 4 VarioControl LinearDrive 180D – Wiring diagram Connecting an RGB LED strip Maximum current per output at 12 V: 2 A Maximum current per output at 24 V: 2 A RGB LED strip LED supply + Group Configuration of the LED groups:...
-
Page 5: Manual Configuration
VarioControl LinearDrive 180D – Quick Start Guide Other features Manual configuration Locking the configuration 1. Select mode of operation (5 sec) (5 sec) Lock driver Set mode LOCK MODE COLR SOFT SHOW HARD display off DALI display off 2. Set LED groups...
