LED Linear VarioContour 1500 Aluminum Profile Installation Instructions

INSTALLATION INSTRUCTIONS
MODELS: MODELS: VarioContour 1500 Aluminum Profile
ATTENTION ATTENTION
Please read all safety and assembly instructions prior to installation and keep for future reference. Please read all safety and assembly instructions prior to installation and keep for future reference.
1. Product should be installed by a qualified electrician with regards to all applicable electrical and safety standards.
2. Ensure power is shut off at the electrical panel prior to installation in order to prevent electrical shock.
3. Use only with SELV (Safety Extra Low Voltage)/Class 2 power supplies.
4. Suitable for installation in Dry Locations.
5. Avoid looking directly into the light source during operation - glare hazard.
6. Do not store packed units over 70° F and over 50% humidity more than 12 months.
NOTE
Prior to installation, always test the LED tape with a suitable power supply in order to confirm operation and that the factory
connections are secure. LED Linear only honors warranty for supplied material and is not liable for installation errors.

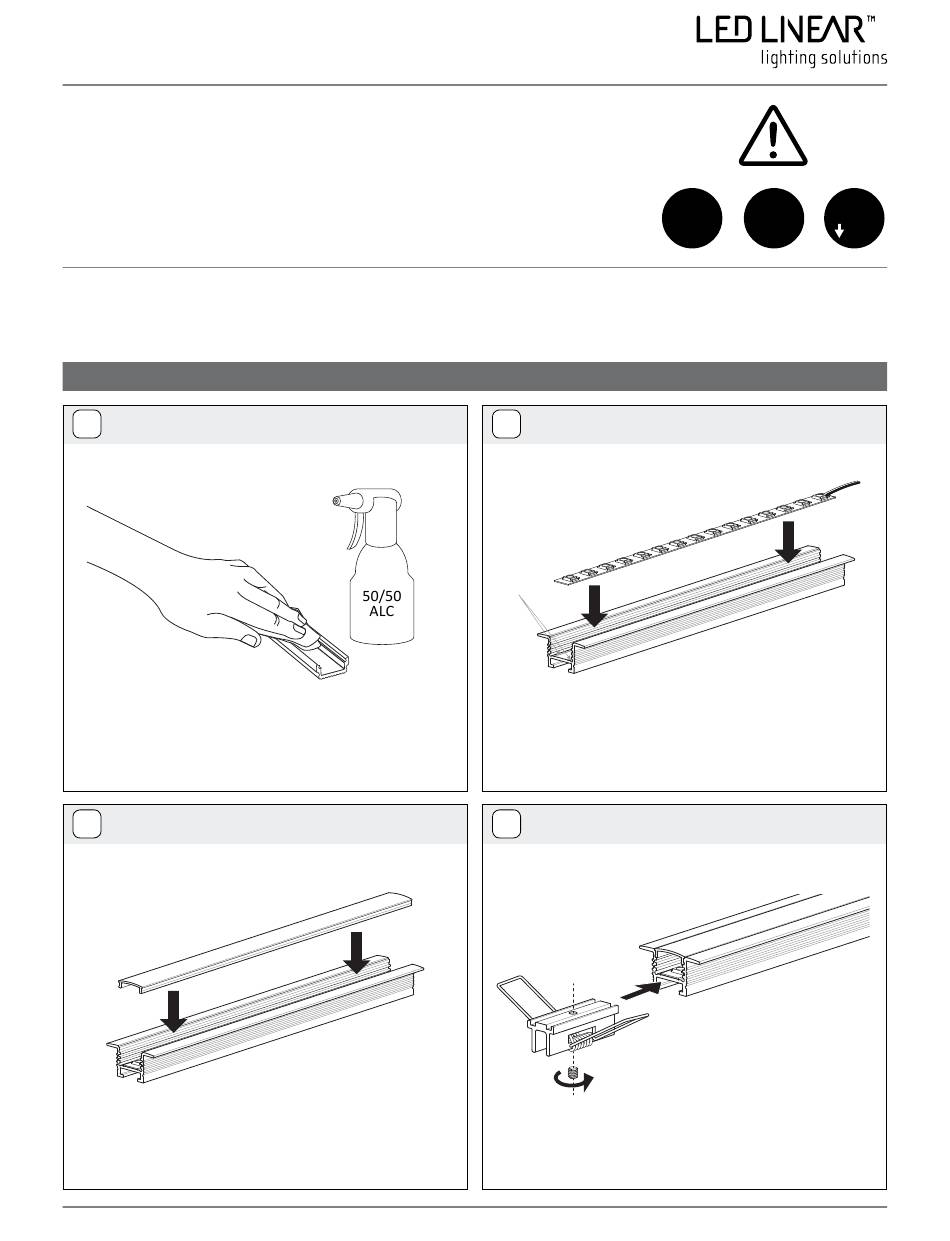

ALUMINUM PROFILE INSTALLATION

1

Preparing the Surface

Thoroughly clean the area where tape lights will be installed. Using a 50/50
alcohol mix, clean the area where LEDs will be applied and allow time for
alcohol to dry for 5 minutes.
3

Lens

Clip the lens into place.
LED Linear USA, Inc. | Edition: 05/01/2019 |
™
LED LINEAR RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS WITHOUT NOTICE
2

LED Strip

Guides
Press and glue the LED Strip Tape into the profile (follow 10 mm or
14 mm guides). Will accept 14 mm wide strip maximum.
4

Brackets

Slide in the mounting brackets, then tighten the lug screws.
CLASs 100W
4 amp max
2
max 24V
1 (2)
