LED Linear CONTOUR 0036 Installation Instructions

INSTALLATION INSTRUCTIONS

MODELS: CONTOUR 0036
ATTENTION
Please read all safety and assembly instructions prior to installation and keep for future reference.
1. Product should be installed by a qualified electrician with regards to all applicable electrical and safety standards.
2. Ensure power is shut off at the electrical panel prior to installation in order to prevent electrical shock.
3. Use only with SELV (Safety Extra Low Voltage)/Class 2 power supplies.
4. Suitable for installation in Dry Locations.
5. Do no operate the product in rolled-up condition.
6. Avoid looking directly into the light source during operation - glare hazard.
7. Do not store packed units over 70° F and over 50% humidity more than 12 months.
NOTE
Prior to installation, always test the LED tape with a suitable power supply in order to confirm operation and that the factory
connections are secure. LED Linear only honors warranty for supplied material and is not liable for installation errors.

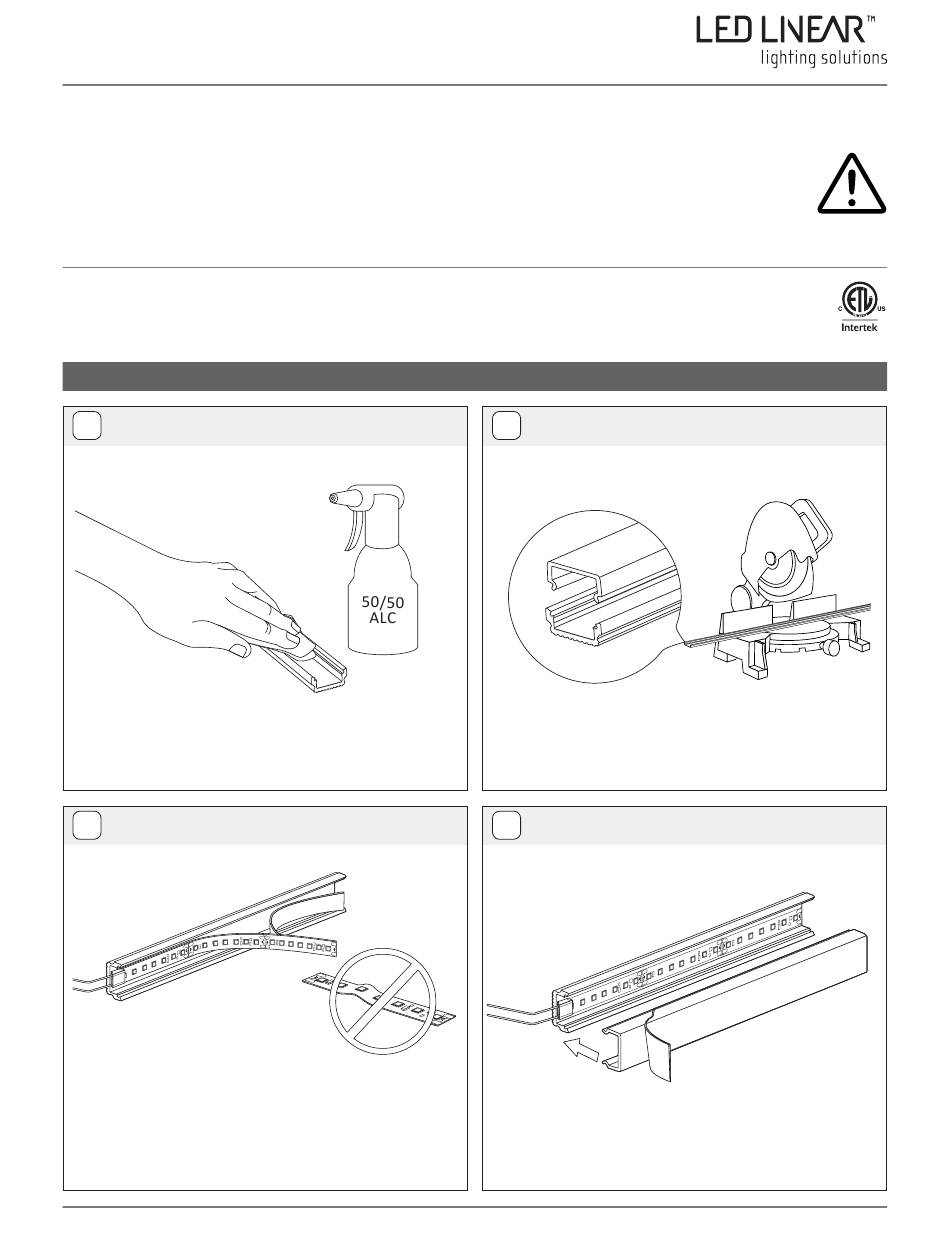

I. LED INSTALLATION IN ALUMINUM CHANNEL
1
Preparing the Surface
Thoroughly clean the area where tape lights will be installed. Using a 50/50
alcohol mix, clean the area where LEDs will be applied and allow time for
alcohol to dry for 5 minutes.
3
Assembling Fixture
Attach the quick connector or solder lead wires to one side of the tape. Shorten
the LED tape to desired length by cutting along the marked area in between
the solder pads. Remove paper backing from the adhesive tape firmly press
down onto the aluminum surface. Uncoil and peel minimal amount as you
install to avoid collection of debris. Excessive uncoiling and peeling of tape
create ripples and air bubbles on the tape that should be avoided.
LED Linear USA, Inc. | Edition: 13/09/2019 |
™
Paper Backing
LED LINEAR RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS WITHOUT NOTICE
( Contour 0005 is used to illustrate the installation )
2
Field Cutting
Lens
Extrusion
Cut extrusion and lens to the desired length in the field. For short runs
(<78"), cut all parts to the same length by using the proper blades for
aluminum/plastic cut.
4
Installing Lens
Lens
Snap the diffuser lens into the aluminum extrusion. Remove the protective
film from the diffuser lens.
Miter Saw
Extrusion
Protective Film
1 (4)
