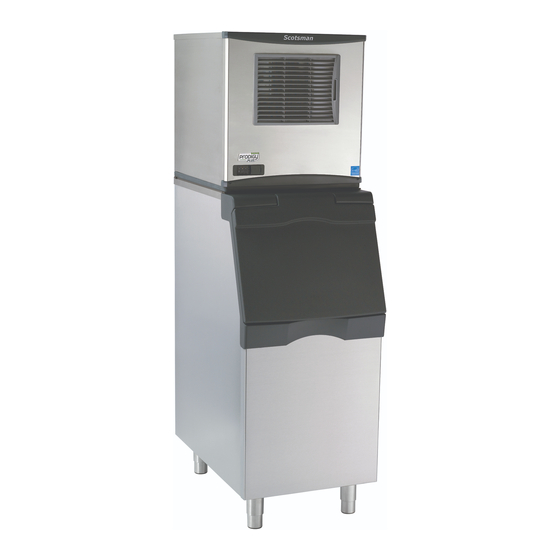

Scotsman C0322 Installation And User Manual

Modular cuber
Hide thumbs Also See for C0322:
Table of Contents

Advertisement

Quick Links

Installation and
User's Manual for
Modular Cuber
Der Link zum Scotsman Eisbereiter C330M bei Kälte-Berlin
Models C0322, C0522, C0330, C0530,
C0630, C0830 and C1030
Kälte-Berlin
Am Pfarracker 41
12209 Berlin
Fon: +49 30 74 10 40 22
Fax: +49 30 74 10 40 21
Mail: info@kaelte-berlin.de
Internet: www.kaelte-berlin.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C0322 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scotsman C0322

Summary of Contents for Scotsman C0322

  • Page 1 User's Manual for Fon: +49 30 74 10 40 22 Fax: +49 30 74 10 40 21 Mail: info@kaelte-berlin.de Internet: www.kaelte-berlin.com Modular Cuber Der Link zum Scotsman Eisbereiter C330M bei Kälte-Berlin Models C0322, C0522, C0330, C0530, C0630, C0830 and C1030...

  • Page 2: Table Of Contents

    Product Description & Electrical Requirements ......Page 4 C0322 and C0522 Cabinet Layout ....... Page 5 C0330, C0530, C0630, C0830 and C1030 Cabinet Layout .

  • Page 3: Installation: Product Specifications

    C0322 through C1030 Air and Water Cooled User Manual Installation: Product Specifications Location Limitations: Environmental Limitations The product is designed to be installed indoors, in Minimum Maximum a controlled environment. Air cooled models discharge very warm air into the room out the back.

  • Page 4: Model Number Description

    • 03= nominal ice capacity in 100s of pounds • • 22= nominal width of cabinet HD22 – use with C0322 or C0522 • • S= Cube size. S=small or half dice cube. HD30 – use with C0330 or C0530 M=medium or full dice cube •...

  • Page 5: Product Description & Electrical Requirements

    C0322 through C1030 Air and Water Cooled User Manual Product Description & Electrical Requirements Minimum Dimensions Electrical Maximum Model Condenser Circuit Fuse Size* w" x d" x h" volts/Hz/phase Ampacity C0322SA-1 115/60/1 12.7 C0322SW-1 115/60/1 Water 11.9 C0322SA-32 208-230/60/1 C0322SW-32...

  • Page 6: C0322 And C0522 Cabinet Layout

    3/4" FPT DRAIN 1.62 AIR COOLED LOUVER AND 1.43 LEFT SIDE VIEW REMOVABLE FILTER BACK VIEW AC UNITS ONLY C0322, C0522 Air Cooled Side View C0322, C0522 Air Cooled Back View 10.25 3.25 ULTRASONIC BIN LEVEL 2.00 SENSOR 2.00 (OPTIONAL) 17.8...

  • Page 7: C0330, C0530, C0630, C0830 And C1030 Cabinet Layout

    C0322 through C1030 Air and Water Cooled User Manual C0330, C0530, C0630, C0830 and C1030 Cabinet Layout 1.70 .88" DIA ELECTRICAL ACCESS 14.59 27.5 10.81 3/8" FPT WATER 3.06 INLET 24.00 1.73 3/4" FPT AIR COOLED LOUVER AND DRAIN BACK VIEW...

  • Page 8: Water

    Testing has shown that using a filter that does not remove chlorine, such as the Scotsman Aqua Patrol, will greatly improve this situation, while the ice making process itself will remove the chlorine from the ice, resulting in no taste or odor impact.

  • Page 9: Panel Removal

    C0322 through C1030 Air and Water Cooled User Manual Panel Removal Locate and loosen the two screws at the front edge of the top panel. Pull the front panel out at the top until it clears the top panel. Dataplate Location Lift the front panel up and off the machine.

  • Page 10: Plumbing Requirements

    C0322 through C1030 Air and Water Cooled User Manual Plumbing Requirements All models require connection to cold, potable Drain Tubing: water. A hand actuated valve within site of the machine is required. Air cooled models have a Use rigid drain tubes and route them separately –...

  • Page 11: Electrical

    C0322 through C1030 Air and Water Cooled User Manual Electrical The machine is not supplied with a power cord, one must either be field installed or the machine hard-wired. The dataplate on the back of the cabinet details the power requirements, including voltage, phase, minimum circuit ampacity and maximum fuse size.

  • Page 12: Final Check List

    C0322 through C1030 Air and Water Cooled User Manual Final Check List After connections, 1. Wash out the bin. If desired, the interior of the bin could be sanitized. 2. Locate the ice scoop (if supplied) and have it available for use when needed.

  • Page 13: Initial Start Up

    C0322 through C1030 Air and Water Cooled User Manual Initial Start Up 1. Remove front panel. Check machine for any seconds the purge valve closes but the inlet water packing or wires rubbing moving parts. Note valve continues to fill the reservoir. Harvest...

  • Page 14: Adjustments

    C0322 through C1030 Air and Water Cooled User Manual Adjustments Bridge Thickness - For the Service Tech Only Note: Indentations may be deeper on C0322 and C0330 1/8-3/16" 1. Push and hold Off till the machine stops. bridge 2. Remove evaporator cover.

  • Page 15: Use And Operation

    Contact an switch light on all the time, as a curtain switch light authorized Scotsman service agent and have the is ON when a curtain is either open or not present. machine cleaned, de-scaled and sanitized.

  • Page 16: Control Switches

    C0322 through C1030 Air and Water Cooled User Manual Control Switches There is front access to two switches – On and Off. Adjustable ice level control, kit # KVS Status De-Scale When this option is present there is an adjustment post and an additional indicator light to the right of the four indicator lights mentioned above.

  • Page 17: Options

    C0322 through C1030 Air and Water Cooled User Manual Options Advanced Feature Board, kit #KSB When this option is present there is an additional The cuber drops ice in large sections. That ice will display panel in the area below the main control break up into random parts as it falls into the bin, board.

  • Page 18: Cleaning, Sanitation And Maintenance

    11. Mix a cleaning solution of 1 oz of ice machine filled. scale remover to 12 ounces of water. 6. Pour 8 ounces of Scotsman Clear 1 ice 12. Locate curtain, push in on edge of curtain by machine scale remover into the reservoir.
  • Page 19 Inspect Orifice Holes 1. Remove and discard all ice. Inspect Water Distributor 2. Mix a solution of 7 ounces of Scotsman Clear 1 14. Locate ice thickness sensor. Squeeze ice machine scale remover in 84 ounces of mounting legs together to release sensor.

  • Page 20: Air Cooled Condenser Filter

    C0322 through C1030 Air and Water Cooled User Manual Air cooled condenser filter 1. Pull air filter(s) forward from side panel. Air Filter 2. Wash the dust and grease off the filter. 3. Return it to its original position. Do not operate the machine without the filter in place except during cleaning.

  • Page 21: What To Do Before Calling For Service

    C0322 through C1030 Air and Water Cooled User Manual What to do before calling for service Reasons the machine might shut itself off: • Lack of water. • Freeze cycle takes too long. • Harvest cycle takes too long. •...
  • Page 22 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-533-6006 www.scotsman-ice.com 17-3083-01...

This manual is also suitable for:

C0522C0330C0530C0630C0830C1030
