Alaris Medical Systems MedSystem III Directions For Use Manual page 8

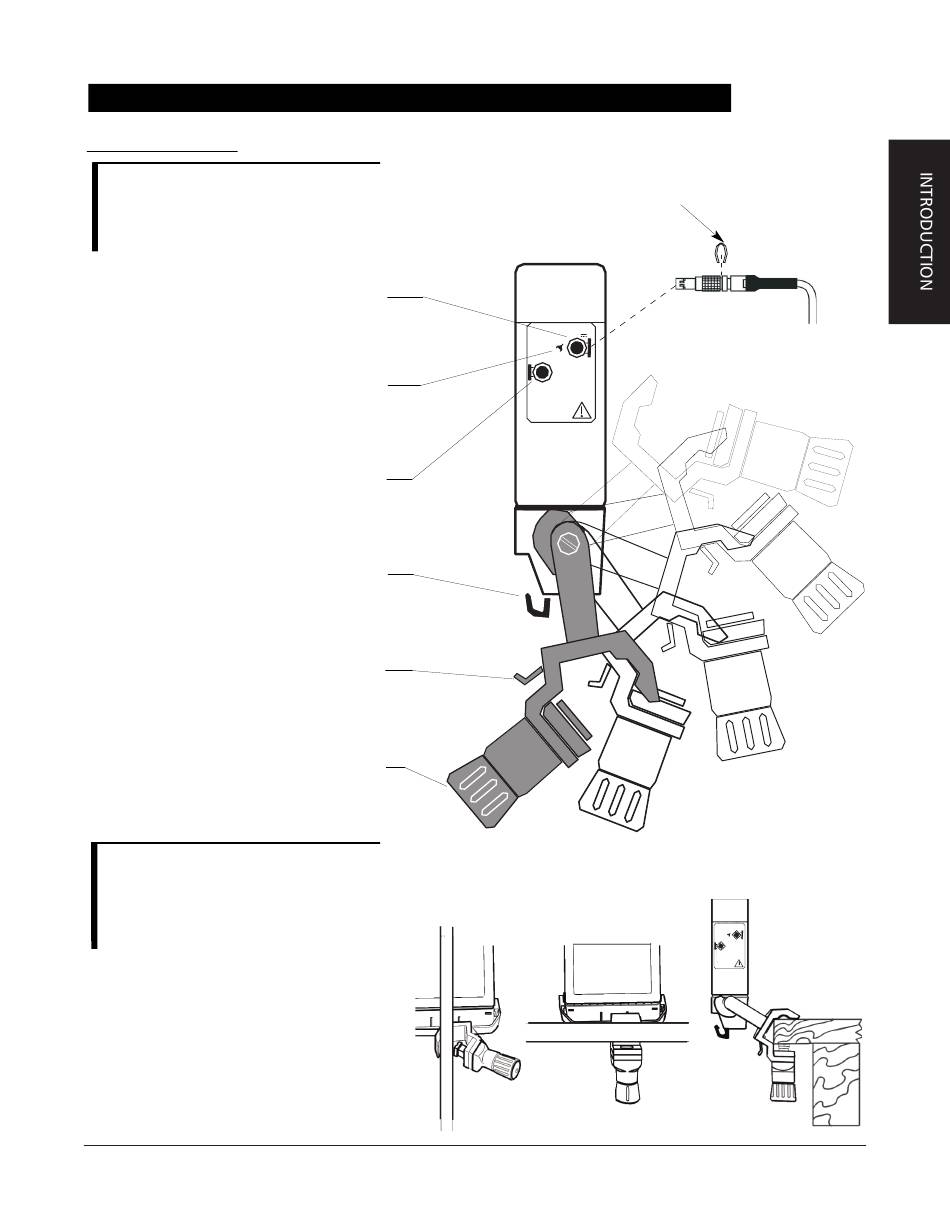

CONNECTOR PANEL
NOTE: When inserting or removing
connectors to the receptacles, avoid
excessive force or twisting. To remove
AC adapter from pump first remove clip
that is on connector.
External power receptacle connects with
Green light on indicates AC power is
connected; batteries are charging.
Communications line receptacle
connects with RS-232.
Container Hook
One hook on each side of the
Allows clamp to spin 360° and position
Adjustable Pole Clamp
Jaw with clutch feature, mounts pump
to a pole or bedside.
NOTE: The MedSystem III® instrument
is designed to function in any
orientation. However, the effectiveness
of the administration set air trap is
diminished when the instrument is in
other than vertical position.
Attaching Pole Clamp
To attach the pole clamp, position the
clamp jaw over the mounting surface
and turn the knob until the clamp is
tightened and the pump feels secure.
When the knob is as tight as possible,
continued turning will make it click and
spin freely without over-tightening.
System Components (Continued)
External Power
power cord.
Plug Symbol
COMM
instrument.
Rotating Latch
at every 90°.
m m o o v v e e c c l l i i p p f f r r o o m m c c o o n n n n e e c c t t o o r r
R R e e
b b e e f f o o r r e e r r e e m m o o v v i i n n g g A A C C a a d d a a p p t t e e r r
f f r r o o m m p p u u m m p p . .
EXTERNAL
POWER
6-9 V
COMM
AC Adapter Power Cord
120V/60 Hz three-pronged
grounded adapter with 4-pin
locking connector.
EXTERNAL
POWER
6-9 V
COMM
5
INTRODUCTION
