- Page 1 INOGENI TOGGLE User guide Version 1.1 5/20/21...
-
Page 2: Table Of Contents
Update RS232 commands section. Change « HOSTx » for « PCx ». CONTENTS Version history ................................1 Typical application ................................. 2 Device interfaces ................................3 Leds behavior ................................4 Operating modes ................................4 Specifications ................................. 5 Serial communication protocol ............................6 Settings..................................7 INOGENI Control App ..............................7 Support................................... 8... -
Page 3: Typical Application
TYPICAL APPLICATION Here is a typical connection diagram used for the TOGGLE device in a videoconferencing setup. -
Page 4: Device Interfaces

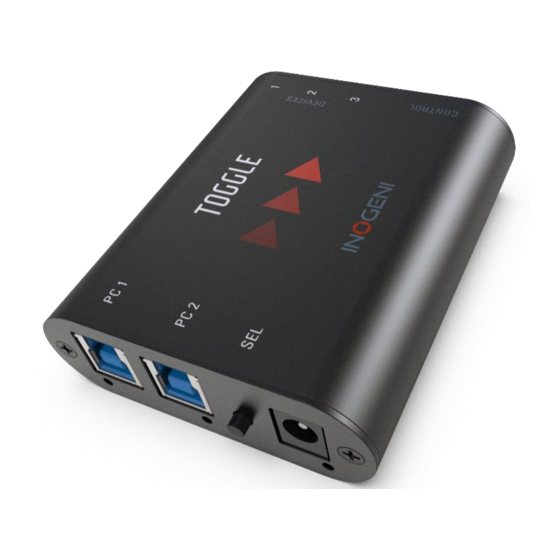

DEVICE INTERFACES Here are the devices interfaces. RS232 and GPIN interfaces 3 x USB-A ports for devices PC #1 USB-B port PC #2 USB-B port Push-button +12V power input PC #1 led indicator PC #2 led indicator Power indicator... -
Page 5: Leds Behavior
The manual mode will enable you to force a specific PC selection. Push-button action and remote control are also supported. These modes can be set through our INOGENI Control App or through the RS232 interface. The mode will be saved onboard the device. -
Page 6: Specifications
You can monitor current consumption through RS232 and our Control App. Software Compatible with any operating system Windows 7 and above Operating systems macOS 10.0 and above Linux Upgrade Field upgradable through our INOGENI Control App. Automatic, manual or remote control. Control Current configuration is saved onboard. -
Page 7: Serial Communication Protocol
SERIAL COMMUNICATION PROTOCOL Here is the complete list of commands provided through the serial connection: Pinout is indicated on the enclosure. Baud rate: 9600 Commands Arguments Return Function description “FW_VER:X.Y” where X = MAJOR and Get firmware version. Y = MINOR version. Set/unset button LOCK SLCK GLCK... -
Page 8: Settings
- The “DEF” command restores the default settings of the device. It will take effect immediately. The factory default settings are: 1) No events. 2) Automatic mode for PCx selection. INOGENI CONTROL APP You can use our Control App to monitor firmware information, upgrade your unit using the latest firmware and configure your unit. -
Page 9: Support
© Copyright 2021 by INOGENI INC. All Rights Reserved. INOGENI name and logo are trademarks or registered trademark of INOGENI. Use of this product is subject to the terms and conditions of the license and limited warranty in effect at the time of purchase. Product specifications can change without notice.
