Ingersoll-Rand AVC Series Maintenance Information

Ingersoll-Rand AVC Series Maintenance Information

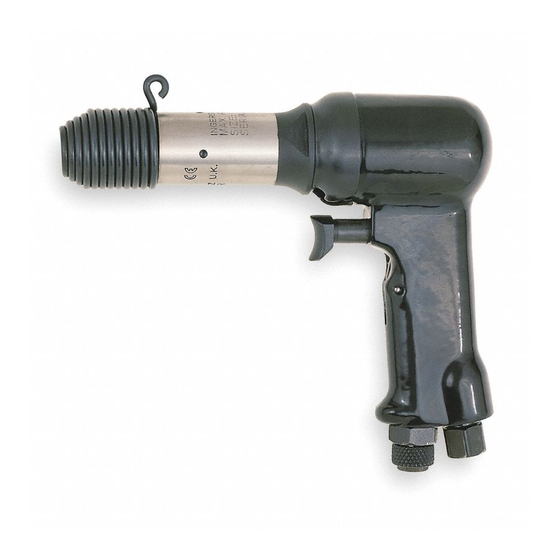

Air riveter
Hide thumbs Also See for AVC Series:

Advertisement

Quick Links

16605933
Edition 2
May 2014
Air Riveter
AVC Series
Maintenance Information
Save These Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVC Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ingersoll-Rand AVC Series

  • Page 1 16605933 Edition 2 May 2014 Air Riveter AVC Series Maintenance Information Save These Instructions...
  • Page 2: Product Safety Information

    Product Safety Information WARNING Failure to observe the following warnings, and to avoid these potentially hazardous situations, could result in death or serious • injury. • Read and understand this and all other supplied manuals before installing, operating, repairing, maintaining, changing accessories on, or working near this product.
  • Page 3 Assembly General Instructions An oversize Valve (2) must be lapped into the Valve Box. Use Grade 320 lapping compound and proceed as follows: Whenever grasping a tool or part in a vise, always use leather- Install the Valve on the No. 29189 or No. 29407 Valve Lapping covered or copper-covered vise jaws.
  • Page 4: Troubleshooting Guide

    Assembly of the Riveting Hammer Nozzle Replacement for AVC26 1. Clamp the Handle of the Riveting Hammer in leather–covered or 1. Do not remove the Nozzle (9), which is used only on Model copper–covered vise jaws with the barrel bore upward. AVC26, unless the Nozzle must be replaced.
  • Page 5 Notes:...
  • Page 6 Notes:...
  • Page 7 Notes:...
  • Page 8 ingersollrandproducts.com © 2014 Ingersoll Rand...
