Bittium Tough Mobile Quick Start Manual

Hide thumbs Also See for Tough Mobile:
Table of Contents

Advertisement

Quick Links

Download this manual
Bittium
Tough Mobile
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tough Mobile and is the answer not in the manual?

Questions and answers

Related Manuals for Bittium Tough Mobile

Summary of Contents for Bittium Tough Mobile

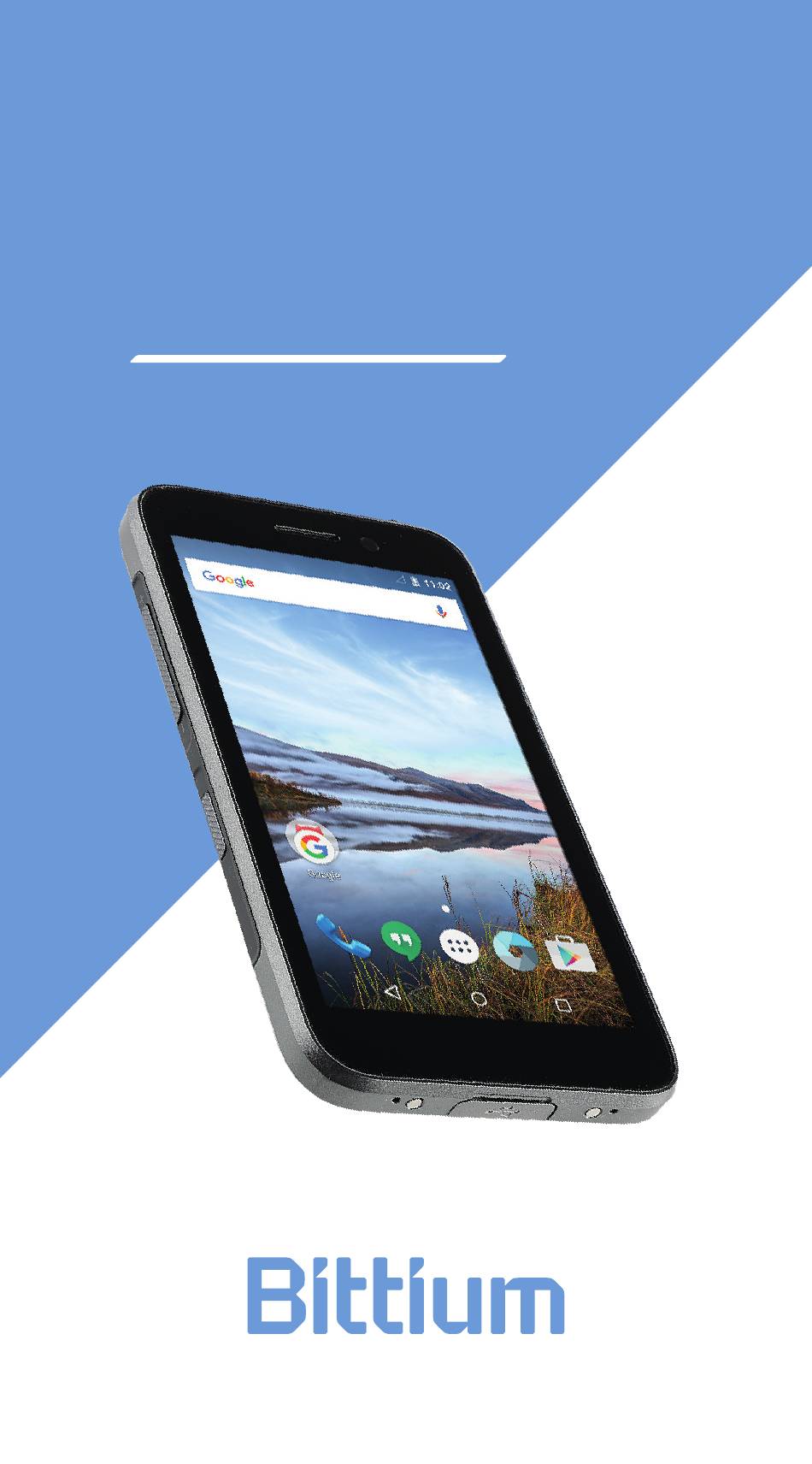

  • Page 1 Bittium Tough Mobile Quick Start Guide...

  • Page 2: Device At A Glance

    Earpiece and auxiliary microphone Headset and protective cover Front camera Back camera Loudspeakers Flash LED Volume key Programmable key Battery cover Battery charging connectors USB 3.0 port and protective cover Main microphones Noise cancellation microphone Bittium Tough Mobile Quick Start Guide...
  • Page 3 Bittium Tough Mobile Quick Start Guide...

  • Page 4: Box Contents

    The ambient light sensor and proximity sensor are located next to the camera on the front of Tough Mobile. The micro USB 3.0 port is located on the bottom of Tough Mobile. Please read this quick guide carefully fore us ing the device.

  • Page 5: Getting Started

    OFF before removing the bat- tery and inserting SIM card(s). Getting started To start using Bittium Tough Mobile first remove the battery cover and insert the SIM card(s). To open Bittium Tough Mobile battery cover insert the plastic wedge to the slot between the battery cover and the body at the lower left.
  • Page 6 Pry the cover carefully open by sliding the wedge along the side (1) and then along the bottom (2). Cover should “pop-up” with a moderate force. Visit www.bittium.com/BittiumToughMobile for a video on how to remove and attach the battery cover. Bittium Tough Mobile Quick Start Guide...
  • Page 7 Use only micro-SIM cards in Bittium Tough Mobile. Insert your primary micro SIM card in the SIM card slot 1. If you have a secondary micro SIM card, insert it into SIM card slot 2.
  • Page 8 Verify that all notches are closed on all sides by squeezing around the battery cover perimeter with your thumbs. Prior to using Bittium Tough Mobile the battery should be fully charged using the charger and the USB cable provided in the sales package.
  • Page 9 Security wizard Bittium Tough Mobile is equipped with a Security Wizard that is launched during the initial power up of the device. Security Wizard is used to set up a number of different device settings. Follow the on- screen instructions by first setting a screen lock code.

  • Page 10: Lock Screen

    Lock screen Switching off the display locks Bittium Tough Mo- bile. Bittium Tough Mobile also locks after a peri- od of inactivity. Switch the display off by pressing the power key once. The display can be switched on by pressing the power key or programmable key.
  • Page 11 To return back to the lock screen, tap the arrow near the top left corner. Encrypted email Bittium Tough Mobile supports email encryption using OpenPGP. PGP-related key management, encryption, decryption and key signing are per- formed using the OpenKeyChain application.
  • Page 12 To set up the email encryption, the security keys must be created or imported for the cipher. NOTE: Bittium Tough Mobile does not have the OpenKeyChain application pre-installed. If you are using a GMS (Google Mobile Services) variant, download the application from Google Play and install it by tapping the OpenKeyChain icon in the application grid and follow the instructions.

  • Page 13: Software Update

    2. Tap ‘Check Now’ to check if an update is avail- able. You can also set the schedule for OTA (over-the- air) updates by tapping Check OTA updates. Op- tions are: Disabled, Daily, Weekly and Monthly. Bittium Tough Mobile Quick Start Guide...

  • Page 14: Erasing User Data

    Erasing user data Bittium Tough Mobile has a Fast Wipe function for erasing all of the device’s user data fast and easily. To activate Fast Wipe, open the Quick Settings panel by swiping down once with 2 fingers when device screen is unlocked or once with one finger when device screen is locked.

  • Page 15: Device Encryption

    SafeMove use, the device must be provisioned again after the wipe. Device encryption Bittium Tough Mobile supports file system en- cryption for both the device internal flash memo- ry and a micro-SD card. Internal flash memory is encrypted by default.

  • Page 16: Programmable Key

    • Select active SIM card (SIM card 1 or SIM card 2). • Launch camera application. • Launch a defined application. To access Programmable Key configuration se- lect “Accessibility” from the device Settings menu and “Multipurpose button configuration”. Bittium Tough Mobile Quick Start Guide...

  • Page 17: In Case Of Emergency

    (>3 seconds). Select ‘In case of emergency’ in the Accessibility menu. Switch on the function. Add the contact number you want to call in case of emergency. Tap the ‘check’ mark. Bittium Tough Mobile Quick Start Guide...
  • Page 18 Application permission firewall With Bittium Tough Mobile you can restrict access permissions of applications to phone data. This allows you to control the data which applications may access. Change the application permissions via the Security menu. Bittium Tough Mobile Quick Start Guide...

  • Page 19: Tamper Detection

    Tamper Detection is also triggered when Bittium Tough Mobile battery has drained and the phone has lost all power. Once Bittium Tough Mobile has been re-charged and powered up again, the Se- curity Wizard will ask the user whether the device should be shut down or the Tamper Detection warning should be ignored.
  • Page 20 Bittium Tough Mobile has a micro USB3.0 con- nector and it is backward compatible with micro USB2.0. You can use the standards-compliant micro USB2.0 devices with Bittium Tough Mobile. Connect the micro USB2.0 connector to the wider slot of the micro USB3.0 connector.
  • Page 21 Always create a backup of data you want to keep (such as contacts and calendar notes) before sending your device for service. Bittium Tough Mobile Quick Start Guide...

  • Page 22: Important Customer Information

    Important customer information Bittium Tough Mobile is a wireless device, con- taining a radio transmitter and receiver which emit radio frequency energy during its use. Most modern electronic equipment is shielded from RF signals. However, certain electronic equip- ment may not be shielded against the radio sig- nals from a wireless phone.
  • Page 23 Bittium in Bittium Tough Mobile. Do not short- circuit the battery. Do not use the battery with a charging system which has not been approved by Bittium. Turn Bittium Tough Mobile OFF in any facility where posted notices so require.

  • Page 24: Limited Warranty

    Bittium to service this Product. For more info on Bittium Tough Mobile Ingress Protection see www.bittium.com/BittiumToughMobile. To obtain warranty service, you must receive a Return Authorization from Bittium and ship the Product, at your expense, to Bittium’s authorized...
  • Page 25 Notes Bittium Tough Mobile Quick Start Guide...
  • Page 26 Bittium Tough Mobile Quick Start Guide...
  • Page 27 Bittium Tough Mobile Quick Start Guide...
  • Page 28 Bittium is prohibited. Notice Bittium reserves the right to change its products and the information in this document without no- tice due to continuous improvement and devel- opment. Bittium makes no warranty of any kind...
