DynaMetric TLP-107 Instructions

Telephone recorder patch with beeps

Instructions

TLP-107 Telephone Recorder Patch with Beeps

P/N 44160-7 C Series

The TLP-107 provides an analog audio connection to loggers (central recorders) from

telephones that have modular connected handsets or headsets. The TLP-107 provides clear

recording of both sides of conversations from almost all types of telephones whether they are

the new digital phones or the older analog types.

The TLP-107 injects a short "beep" at approximately 15 second intervals onto the phone line.

The "beep" is audible in the earphones of all phones connected to the conversation and is

superimposed on a clear recording of both sides of the conversation. The "beep" may be

stopped by removing the power cord plug.

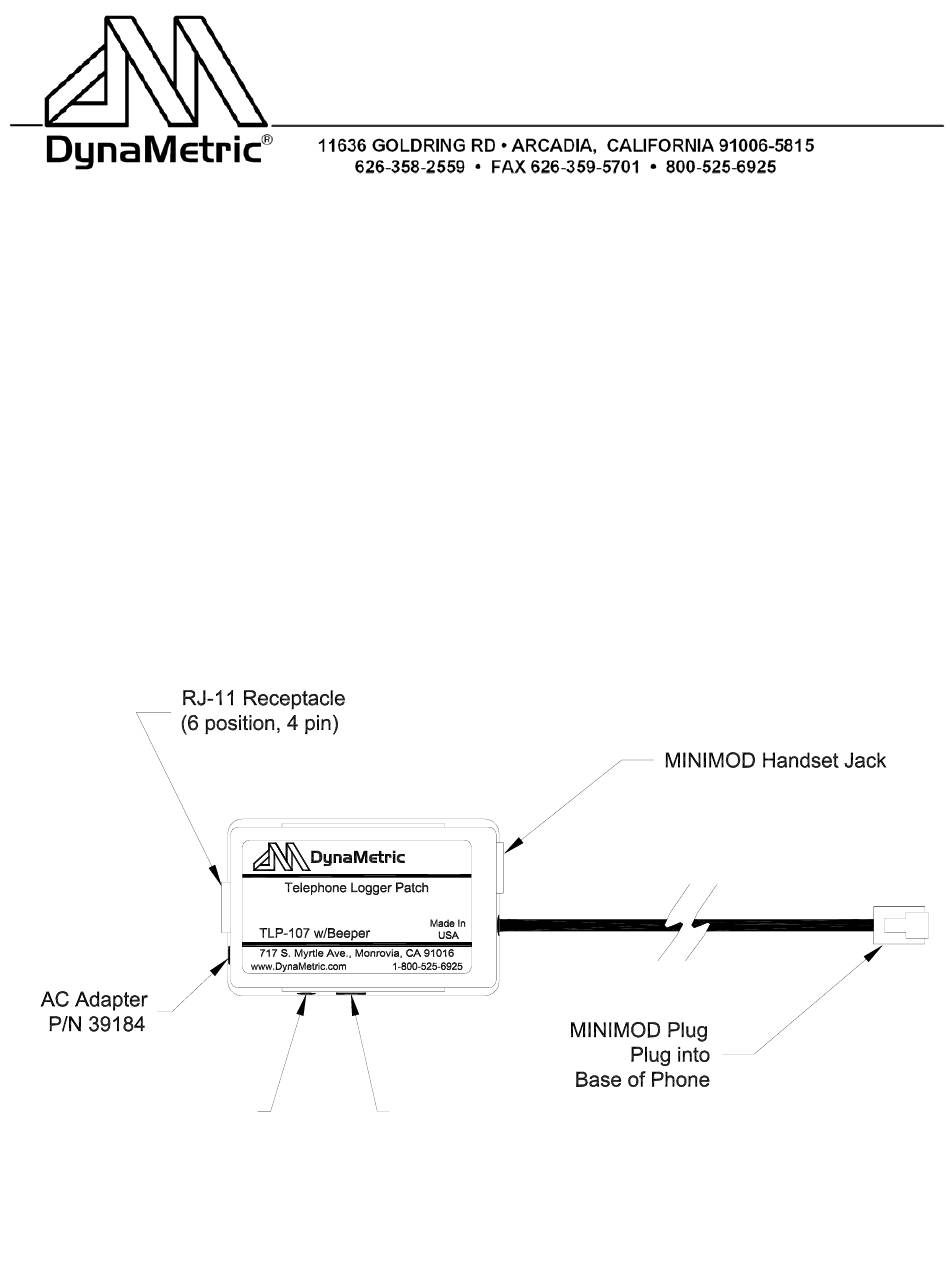

The beep volume is adjustable using a small

screwdriver through the hole in the bottom of the unit as shown below.

Beep Volume Adjust

Polarity Switch

(Factory Set)

(Hole in Bottom)

FOR LEGAL USE ONLY

3-20-08

www.DynaMetric.com

Page 1 of 2

Table of Contents

Do you have a question about the TLP-107 and is the answer not in the manual?

Page 1 The TLP-107 injects a short "beep" at approximately 15 second intervals onto the phone line. The "beep" is audible in the earphones of all phones connected to the conversation and is superimposed on a clear recording of both sides of the conversation.
Page 2 To install the unit, disconnect the handset coil cord from the base of the telephone and replace it with the cable from the TLP-107. Connect the handset coil cord into the mini-mod jack on the TLP-107. Connect a line cord from the logger into the RJ-11 jack on the TLP-107. The unit may be mounted at a convenient location on the base of the telephone utilizing the adhesive pad.
